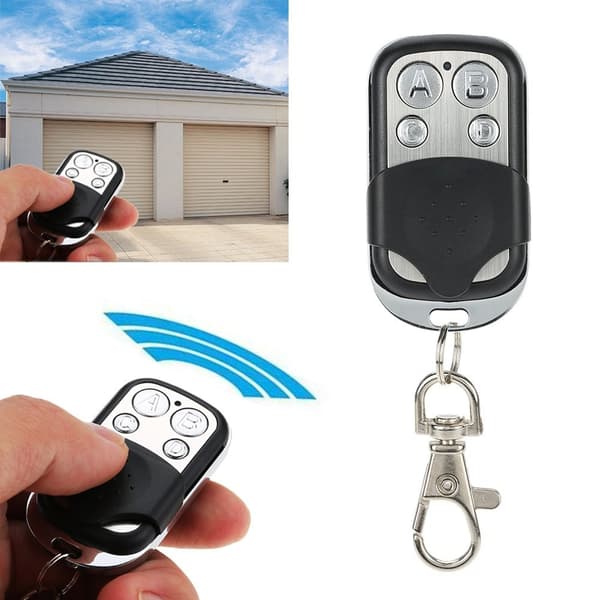

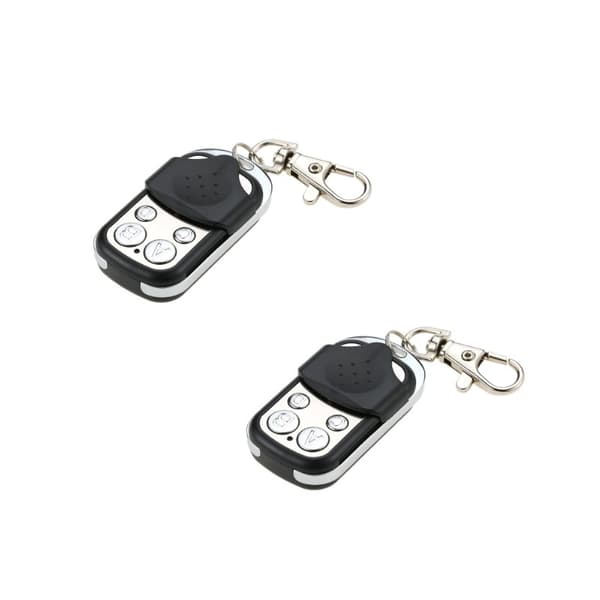

Code cloner for an extra spare remote control: RF code cloner in remote control design to clone your old remote controls' codes. Perfect for transferring/copying the code for garage doors, automatic gates, security systems, and household equipment.

Always a backup close at hand: Copy the functions from your original remote control with this 4-channel RF duplicator with learning functions, so you will always have a backup or extra garage door opener at hand.

Perfect for the garage door: Compatible with a fixed frequency of 433 MHz, which is the frequency that most garage door openers use. Compatible with the following chipsets: 2260 (all manufacturers) 2262 (all manufacturers) PT2264, 5326 (all manufacturers) SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918 series, 527 (all manufacturers) 1527 (all manufacturers) 2240 (all manufacturers) HCS101, HCS200 HCS201 (parts of the code) HCS300 HCS301 (parts of the code) Parts of single-chip.

NOTE: This model is not suitable for rolling code. In that case, you need a different model. Cannot copy the car's alarm remote (for security reasons).

Specification:

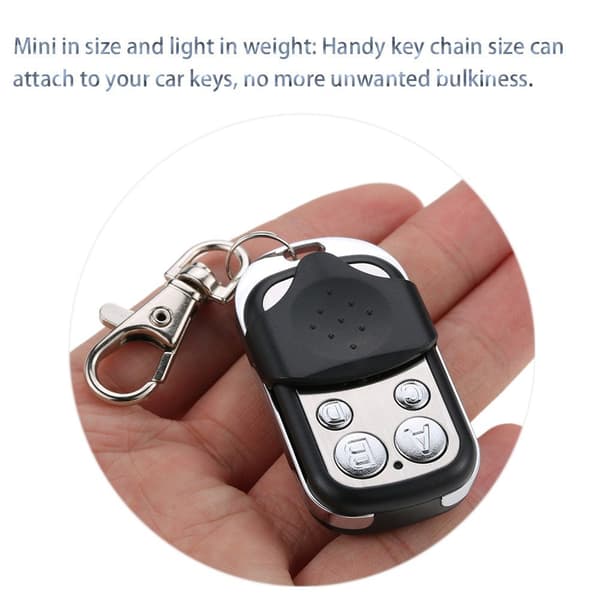

Signal transmission speed: 50-60 KHz Voltage: 12 V Current: 10 mA Frequency: 433 MHz Signal transmission power: 10-12 mW Signal transmission distance: Up to 50 m in open area Color: Black/silver Battery: 2V27A battery (included) Size: 6x4x1.2 cm Weight: 28 g

Package includes:

Universal code cloner - remote control

How to copy:

Step 1: Remove the old code from the duplicator

1. Continuously press buttons A and B until the LED light flashes

2. Release button B (continue pressing button A) and slowly press button B 3 times, LED flashes

3. Release button A, code removal is complete

Step 2: Copy code from the original transmitter

1. Place the duplicator as close as possible to the original transmitter.

2. Press and hold button A on the original transmitter, press and hold button A on the duplicator, until you see the duplicator's LED flash.

3. Release both buttons, code copying is complete. Copy the next button in the same way.

Reset function:

Hold down buttons C and D for 3 seconds, LED flashes, all buttons return to the last copied codes.

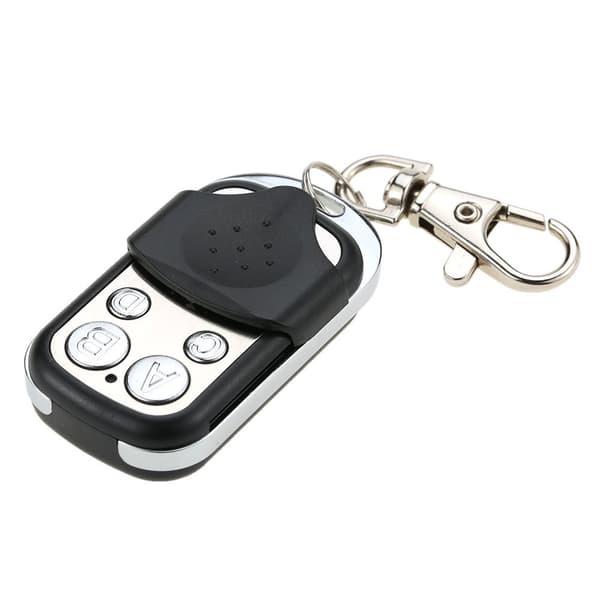

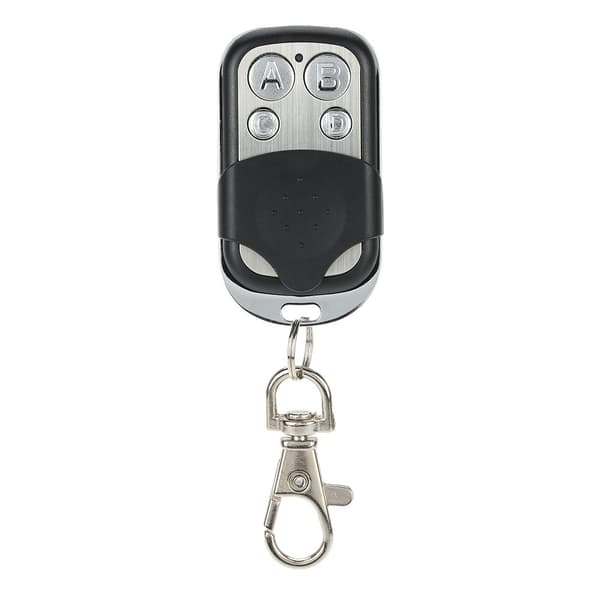

• RF code cloner in compact remote control design
• Copies the code for garage doors, gates, etc.

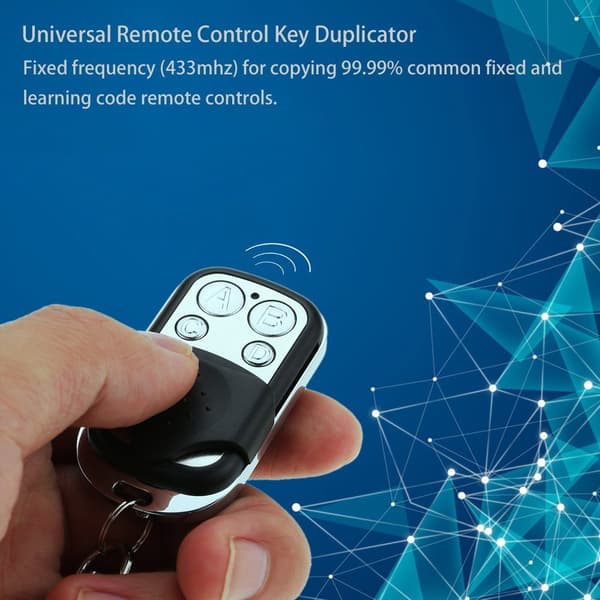

• Compatible with fixed frequency of 433 MHz

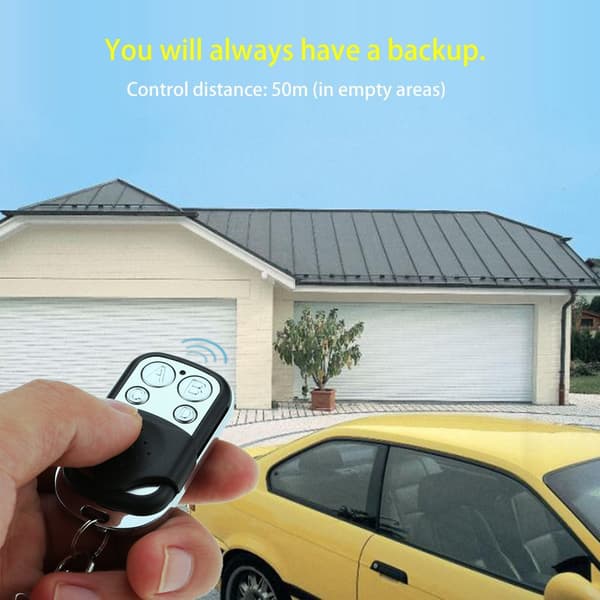

• Signal transmission up to 50 m
