Working voltage: DC3.5V-DC12V (Wide working voltage range DC3.7V 4.5V 5V 6V 9V 12V are all ok) (it can work with DC power / Rechargeable lithium battery / Rechargeable)
Maximum load: 1A (better with load less than 700ma)
Quiescent current: 5ma
Relay working current: 20-30ma

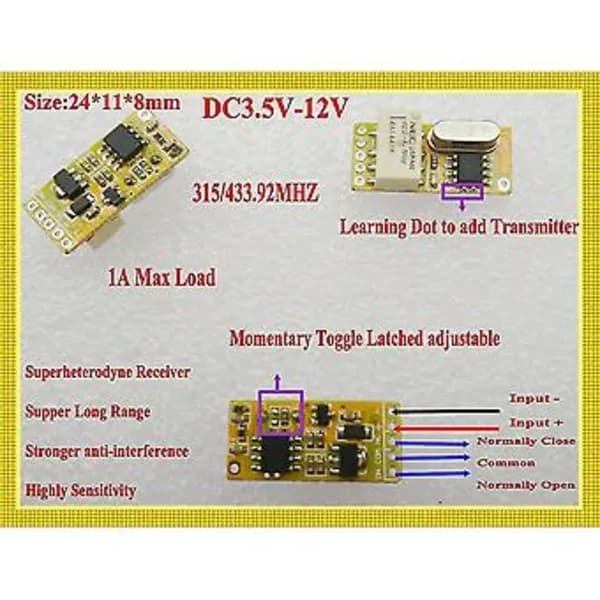

Size: 25 x 11 x 8mm
Working frequency: 433MHZ

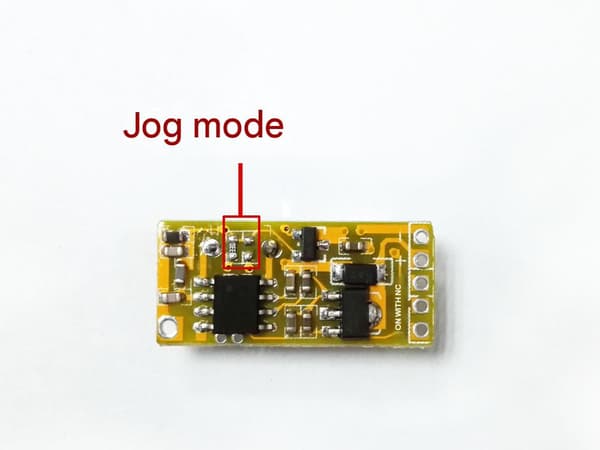

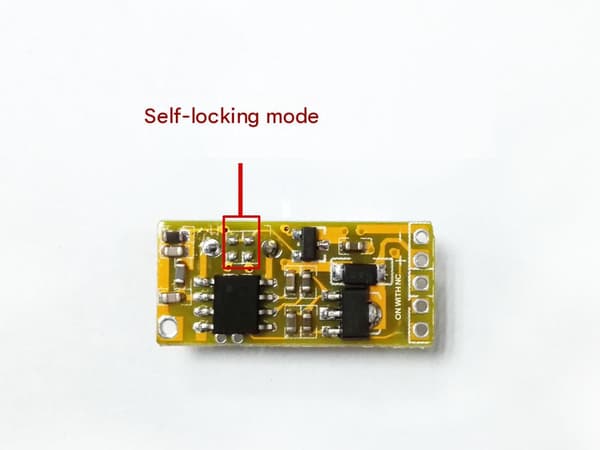

Working mode: jogging, self-locking, solder joint switching
Working mode: Momentary toggle optional by leaving message
Coding type: Learning point to add transmitter

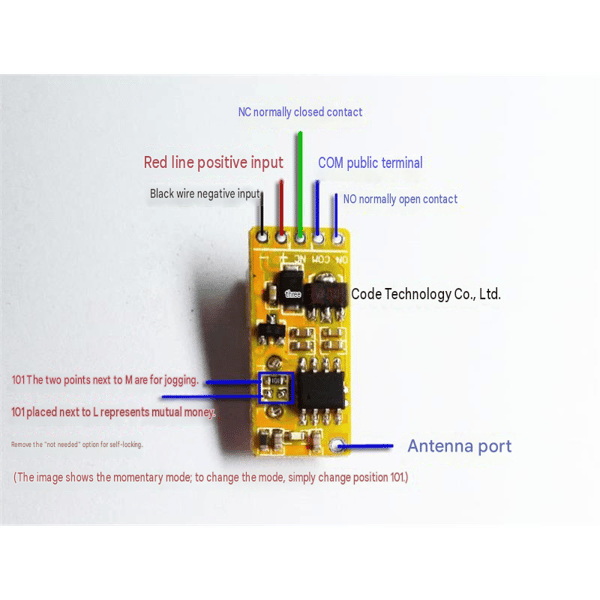

Normally open port (NO) Common port () Normally closed port (NC)

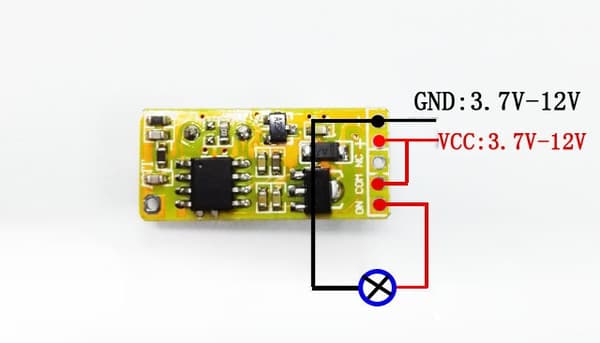

Input DC3.5V-DC12V Output 0V Switching value use Relay NO NC
Momentary----- Press and hold---ON, Release----OFF
Toggle-------Press once ----ON. Press again ----OFF

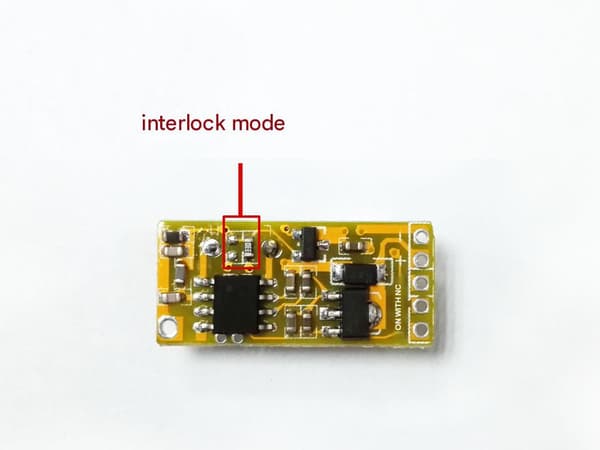

Latched--------Press A ----ON, Press B-----OFF
Material: PCB+plastic
Color: as shown
Package Contents:

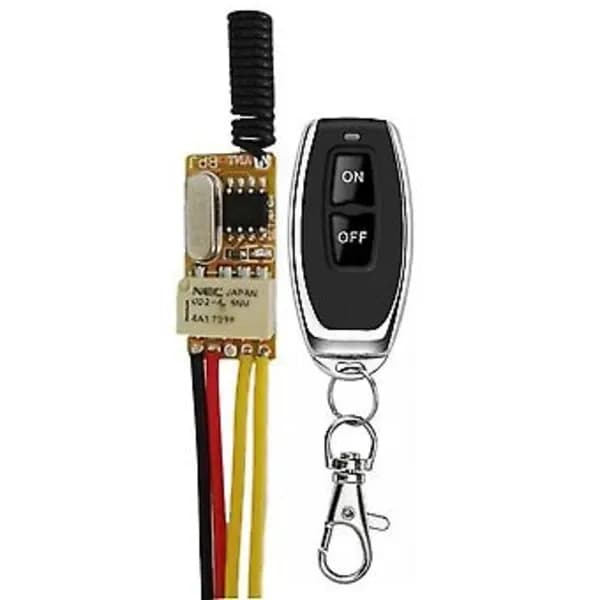

1 x Receiver
1 x Remote Control (2 CR2016 button batteries not included)
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
