Large Infrared Motion Sensor 220V-240V 180 Degree Angle White

Features: * Convenient and practical: The infrared motion sensor is an energy-saving automatic light switch, it uses a high-sensitivity detector, integrated circuit and SMT. With a wide detection range consisting of up and down, left and right service fields. (Horizontal 180°, Vertical 60°, Max 12m detection distance) *

Working principle: It uses infrared rays from human movement as control signal sources; as soon as one enters the detection field, it immediately triggers the controlled load. * Identifies day and night automatically: The PIR sensor's ambient light can be adjusted as desired: when you turn it to SUN(max) it works day and night, when you turn it to MOON(min) it works in ambient light less than 3LUX. For the setting, see the test method. *

Adjustable timeout: It can be set according to your wishes, the minimum is 5 seconds, the maximum is 10 minutes. * Wide application: it is widely used in smart lighting, easy installation on doors, hallways, elevators, balconies, bathrooms, mirrors, cabinets, cupboards, warehouses, underfloors, garages etc. Features: Power: 220V~240V/ AC (50Hz/ 60Hz) Power: 0.45W (operation), 0.1W (static) Rated power: 1200W (incandescent lamp), 300W (energy lamp)

Time delay: 5s-10min (adjustable with LUX knob)

Ambient light: 3LUX (night) -2000LUX (adjustable with LUX knob) LUX facing the sun, detects day and night, LUX facing the moon, detects only at night Detection distance: 12±2m Detection range: 180° Detection speed: 0.6~1.5m/s Installation height: 1.8m ~ 4.5m

Protection level: IP44 (suitable for outdoor and indoor use)

Color: white, black optional

Working temperature: -20 ~ + 40 degrees

Working humidity: 93% relative humidity

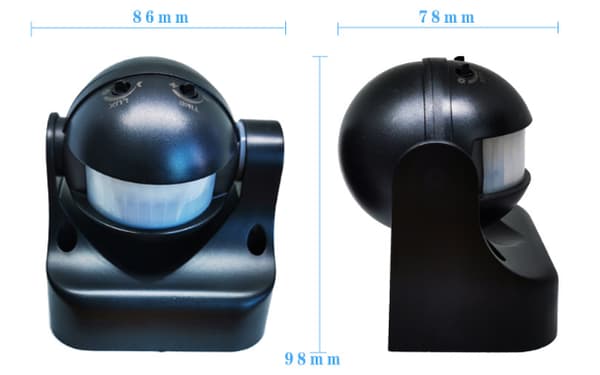

Item size: 87mm*62mm*100mm (L*W*H)

Item weight: 116g / 4.1oz

Package information:

Package size: approx. 10.6 * 9.2 * 7.6 cm / 4.2 * 3.6 * 3 inches

Package weight: approx. 156g / 5.5oz

Package list: 1 * PIR Infrared motion sensor 1 * Mounting screws 1 * User manual (English)
