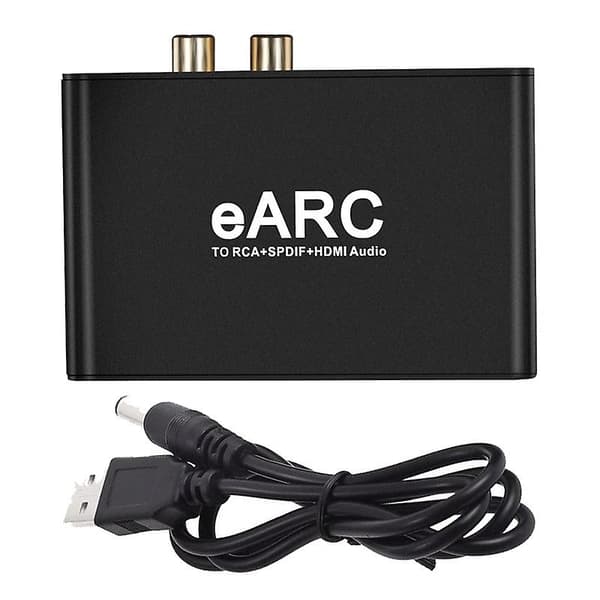

EARC /ARC Audio Converter Adapter ARC Audio Return HD 7.1 Channel 3.5mm Jack

Product Introduction:

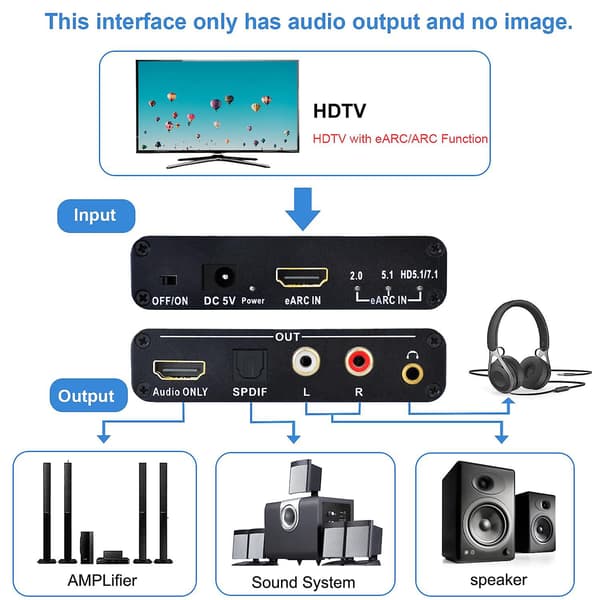

This product is designed to upgrade amplifiers or soundbars that do not support eARC function to connect to TVs that support eARC function, allowing them to obtain high-definition audio through the TV's eARC channel.

It can also connect the audio signal from an eARC-enabled TV to an amplifier or headphones via the optical and analog stereo interfaces of this eARC audio converter.

This eARC audio converter is also compatible with TVs that have ARC function.

Features:

Supports eARC and ARC inputs

HDMI-compatible, optical, RCA, and 3.5mm headphone outputs (HDMI-compatible only transmits audio signals and no images)

HDMI-compatible output supports up to HD 5.1 and HD 7.1 channels

Optical interface supports up to 5.1 channels

Supports transmission of 24bit /192KHz audio sampling rate

RCA and 3.5mm headphone output volume can be controlled by TV remote control (CEC)

Supports input audio channel indicator lights

Specifications:

Input interface: eARC /ARC

HDMI-compatible output version: 1.4

HDMI-compatible output resolution: 720P (HDMI only transmits audio signals and no images)

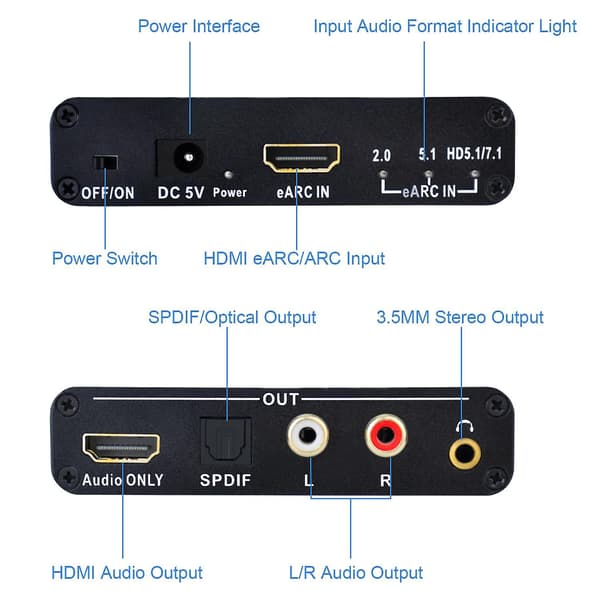

Output interface: HDMI-compatible 1, optical 1, RCA 2, 3.5mm 1

Supported audio formats: PCM, AC3, DTS, DD+, DTS-HD Master audio, DOLBY True HD

Power interface: DC5.5

Power voltage and power consumption: DC5V /300mA

Enclosure material: Aluminum alloy

Color: Black

Operating temperature: -10~+55 ℃

Storage temperature: -20~+60 ℃

Operating humidity: 10-90%RH (non-condensing)

Storage humidity: 5-95%RH (non-condensing)

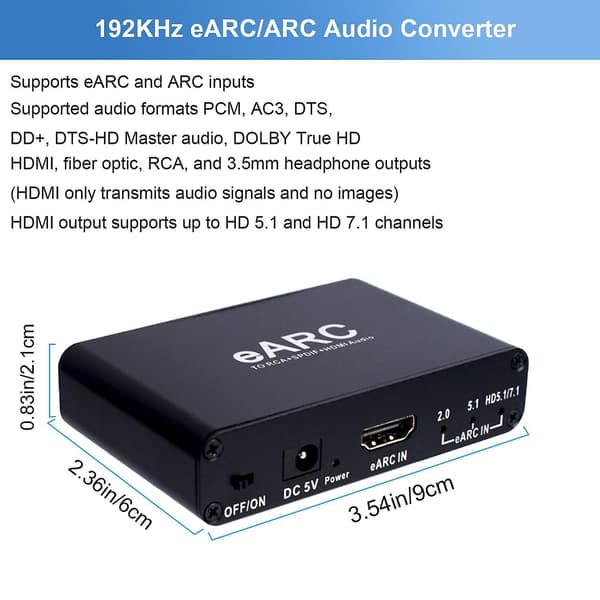

Product size: 90*65*21 (mm)

Weight: 90g

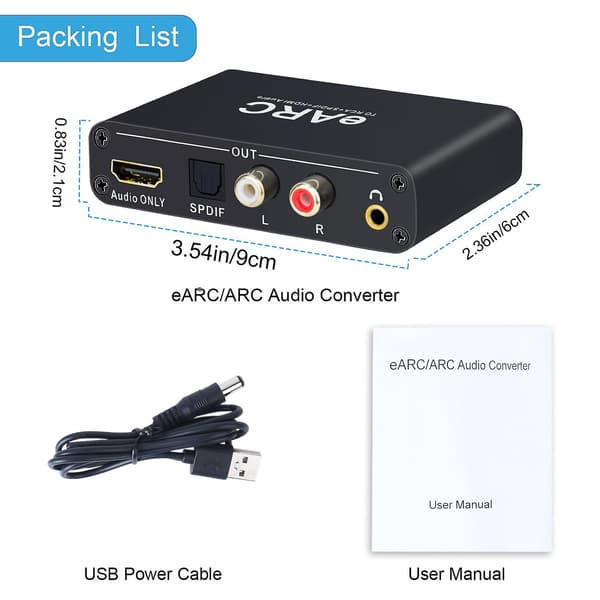

Package includes:

1*Converter

1*USB power cable

1*User manual

Note:

Please allow 0-1cm error due to manual measurement. Please make sure you do not mind before you bid.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
