Product
New and sealed Intel I226-V M.2 A+E 2.5GbE Ethernet NIC Card. The NIC interface supports Multi-Gig speeds up to 2.5Gbps (2500Mbps).
The NIC card is small and can fit in many mini-PCs/micro-PCs - M.2 2230.

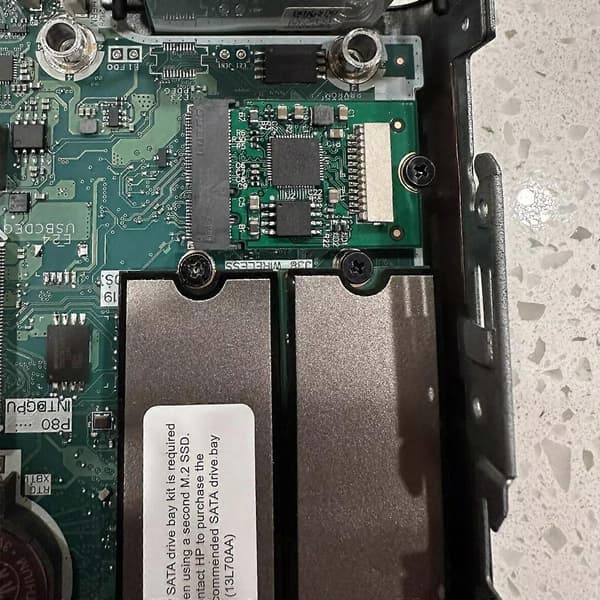

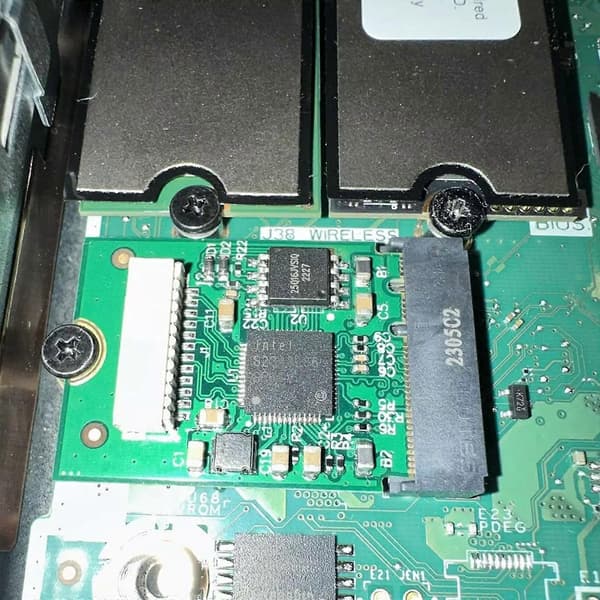

Personally tested in an HP Elite Mini 800 G9 - Windows 11, pfSense, and Proxmox Virtual Environments.
Additional Information:
M.2 A+E key Intel I226 2.5GbE network card, featuring the advanced Intel I226-V high-performance network controller. This controller, equipped with a Base-T copper network interface, offers a compact, single-port solution for integrated multi-gigabit connectivity, supporting speeds up to 2.5Gbps. Compliant with IEEE802.3 Ethernet standards, it provides seamless compatibility for 2500BASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-TE connections. Additionally, it boasts compatibility with Intel vPro technology on specific Intel platforms. Engineered for versatility, this network card is ideal for use in mobile devices, desktop PCs, workstations, value servers, and industrial designs where space is limited.
Product Features:
* Compliant with PCI Express specification Revision 3.1(5GT/s)
* Compliant with M.2 Key A+E NGFF card Electromechanical specification
* Compliant with M.2 Key A/E (2230) card Electromechanical specification
* MDI(Copper) standard IEEE802.3 Ethernet interface up to 2.5Gb/s
* Compliant with single port 1GbE RJ45 port (copper)
* Compliant with MDI standard IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE application (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3)
* 3 Auto-negotiator
* 3x and IEEE802.3z-compliant flow control with software-controllable RX thresholds and TX pause frames
* Automatic cross-over detection function (MDI/MDI-X)
* IEEE 1588 Protocol and 802.1AS implementation
* Supports Time Sensitive Networking (TSN) Features
* Supports IEEE802.3az - Energy Efficient Ethernet (EEE)
* Full Wake-On-Lan support
* TCP/UDP, IPv4 checksum offloads (Rx/Tx)
* Transmit Segmentation offloading (TSO) (IPv4,IPv6)
* Supports packets up to 9.5KB Jumbo Frames Pictures are of actual item listed. Small screw not included.
