The product has never been used, the packaging was damaged during transport. Unopened, repacked in our warehouses, in perfect condition, warranty available.

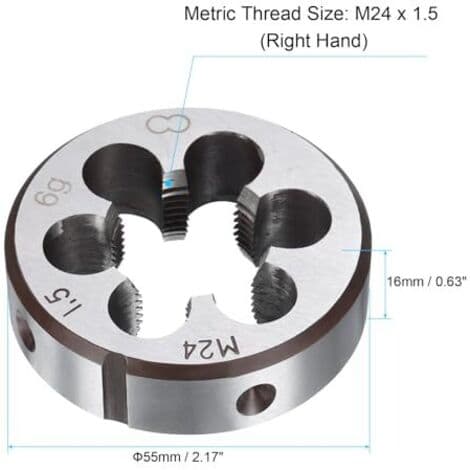

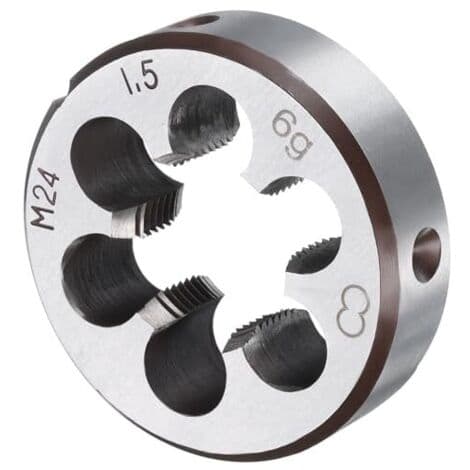

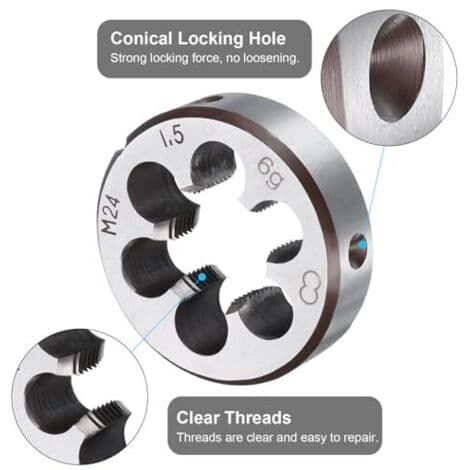

Round Thread Die: Metric thread: M24 x 1.5 (right hand thread); Outer diameter: 55 mm; Thickness: 16 mm; Accuracy class: 6g. Made of alloy steel, it offers high hardness and torque, good toughness and excellent wear resistance for a long service life. Applications: Allows for machining, correction or cleaning of external threads. Suitable for general threading in stainless steel, aluminum alloy, cast iron, copper, iron, plastic, etc. Ideal for maintenance and repair work on pipes, sheets and machinery. Features: Conical locking hole for a robust and secure locking mechanism.

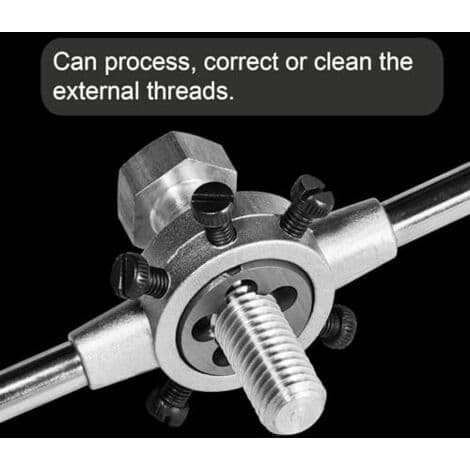

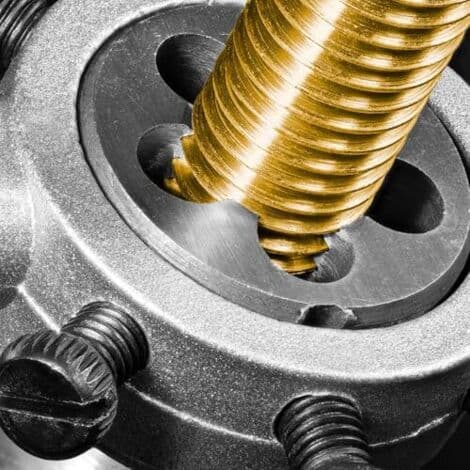

Perfect for re-threading existing threads in hard materials like metal and for creating new threads in soft materials like plastic. Grease-treated surface to prevent corrosion. The thread is clean and easy to repair. Easy to use: Align the positioning groove of the thread die with the set screw in the center of the thread die holder. Then insert the screw into the groove of the thread die and tighten it. The end of the shaft should be chamfered at 45° (1 x 45°), without the chamfer being too deep. Tips: Reverse the direction of rotation every 1/4 to 1/2 turn to facilitate chip evacuation. Apply a suitable cutting oil to the cutting edge of the thread die during threading. The shaft diameter should be smaller (by about 0.05 to 0.15 mm) than the nominal diameter of the desired thread. A too large diameter can make cutting difficult and damage the cutting edge of the thread die. Round Thread Die: Metric thread: M24 x 1.5 (right hand thread); Outer diameter: 55 mm; Thickness: 16 mm; Accuracy class: 6g. Made of alloy steel, it offers high hardness and torque, good toughness and excellent wear resistance for a long service life. Applications: Allows for machining, repair or cleaning of external threads. Suitable for general threading in stainless steel, aluminum alloy, cast iron, copper, iron, plastic, etc. Ideal for maintenance and repair work on pipes, sheets and machinery. Features: Conical locking hole for a robust and secure grip. Perfect for re-threading existing threads in hard materials like metal and for creating new threads in soft materials like plastic. Grease-treated surface to prevent corrosion. The thread is clean and easy to repair. Easy to use: The positioning groove of the thread die must be aligned with the set screw in the center of the thread die holder. Then insert the screw into the groove of the thread die and tighten it. The end of the shaft must be chamfered at 45° (1 x 45°), without the chamfer being too deep. Tips: It is necessary to reverse the direction of rotation every 1/4 to 1/2 turn to facilitate chip evacuation. Apply a suitable cutting oil to the cutting edge of the thread die during threading. The shaft diameter should be smaller (by about 0.05 to 0.15 mm) than the nominal diameter of the desired thread. A too large diameter can make cutting difficult and damage the cutting edge of the thread die.
