Features:

1. OE Number: The reference OE number of this magnetic pickup speed sensor is 3034572, which is molded and designed depending on the original data.
2. Fitment: The magnetic rotation speed sensor is a replacement for Cummins Engine K38, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, G38, KTA38GC CM558, QSK38 CM2150 K106.
3. High Performance: Significantly improves fuel efficiency, optimizes engine performance, better detection of engine oxygen content, more stable performance.
4. High Sensitivity and Efficiency: This magnetic pickup speed sensor is made through professional manufacturing, excellent sensitivity and high reliability.
5. Generator Accessory: This magnetic generator speed sensor has stable performance and is a good accessory for generator.

Specification:

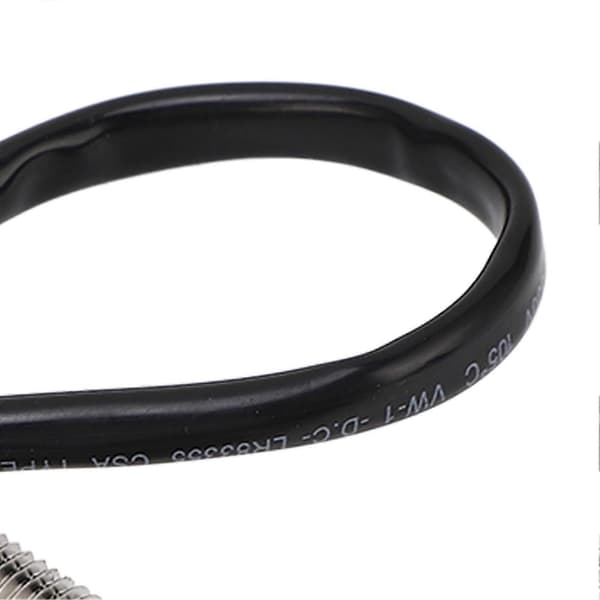

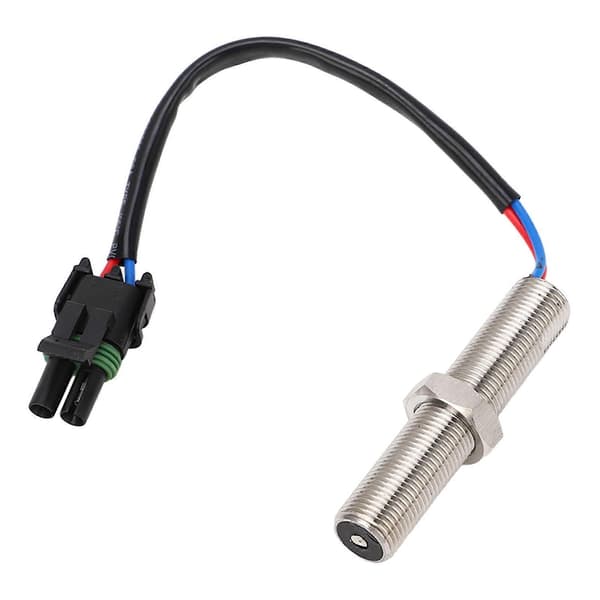

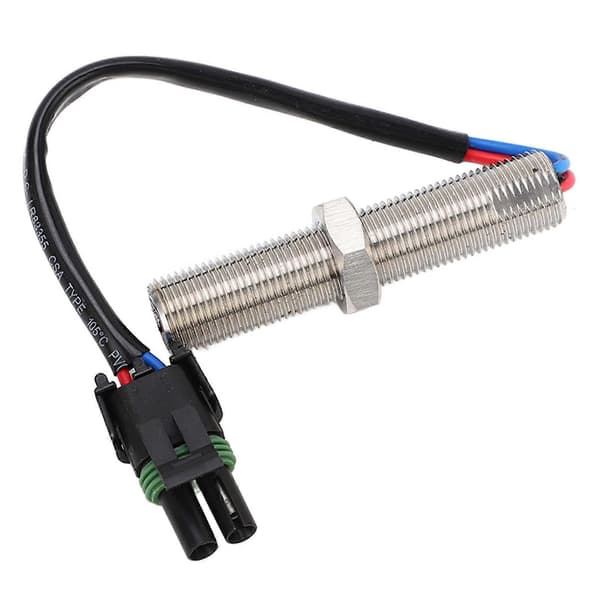

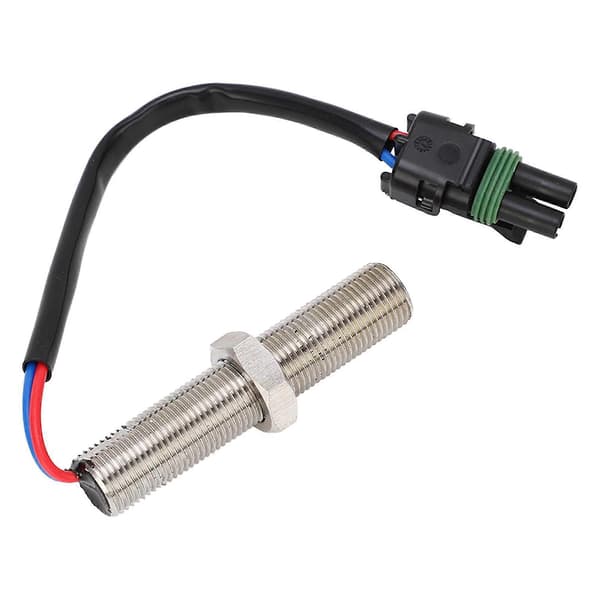

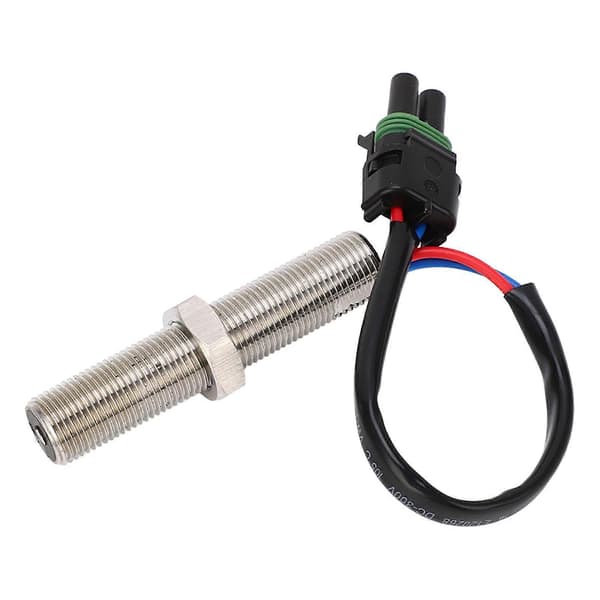

Item Type: Magnetic Pickup Speed Sensor r
OE Number: 3034572 r
r
Material: Aluminum alloy r
Fitment: r
Replacement for Cummins Engine K38, QSK38 CM2150 MCRS, QSK38 CM850 MCRS, G38, KTA38GC CM558, QSK38 CM2150 K106. r
r
Measuring Range: 50-5000Hz r
Inductance: 142MH+25% r
Thread Size: 5/8-18 UNF-2A r
Thread Drill Size: 37/64 inch r
Proximity to Gear Teeth: 0.028 minimum - 0.042 maximum (approx. 1/2 to 3/4 turn) r
Temperature Range: -55 to 105 r
Output at Cranking Speed: 1.5 volts AC minimum r
Maximum Output: 30 volts AC r
Coil Resistance: 300 ohms maximum

Note:
Please double check the part number of your item, matching information is for reference only. r
If you are unsure of the item, please contact us before buying to avoid unnecessary return, thanks!
