Automatic detection of K-Line/CAN, and the ability to bypass and force the preferred communication method.

Temporary bypass of immobilizer to enable flashing on the bench on ME7 systems.

Supports boot mode for ECUs with C167 and ST10 processors.

EEprom read/write functions for certain ECUs are included.

For MEDC17 TPROT level check without opening the ECU.

1. Install on Win7 system

2. Install the driver well and then open the software, otherwise the software cannot be opened. Make sure you use the driver from our CD, NOT the driver for other MPPS versions.

This module adds support for advanced functions for ECUs. MPPS covers a number of control units including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, for , for , for , for Delco, for , for Trionic and many others

Fitment:

For 6JF - Full read/write -type and EEprom via K-line.

For 8DF - Full read/write -type and EEprom via K-line.

For 8F2 - Full read/write -type and EEprom via K-line and CAN.

For 8F3 - Full read/write -type and EEprom via K-line and CAN.

For 8GM - Full read/write -type and EEprom via CAN.

For 8GS - Full read/write -type and EEprom via CAN.

For 5SF3 - Full read/write Flash and EEprom via CAN.

For 5SF3 - Full read/write EEprom via K-line.

For 5SF8 - Full read/write Flash and EEprom via K-line and CAN.

For 5SF9 - Full read/write Flash and EEprom via CAN.

Material: ABS plastic

Color: black

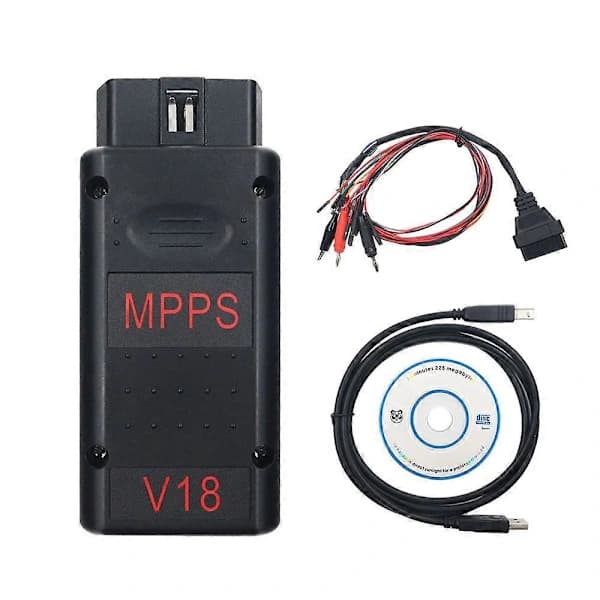

Package content:

1 * MPPS V18.12.3.8

1 * Breakout Tricore Cable

1 * Connection cable

1 * CD

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
