Suitable for a variety of coins
CPU process control and accurate scoring
precision/normal stall, coins smoother
Pulse effect available widths
Prevent phishing and other ways to cheat, cheat alarm
Suitable for water dispenser, vending machine or game machine.
Identification accuracy: 95%
Applicable coins:
Diameter: 15mm-29mm
Thickness: 1.8mm-3.0mm
Applicable to all types of coins and foreign currencies.
Atmospheric pressure: 80Kpa-106Kpa
Operating voltage: DC12V10%
Working current: 50mA
Moment maximum current: 350mA (less than 0.5S)
Humidity: 95%
Storage temperature: -20C-+85C
Operating temperature: -15C-+60C
Identification speed: 0.6 sec
Identification: 99.5%
Instructions:
1.Press the setting button (8), and then you will see E, (select) multiple systems), after that you can press the precise button or widen button to increase or decrease the numerical value. After setting, press the setting button to confirm.
2.Appears H (the number of samples for different values).
3.Appears P (the numerical value of the signal output for different values).
4.Appears F (the precision of different values).
5.By similarity in reasoning, the setting is completed with your selected. When E appears, turn off the power and it will open again.
Color: Silver+Black
material: plastic
Package Contents:

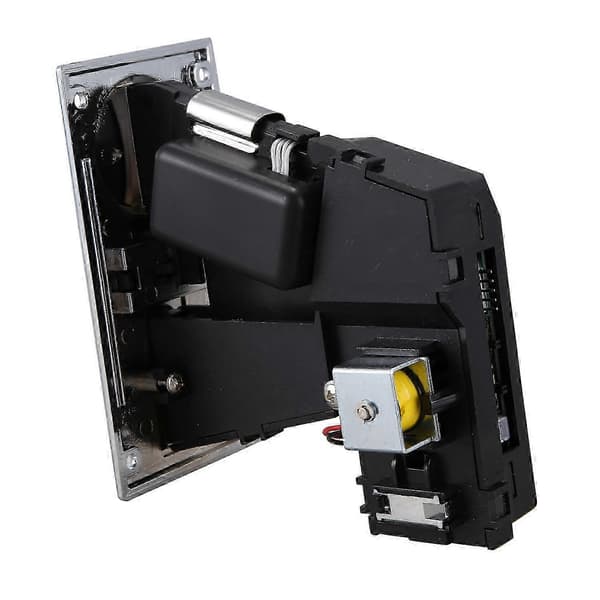

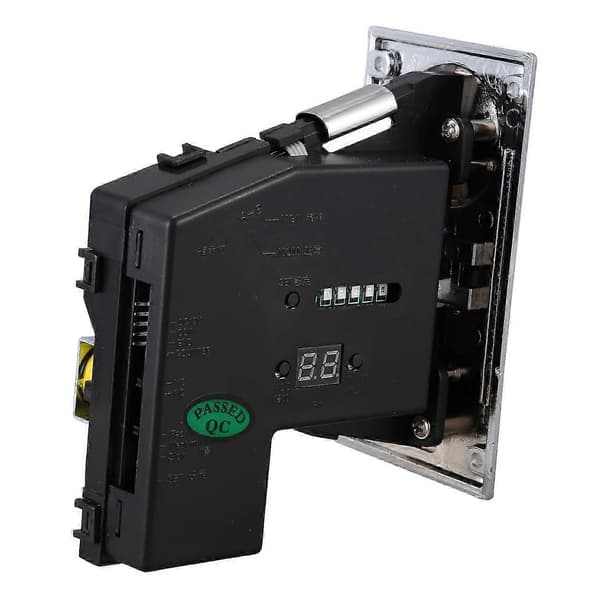

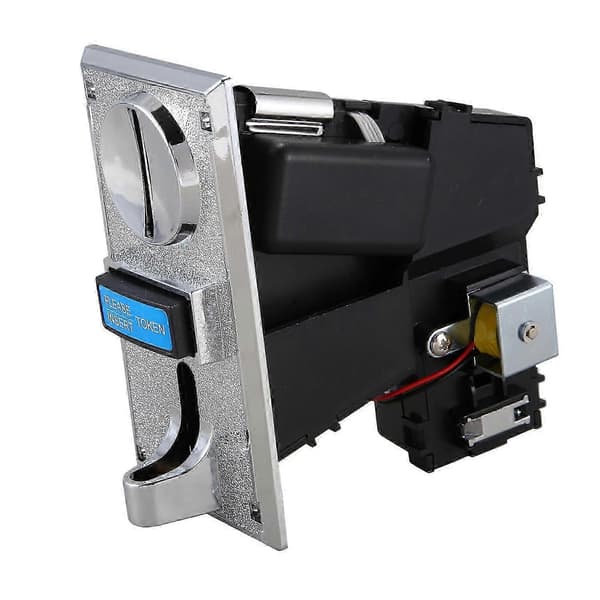

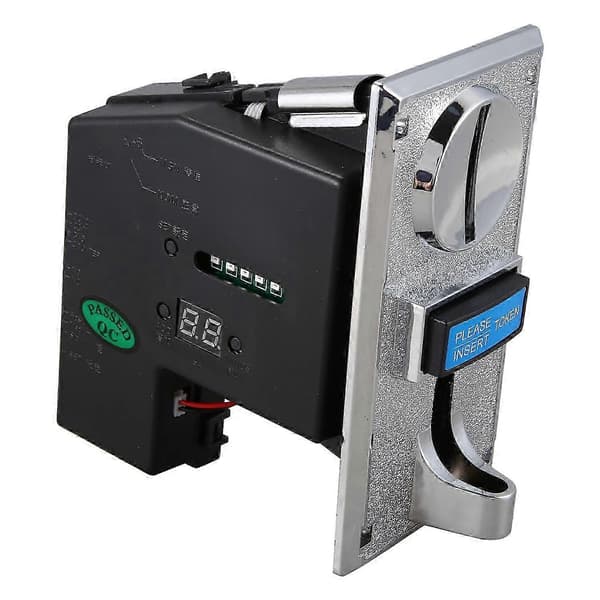

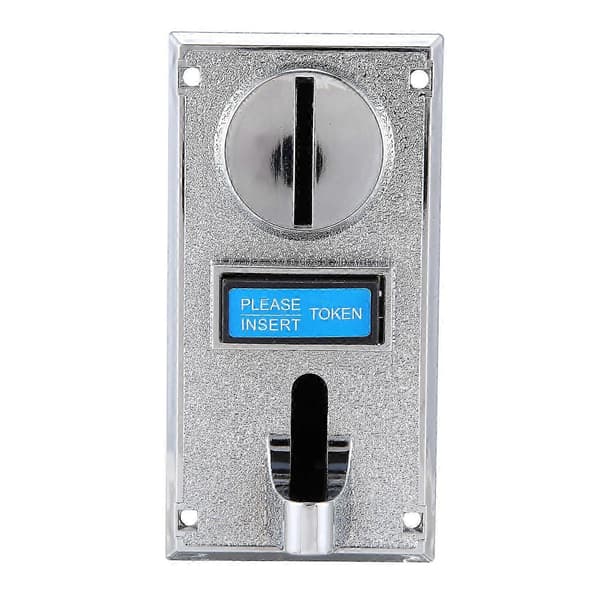

1* Coin Acceptor
1* Wiring
4* Screws
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
