brand new and high quality
Specifications:
1.Passive Infrared Sensor
2.Operating Voltage: DC5V ~ 24V
3.Load Current: 5A
4.Delay Time: 5~10 seconds, adjustable
5.Detection Range: 120
6.Detection Distance: <8M, adjustable
7.Size: 50 x 26 x 21.5mm / 1.96 x 1.02 x 0.84 \"
8.Trigger Way: Continuous triggering
9.Light Sensor: 10LUX
10.Color: Black
Features:
Automatic Induction: When people enter the induction area, it will output a voltage equal to the input voltage, after the delay time, it will output 0V; during the delay time if motion is detected, the delay time will be reset and a new delay time started
Under the illumination, every effective human activity will make the delay sensor switch extend a period automatically
Note:
1.Do not expose to direct sunlight or lighting, strong wind, near a heater or air conditioner
2.Do not fix it in a place where there are obstructing materials (e.g. glass, dense clothes) that IR cannot penetrate
3.Do not fix it in an environment of strong shock or vibration
4.The PIR sensor requires a \"warm-up time \" to work properly, about 10 seconds to 1 minute, depending on the delay time; during this time, the signal triggered by the module is not stable, after one minute,
it will be ready
5.The sensitivity of left-right direction is better than up-down direction, make sure the installation direction is left-right
Quantity:1pc

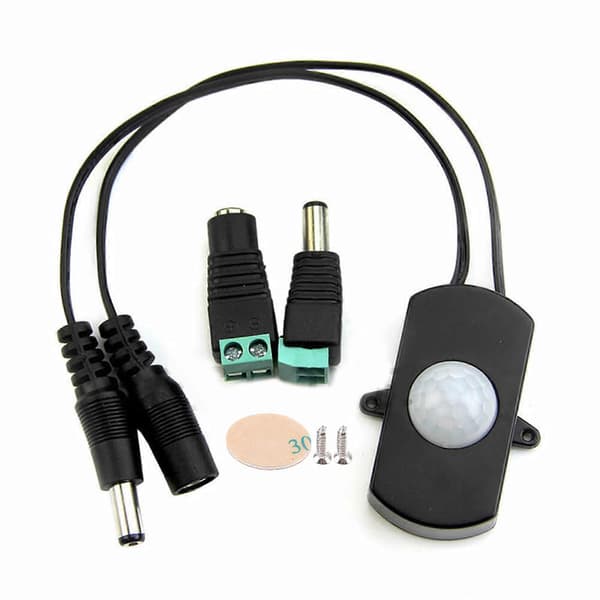

Package includes:
1 x Body Infrared Motion Sensor
