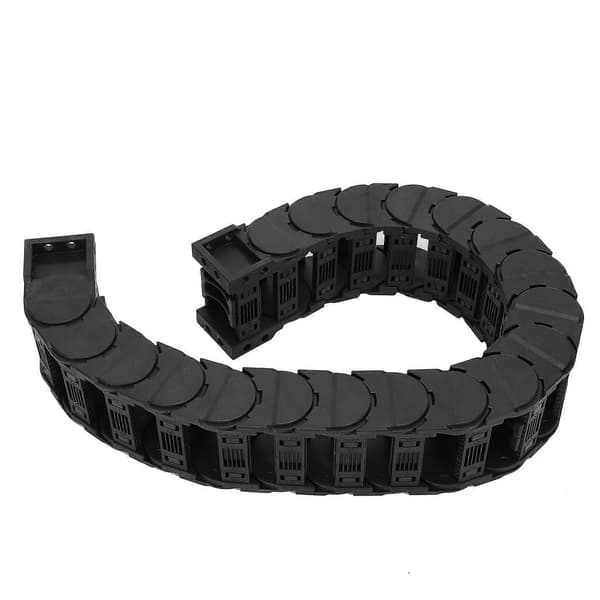

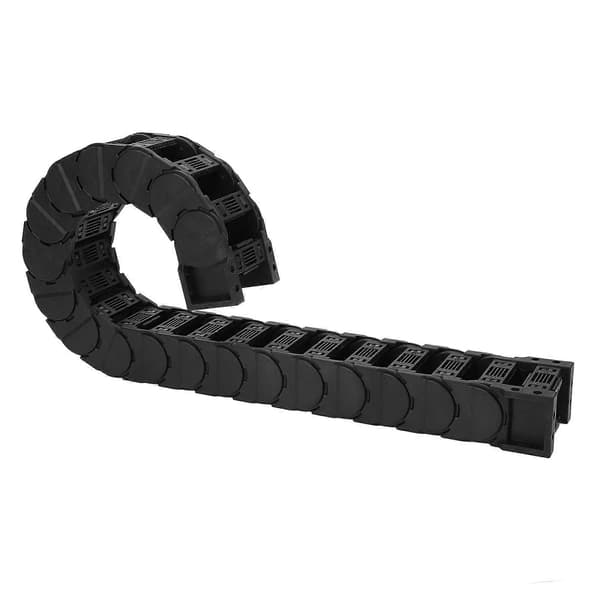

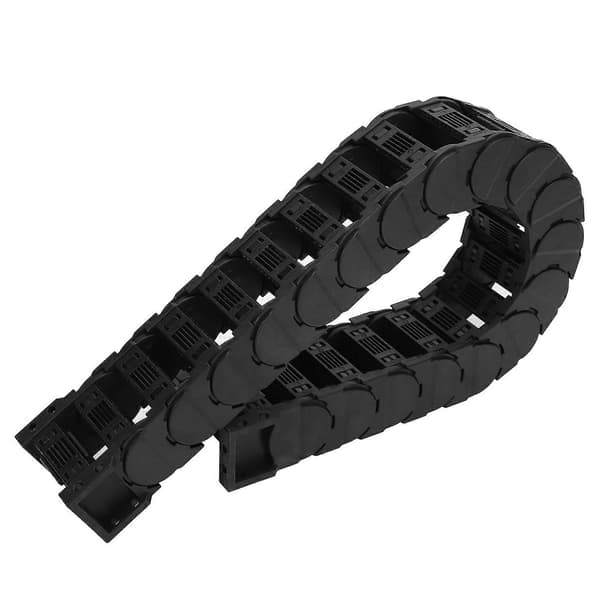

Item Type: Cable Chain

Material: Nylon 66

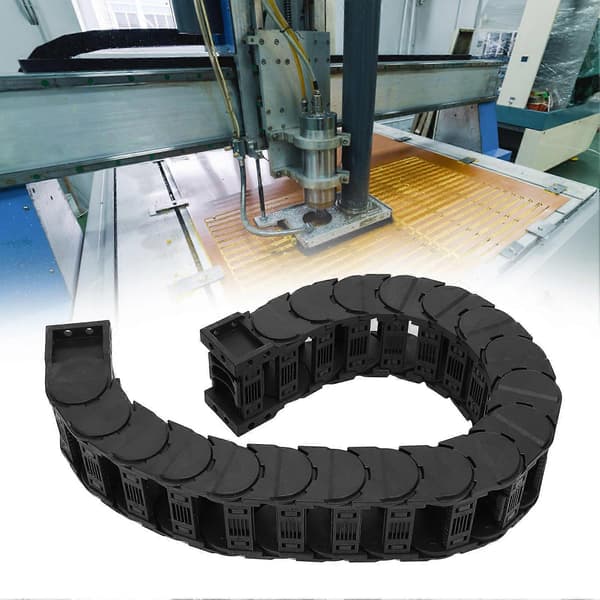

Purpose: Suitable for engraving machine CNC machine tool arm, professional cable protection accessories

Series: Low noise series

Length: Approx. 0.7 meters / 2.3 feet (can be disassembled and assembled to any length)

Working Temperature: -25-100 ℃



Model Inner height x inner width/mm (Approx.)Outer height x Outer width/mm (Approx.)Bending radius/R (mm) (Approx.)Connection length /mm (Approx.)Pitch/mm (Approx.)

D30 x 2530 x 25mm / 1.2 x 1in45 x 41mm / 1.8 x 1.6in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 3830 x 38mm / 1.2 x 1.5in45 x 54mm / 1.8 x 2.1in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 5030 x 50mm / 1.2 x 2in45 x 66mm / 1.8 x 2.6in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 5730 x 57mm / 1.2 x 2.2in45 x 73mm / 1.8 x 2.9in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 6030 x 60mm / 1.2 x 2.4in45 x 76mm / 1.8 x 3in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 7530 x 75mm / 1.2 x 3in45 x 91mm / 1.8 x 3.6in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 7730 x 77mm / 1.2 x 3in45 x 93mm / 1.8 x 3.7in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 10030 x 100mm / 1.2 x 3.9in45 x 116mm / 1.8 x 4.6in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

D30 x 12530 x 125mm / 1.2 x 4.9in45 x 141mm / 1.8 x 5.6in55mm / 2.2in

75mm / 3in

100mm / 3.9in

125mm / 4.9in

150mm / 5.9in

200mm / 7.9in

55mm / 2.2in33.5mm / 1.3in

1The surface of the zipper is glossy and firm, which reduces resistance and friction with the air pipe, low noise and continuous high-speed movement.

2All materials are nylon 66, low temperature resistance 25℃, high temperature resistance 100℃.

3The product can be disassembled and combined to any length to meet work needs.

4Selected and precise materials are precisely processed, and the product's life cycle is greatly extended.

5Silent series, extremely low working noise, making the working environment quieter.1 x Cable Chain
