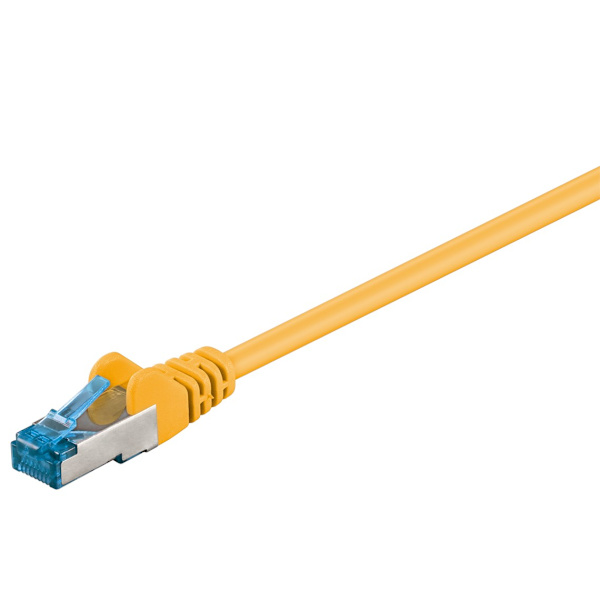

Double-shielded LAN cable with 2x RJ45 connectors for connecting network components

CAT-6A network cable suitable for 10 Gigabit Ethernet 10BASE-T, 100BASE-TX, 1000BASE-T, 10/100/1000/10000 Mbit/s

S/FTP overall shielding: aluminum foil for individual wire pairs (PiMF) and aluminum braided shielding for the cable jacket.

High-quality copper conductor (CU) and 3µ gold-plated contact surfaces guarantee an excellent, high-performance network connection.

Bend protection and stable jacket optimally protect the Ethernet cable from cable breakage.

The snap-lock protection on the RJ45 connector prevents the snap-lock from snagging or breaking off, ensuring a reliable internet connection.

The internet cable is CAT-6A tested (incl. measurement protocol) and suitable for Power over Ethernet (PoE, PoE+).

AWG : 27/7 (stranded)
Bending radius > : 59 mm
Specification : CAT 6A
Cable sheath Diameter : 5.9 mm
Shielding class : S/FTP (PiMF)
Number of shields : 2 x
Connector : EIA/TIA-568 B
Markings : CE, WEEE
Operating temperature up to : 65 °C
Operating temperature from : -20 °C
max. bandwidth : 500 MHz
Bend protection : two-sided
Cable type : Round cable
Material cable sheath : LSZH
Inner conductor material : CU (copper)
LSZH compliant : yes
Type 1, shielding : Foil (alu) PiMF
Type 2, shielding : Shield braid (alu) overall shield
Connection, contact material : Gold-plated 3µm
Connection, shielding : yes
Connection, type : RJ45 connector (8P8C)
Connection 2, type : RJ45 connector (8P8C)
Latch protection : two-sided
Color : yellow
Consumption unit : 1 pc. in plastic bag
Special feature : Length indication on the connector
Cable length : 2 m
Color version : yellow
