Product Parameters

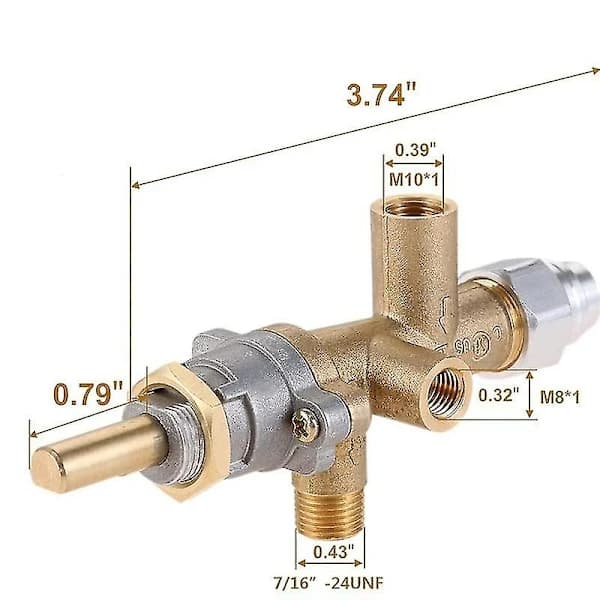

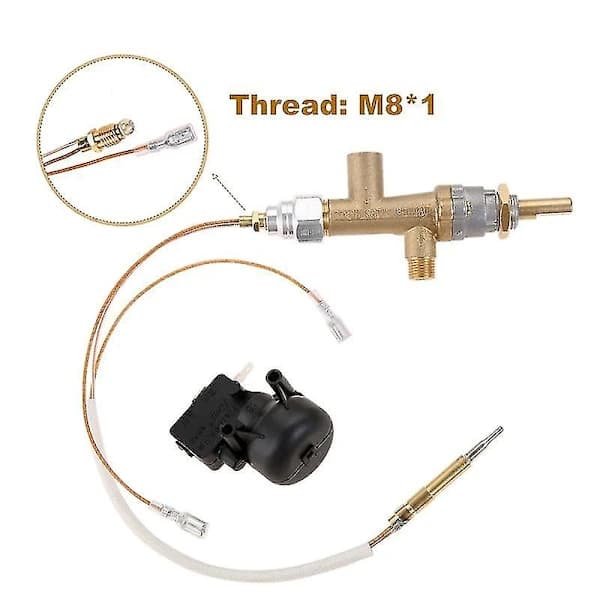

Color: photo color. Material: brass and plastic. Product size: approximately 11.5 cm. The valve has an internal M10 x 1 inlet thread, a 7/16 inch-24UNF outlet thread, an M8 x 1 pilot burner connection thread, and an on-valve design with an 8 mm spindle shaft. The thermocouple cable length is 350 mm. The bakelite-style knob uses ABS material with a solid structure. The package includes 1 heater control valve and 1 coupling.

Core Features
This propane heater safety control kit is made of brass with a robust construction for daily durability. The thermocouple uses solid brass material with a protective sleeve designed for high temperatures. It is equipped with a tip-over switch and a control valve for thermoelectric safety systems, and the valve is only intended for low-pressure use. The tip-over switch specification is FD4 weak current switch with R less than 10 m.

Applicable Scenarios
Suitable for propane heaters with thermoelectric safety, including outdoor propane patio heaters, standing patio heaters, glass tube tower heaters, tabletop propane heaters, and collapsible patio heaters. Not suitable for natural gas heaters. Before purchase and installation, the interface of the heating equipment should be carefully checked, as this product is not universal and different heaters may use different interface types.

Product Summary

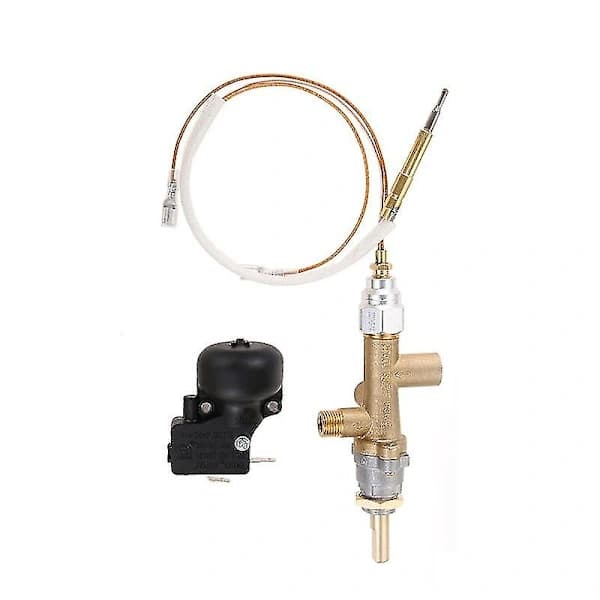

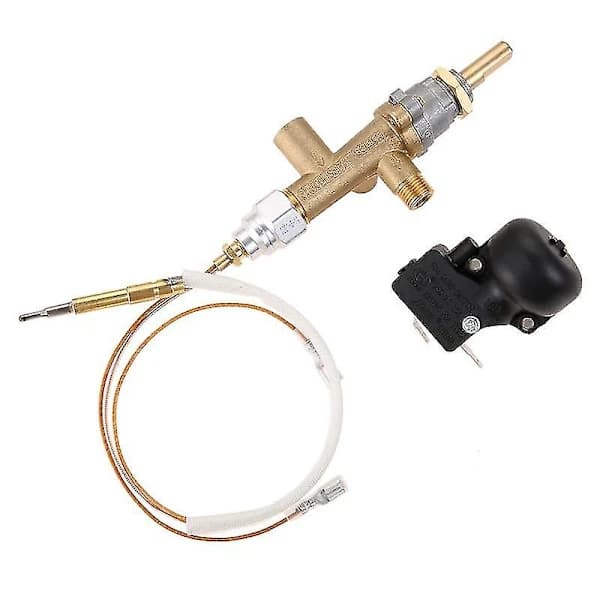

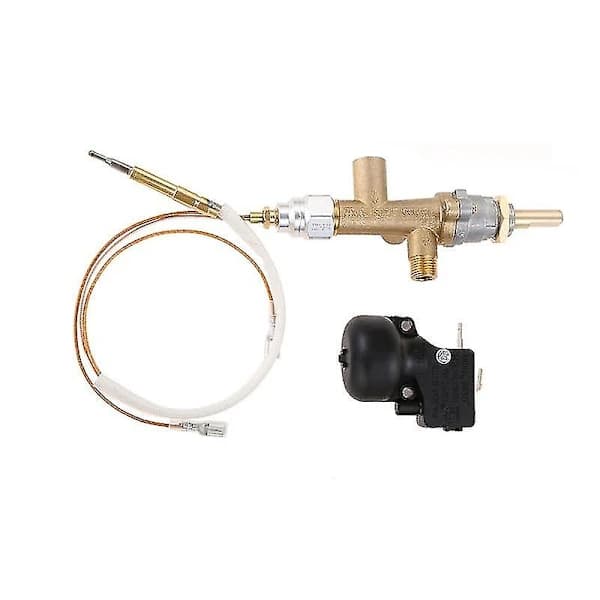

This is a brass and plastic propane heater control valve kit, designed for low-pressure patio heater systems. With specified thread connections, a 350 mm thermocouple cable, and components intended for thermoelectric safety control, it is suitable for several types of propane patio heaters where the interface matches the stated specifications.
