1. For Cortex-M3 MCU with 2MB Flash memory and 128kb SRAM, use for Freertos operating system. 2. RS485 for WiFi series supports TCP/UDP/MQTT/HTTP/Websocket protocols. 3. Supports RS485 460800 BPS. 4. Adopted by high-quality electronic components and accuracy process, supports 10/100m Ethernet Auto-negotiation. 5. Supports heartbeat and religious grain function and web OTA wireless upgrade function.

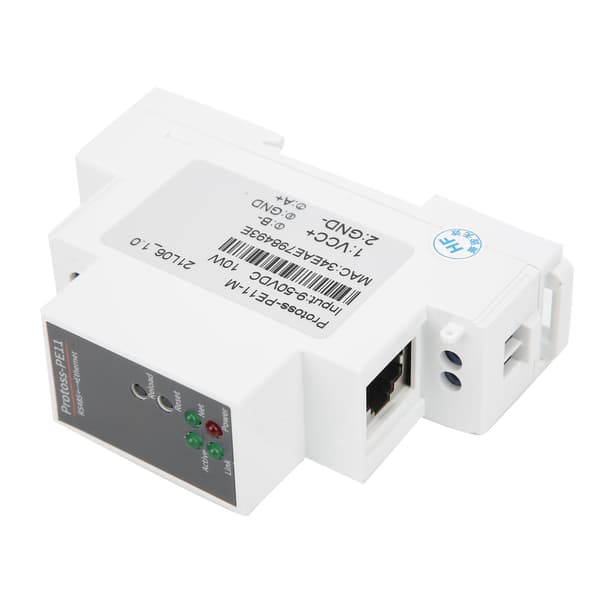

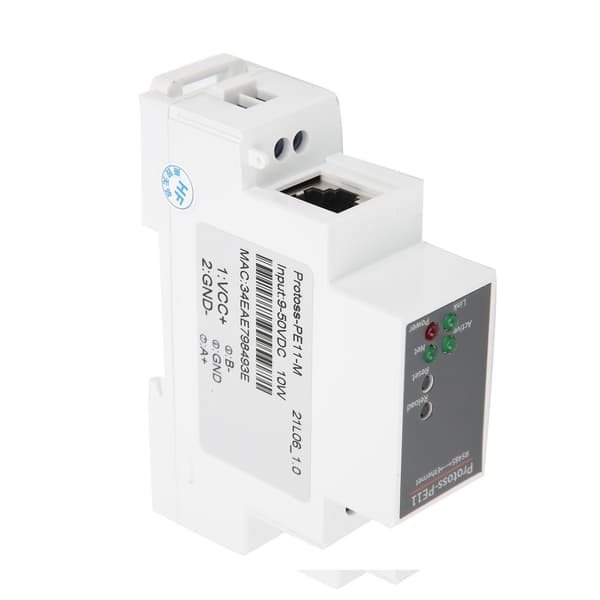

Item Type: RS485 to WiFi Serial Server
Material: PC + ABS
Voltage Input: 9-50VDC
Power: 10W
Processor/Frequency: For Cortex-M3 / 96MHz
Flash / SDRAM: 2MB/128kb
Operating System: For Freertos
Ethernet Port:
Number of Ports: 1
Interface Standard: 10/100 Base-T Auto-negotiation
Transformer Integration:
Network Protocols: IP, TCP, UDP, DHCP, DNS, HTTP server/client, ARP, Autoip, ICMP, Telnet, NTP
Security Protocols: AES 128bit Des3
Serial Port:
Number of Ports: 1 RS485
Data Bits: 5, 6, 7, 8
Stop Bit: 1.2
Parity: None, Even, Odd
Baud Rate: TTL: 600 BPS ~ 460800 BPS
Flow Control: No flow control software for xon/xoff flow control
Software:
Web Page: HTTP web configuration
Customization: HTTP Web page
Configure Website: Web page, command line interface, XML import
Width: Approx. 27.5 mm / 1.1 inches
Hole Height: Approx. 43.89 mm / 1.7 inches
Depth: Approx. 60.95 mm / 2.4 inches
1 x RS485 to WiFi Serial Server
1 x English User Manual
