Description

Wide Compatibility - Suitable for 6-10 gauge wires; Voltage 12-36V; Capacity 50Apm

Super Easy to Use - Insert the wire into the terminal pins and solder or crimp them. Then slide them into the back of the connector and lock them to complete the procedure

Strong Electrical Conductivity - One connector comes with 2 pins. They are made of red copper coated with silver, providing high conductivity and producing less heat

Allows quick connection and disconnection for winches or other electrical devices

Housing: polycarbonate

Contact material: copper, silver-plated

Rated current (Amps): 50A

Rated voltage (volts): 600V

Wire size for contact barrel: 6/8/10/12 AWG (13.3 mm ± 2; - 5.3 / 3.3 mm ± 2;)

Maximum insulation diameter for wires: 0.44 (inches), 11.2 (mm)

AVG contact resistance: 200 (micro-ohms)

Contact retention force: 50 (lbf)

Average contact resistance: 0.05 MΩ

Voltage test: 2200 V (DC)

Insulation resistance: 500 MΩ

A. No load (connect/disconnect cycles): at 10,000

B. Under load (Hot Plug 250 cycles s120V): 50A

Average un-mating force: 53N

Material flammability rating: UL94 V-0

Operating temperature range: -20° to 125°

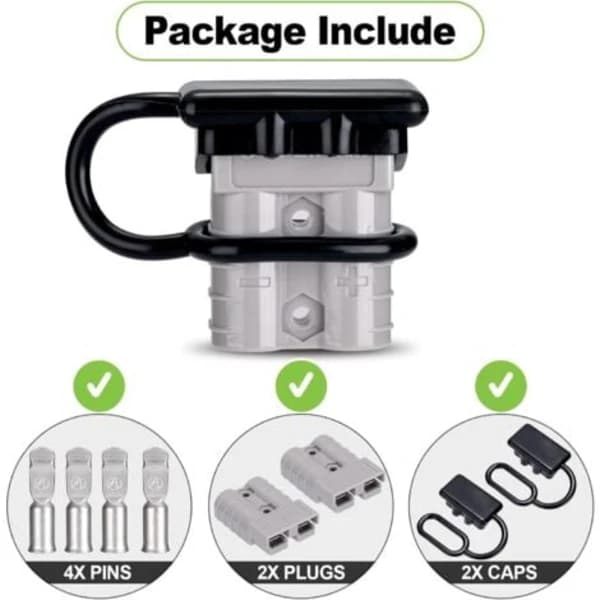

PACKAGE INCLUDES

2 pcs Power Connectors

4 pcs Pin Terminals

2 pcs Rubber Caps_TS
