1. First on then off contact design: The battery switch is a single circuit switch. Switches a single battery to a single load bank. First on, then off contact design allows switching between battery packs without interrupting power. 2. Waterproof and ignition protection: The disconnect switch is designed to be IP66 waterproof and ignition protected. Can be safely installed on gasoline-powered boats with a continuous rating of 300A for outboard motors and small gasoline engines. 3. Conductivity and corrosion resistance: The tinned copper pins have excellent conductivity and corrosion resistance, and the pins accept 3/8 inch (M10) toroidal terminals and 7/8 inch (22 mm) pin lengths to accept multiple cable terminals. 4. Integrated terminal block: The disconnect switch also has an integrated terminal block design that does not loosen for safety. 5. Insulation protection: This disconnect switch has an insulation cover to secure the rear contacts and a breakable lug to allow wire access in any direction. The housing design allows for front, rear panel or front panel mounting.

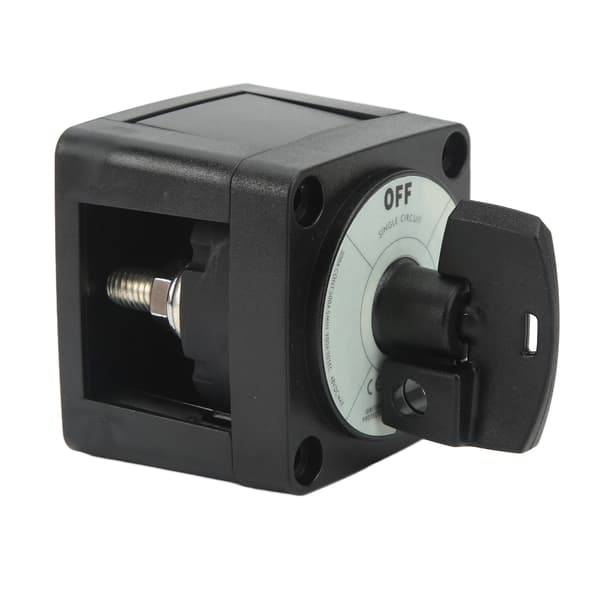

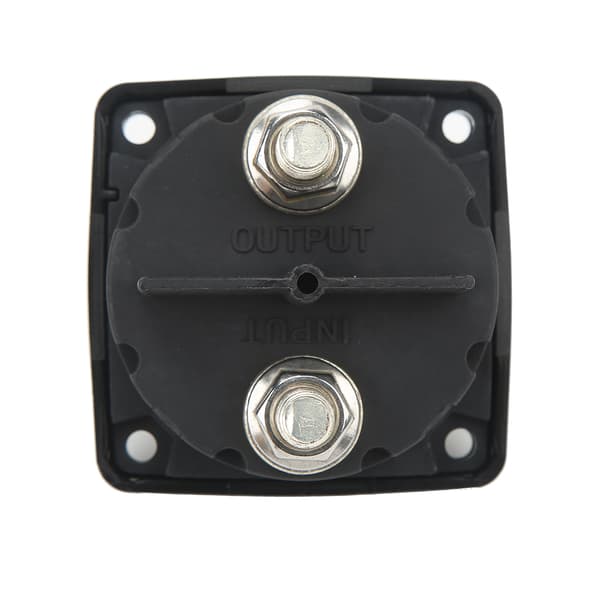

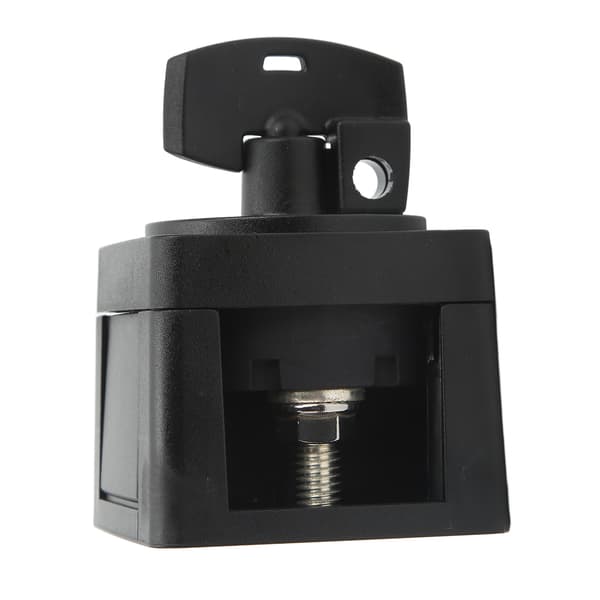

Item Type: Battery Disconnect Switch
Continuous Rating: 300A
Intermittent Rating: 500A (5 minutes)
Cranking Rating 30 seconds: 900A
Maximum Operating Voltage: 48VDC
Cable Post Size: 3/8in-16 (M10)
Terminal Post Length: 7/8in (22mm)
Protection Class: IP66
Switch Gear: OFF, ON
Material: ABS, tinned copper
Inner Pin: Tinned copper
Function: ON then OFF contact design allows switching between battery packs without interrupting power
Applications: Ideal for marine or RV applications

1 x Battery Disconnect Switch

4 x Screw
