Low power consumption: The switch consumes 5mA in standby mode and consumes about 3W when the switch is in operation, which is more energy efficient than new cars.

Stable performance: The external antenna makes the signal longer and stronger. Only for turning on/off the battery, it cannot start your engine. Standard design.

Convenient and simple: This remote controlled electromagnetic battery switch allows you to move the trigger under the hood towards your hand.

Operating voltage: Stop switch 12V remote control, working voltage range 11-15V, suitable for most cars, small trucks, agricultural vehicles, etc.

Long range: Remote control car battery disconnect system distance, kills your car's electrical system with remote control, 48.78 m control distance.

Specification:

Item Type: remote battery disconnect switch

Hardware: ABS, copper, silver

Battery Model: CR2016 x 1 (built-in)

Battery Capacity: 75 mAh

Operating voltage: DC11-15V

Starting current: 200A-360A (less than ten seconds)

Standby current: 0.005A

Switch size: Approx. 45 x 45 x 45 mm/1.77 x 1.77 x 1.77 inches

How to use:

Installation method: 1: The red cable is connected to the positive terminal of the battery, and the black cable is connected to the negative terminal of the battery. This is the power supply for the switch and the remote control switch consumes very little power. 2: The two large terminals on the relay switch form the main switch. One incoming line and one outgoing line, in no particular order, play the role of on/off.3: When controlling the negative pole on/off, one large terminal is connected to the negative pole of the battery, and one large terminal is connected to the negative pole of the battery (the positive pole is also the same).

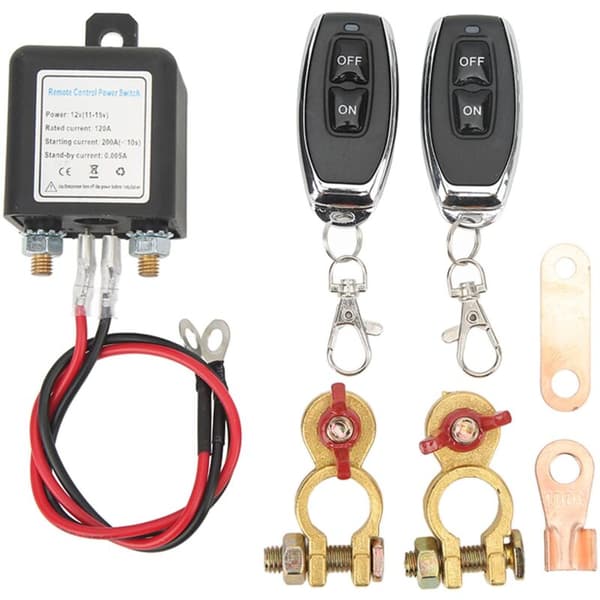

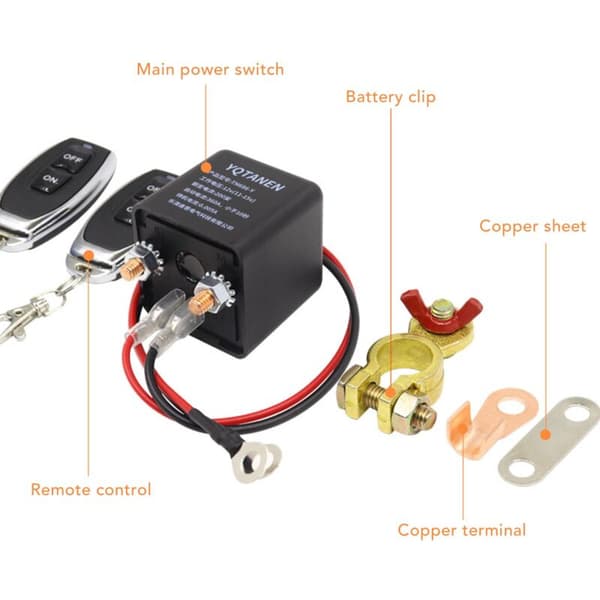

packing list:

2 x remote control

1 x switch main power supply

1 x copper terminal

2 x battery clamp

1 x connection adapter
