1. Floating and telescopic, effectively protects the tap, the front can float 5 mm and the back can float 6 mm. 2. Manufactured after hardening, provides high concentricity and good processing effect. 3. The knife handle body is made of 20CrMrTi steel, fully carburized and heat-treated, and the inner and outer diameters are ground to improve wear resistance and stable performance. 4. The desired thread quality can be achieved with a standard chuck, suitable for all types of machine taps. 5. The collet holder has a stable structure, excellent performance and long service life.

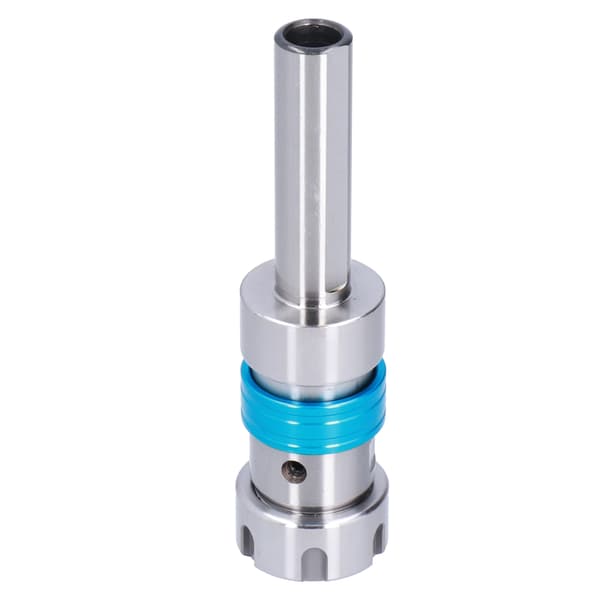

Item Type: Collet Holder
Material: 20CrMrTi steel
Purpose: CNC lathe tapping
Hardness: HRC48-55
Surface: >0.08 mm
Adapter chuck: ER25
Applicable taps: M2-M22
Front float: Approx. 5 mm / 0.2 inches
Rear float: Approx. 6 mm / 0.24 inches
1 x Collet Holder
