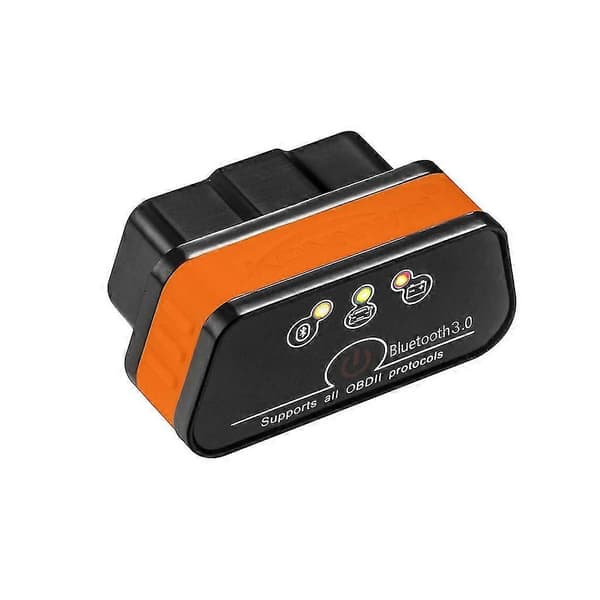

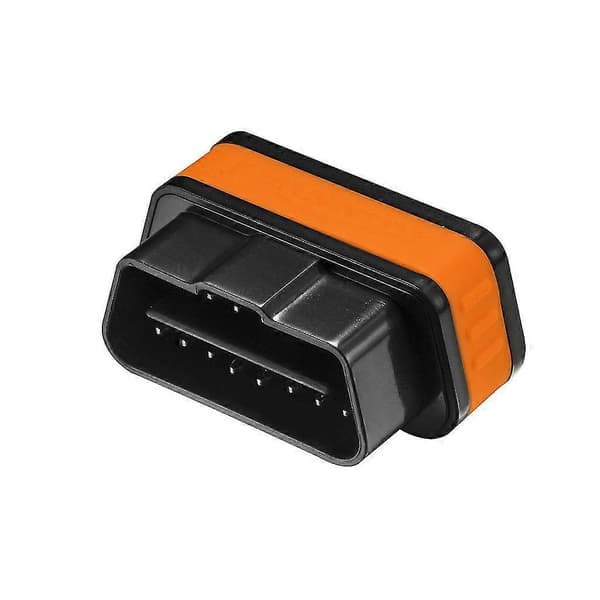

Konnwei KW901 ELM327 Bluetooth 3.0 OBD2 OBDII Car Diagnostic Code Scanner
Features:
The device is a small adapter that plugs into the vehicle's OBD connector. Via Bluetooth, it connects to any computer, tablet, or smartphone, with associated diagnostic procedures. By performing these simple operations, you will be able to:
* Measure fuel consumption.
* Display real-time operating performance of the car, such as momentum, vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, oxygen sensor values, air intake temperature, and more.
* Turn off the MIL (check engine light).
* Download data to external media in various formats for later printing.
* Record various parameters, display real-time graphs, and more.
With KW901, you will be able to perform a complete computer diagnosis of the car and even correct minor faults without having to visit workshops.
The KW901 scantool is a high-quality vehicle diagnostic tool that supports all OBD-II protocols.
Specifications:
* Supply voltage (VDD): 12V
* Operating temperature range: -20 ~ +70
* Storage temperature range: -40 ~ +125
* RF sensitivity (base rate): -85db
* Modulation mode: GFSK
* Frequency range: 2402 ~ 2480MHZ
* Transmission range: 10M
* Bluetooth profile: SPP
* UART parameters: 38400,8,n,1
* Color: F
* Weight: 82g
* Size: Approx. 120mm x 75mm x 40mm
* Material: ABS
* Small size, compact structure. Plug in and never unplug.
* Stable wireless connection.
* No cables or batteries (the adapter is powered by the diagnostic sockets).
* Stops communication, waits half an hour, automatic sleep mode.
* Supports all OBDII protocols.
* The adapter uses the fastest and most reliable ARM chips.
Protocols:
0. Automatic
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
A. SAE J1939 CAN (29bit ID, 250*Kbaud)
B. USER1 CAN (11*bit ID, 125*Kbaud)
C. USER2 CAN (11*bit ID, 50*kbaud)
default settings (user adjustable)

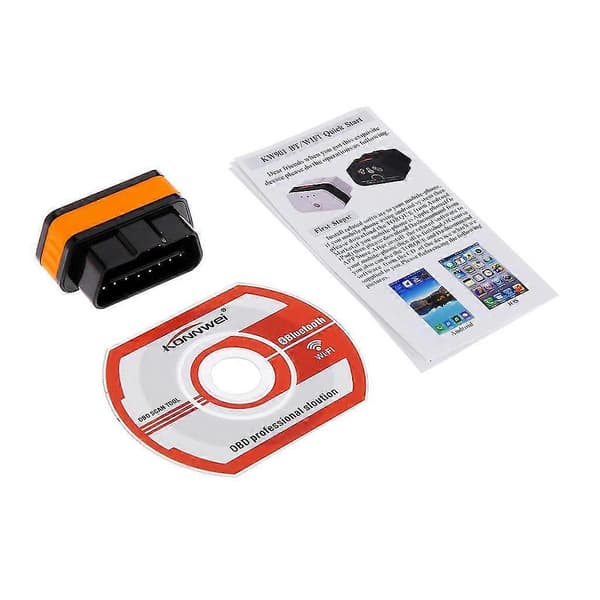

Package contents:
1x KONNWEI KW901 ELM327 OBD
