[RM][LCS] Soft Start Regulators Accessories for Industrial Control Systems Aluminum Base for Single/Two-Phase Motor (Module Cooler)

[RM][LCS] Soft Start Regulators Accessories for Industrial Control Systems Aluminum Base for Single/Two-Phase Motor (Module Cooler)

Name: [RM][LCS] Soft Start Regulators Accessories for Industrial Control Systems Aluminum Base for Single/Two-Phase Motor (Module Cooler)
SKU: RMFD-4.30-2661
Price: 743 SEK
Availability: InStock

743 kr

I lager

Mån, 14 sep - fre, 18 sep

30 dagars öppet köp

Inga avgifter tillkommer efter köpet

Betala direkt eller på faktura med Qliro

Produktbeskrivning

Welcome to our store!
1. The motor soft start module has the ability to support soft start of water pump, fan, vehicle and ordinary single-phase motor. 2. The soft start regulator makes it possible to replace adjustable autotransformer, inverter soft start, etc. 3. The wiring is super simple, no need to connect bypass contactors, economical and practical, powerful. 4. Based on the simple installation of the motor soft start module, it does not require particularly complicated operations. 5. With practical usability, the high quality of the motor soft start board can maintain its high performance for a long time.

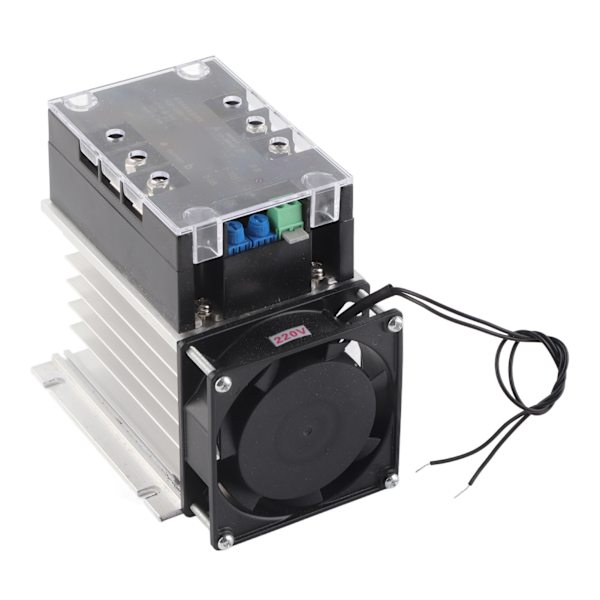

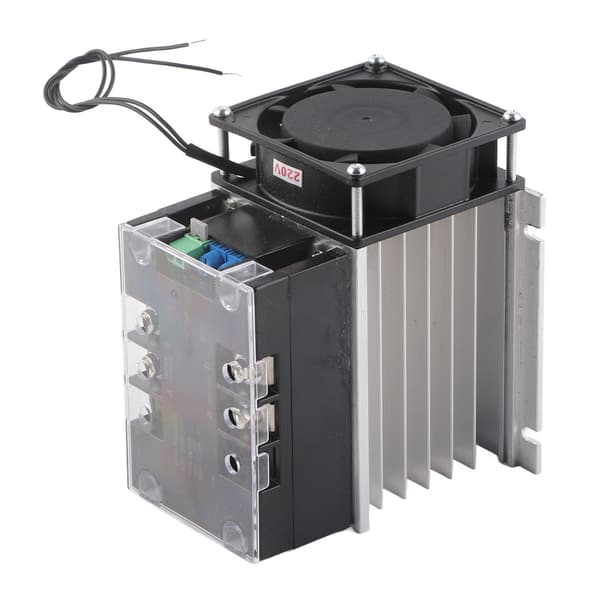

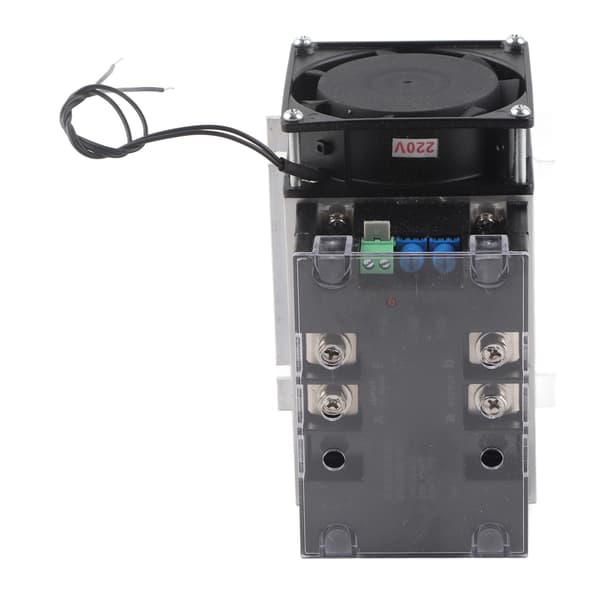

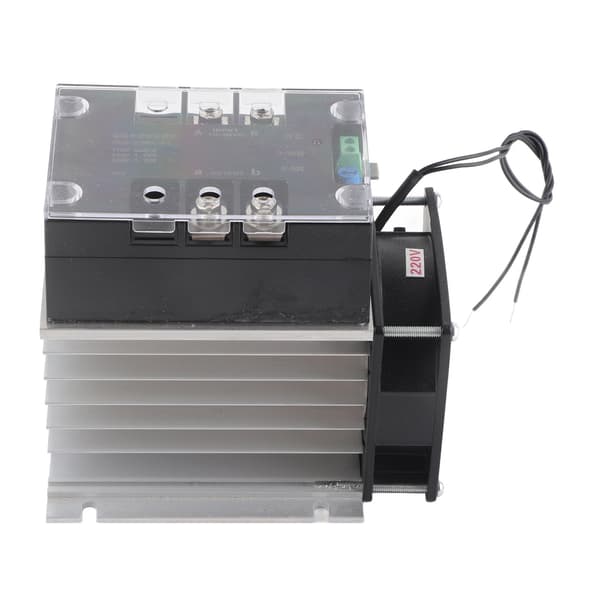

Item Type: Motor Soft Start Board
Type: Module / Module + Cooler (optional)
Model: SSR-20WA-R1 (1KW) (with soft start without soft stop)
Voltage Compatibility: Single-phase 220VAC, 2-phase 380VAC, frequency: 50-60Hz
Soft Start Time: Adjustable from 0-30 seconds (soft start time refers to the entire process from 0-220V, 0-380V)
Starting Voltage: Adjustable from 0-50% to the rated voltage (220-380V)
Two ways of use:
1. When the switch is closed, the main power is supplied and the soft start begins.
2. Use the switch to control, start by closing the soft start, open the stop
When the start potentiometer is adjusted to half, the start is 200V,
The maximum time of the soft start potentiometer is 30 seconds, which corresponds to the entire range of 380V.
For example: When fully adjusted to minimum: Initial voltage 0V soft start 0 seconds (0 seconds is not recommended)
Power supply 220V: When fully adjusted to half, the initial is 55V, soft start time approx. 22 seconds
Power supply 380V: When fully adjusted to half, the initial is 95V, soft start time approx. 22 seconds
Power supply 220V: When fully adjusted to maximum, the initial voltage of 110V to 220V takes 15 seconds
Power supply 380V: When fully adjusted to maximum, the starting voltage 190V to 380V takes 15 seconds
Size 1: Approx. 92 mm / 3.6 inches
Approx. 74 mm / 2.9 inches
Approx. 47 mm / 1.9 inches
Approx. 104 mm / 4.1 inches
Approx. 35 mm / 1.4 inches
Approx. 43 mm / 1.7 inches
Size 2: Approx. 125 mm / 4.9 inches
Approx. 80 mm / 3.1 inches
Approx. 110 mm / 4.3 inches
Approx. 28 mm / 1.1 inches
Approx. 100 mm / 3.9 inches
1 x Total (Module + Cooler)
