1、[Multifunctional] Suitable for electrical control circuits for anti-theft alarms, electric doors and windows, signal control, industrial control, lifting equipment, etc. 2、[Direct Control] Mini relay remote control switch, independent output of module relay contact, 7mA working current, very suitable for direct control of various loads. 3、[Anti-interference] The RF switch uses learning code wireless encoding technology (space pairing), no directional action and the switches do not interfere with each other. 4、[3 Working Modes] 3.5V-12V learning code remote control switch, self-locking, interlocking, jog user free adjustment, can realize one control multiple, multiple control one. 5、[Easy to Use] Each channel of the receiving board can withstand 3A current and can directly drive DC and AC loads, the relay has a set of normally open (normally closed) contacts.
Item Type: Mini Relay Remote Control Switch
Material: ABS
Working Voltage: DC3.5V-DC12V
Maximum Load: 3A (Better load is less than 2A)
Working Frequency: 433MHz
Standby Quiescent Current: 0.1mA
Working Current: 7mA
Frequency Deviation: ≥0.2MHz
Working Temperature: -20℃-+80℃
Built-in Button Battery in Remote Control: 2 x CR2016(75mAh)

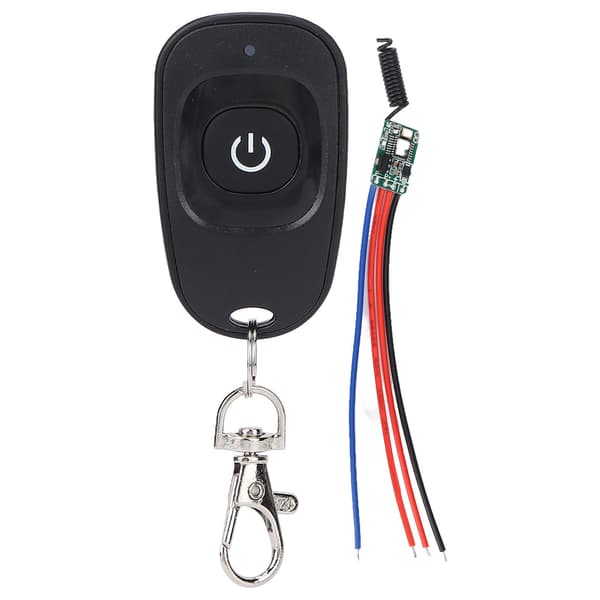

1 x Wireless Module

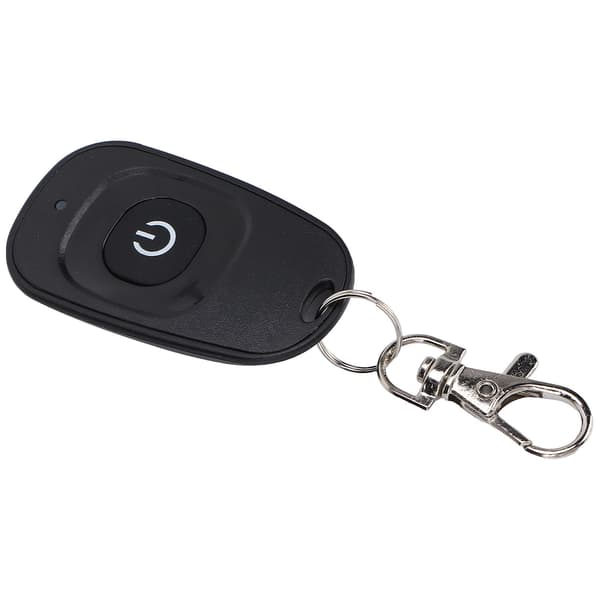

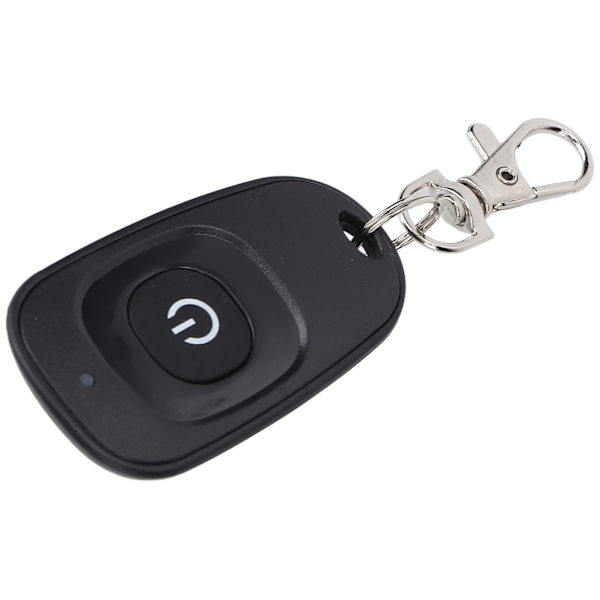

1 x Remote Control
