DVB-S/S2 satellite meter WS-6933
High-quality, simple pocket-sized satellite signal meter, model WS-6933 HD with color LCD display, which allows you to easily and accurately align the satellite antenna to the correct satellite.
The meter is equipped with a readable menu in Polish, has several satellite positions (transponder satellites) programmed, and it is possible to edit each parameter.
It has the ability to measure directly from the universal converter and Unicable type converters (8 editable SCR frequencies). An additional advantage is the BER error rate indicator and the built-in Li-Ion 800mA battery.
Model WS-6933 HD measures DVB-S2 channels - HD. Includes power supply and USB cable for connecting to your computer. Menu in Polish.
Main features:
Input frequency: 950-2150MHz
Input signal level; -65 ~ -25dBm
Input impedance: 75ohm
Converter power supply: 13/18V (max. 300mA)
DVB-S2 channel measurement (HD)
Minimum noise level: approx. 35dBuV
Maximum noise level: approx. 90 dBuV
Converter overvoltage protection
Power level PWR, dBuV
Indication of signal strength and quality
Percentage indication of signal quality
Audio signal for finding the satellite (can be turned off)
Indication of BER errors
Built-in flashlight
LI-ION battery (8.4V 800mAh), working time approx. 3 hours
Ability to edit satellite, transponder, frequency
DiSEqC support: 1.0, 1.1, 2.0 and 22 kHz
UNICABLE/SCR support
Ability to update software via USB connector
Power supply: 100-240V/50/60Hz 12V, 1000mA
Power consumption: 5W
Dimensions: 160 x 80 x 40 mm

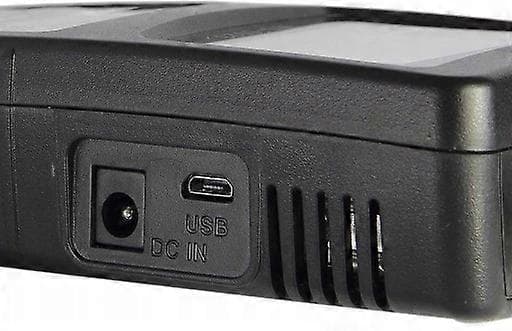

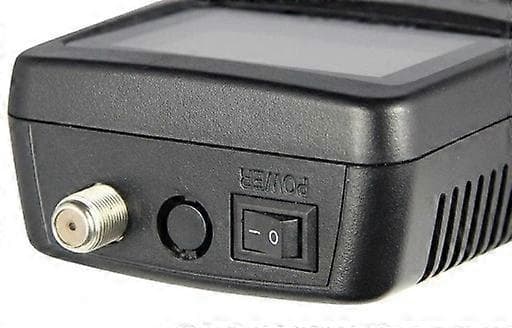

Inputs/Outputs:
Micro USB
LNB Input
DC Power Supply (AC 100 -240V / DC 12V @ 1A)

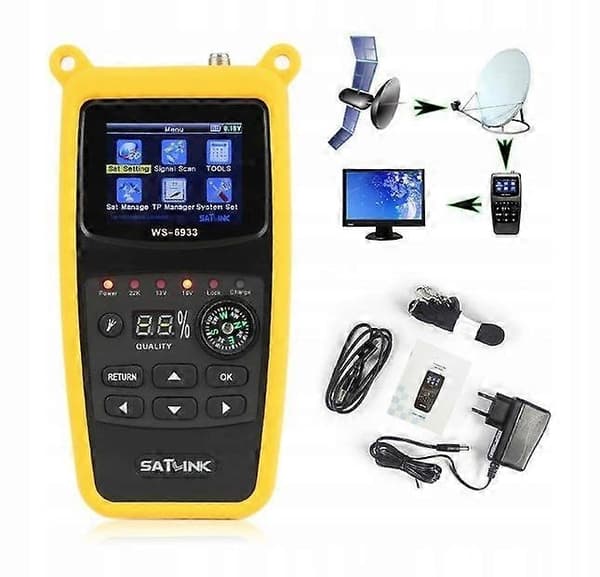

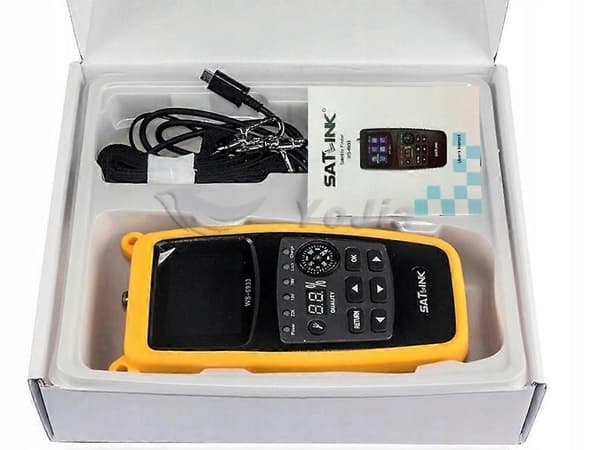

Set includes
Meter WS-6933 HD
USB cable
Belt
AC Charger
Online instructions in Polish
Packaging
