The RP series of receivers are designed with size, ease of use, and range in mind. Utilizing ExpressLRS 2.4ghz Open-source firmware, the RP series of nano receivers deliver the features and range that pilots today expect.

Developed around the ESP8285 MCU and SX1280IMLTRT RF Chip, the RP series offers Lora and FLRC 2.4ghz RF links providing range and low latency. With built-in Wifi, FW updates can be done on your aircraft without needing to remove the receiver. Binding can be done with a binding phrase meaning no more binding plugs or fiddly button presses when trying to plug in your battery.

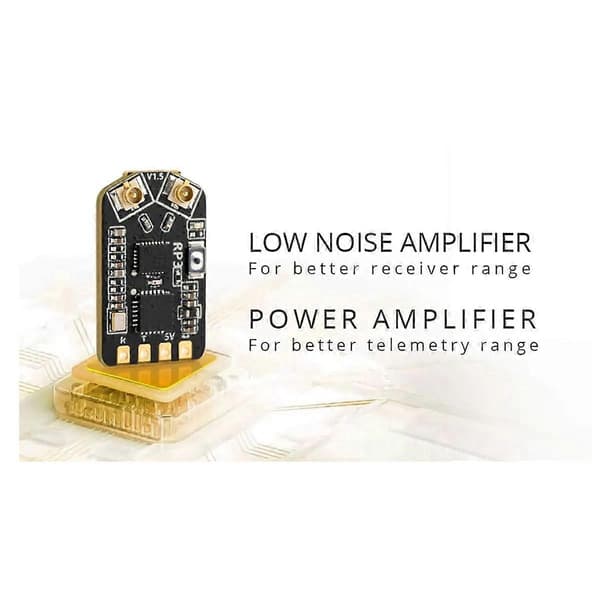

The RP3 receiver features a Skyworks SE2431L providing an LNA for improved receiver performance, a PA providing up to 250mw telemetry performance, and antenna switching for antenna diversity.

Item: RP3 Diversity Receiver

Type:

MCU: ESP8285

RF Chip: SX1280IMLTRT

Telemetry RF power: max 100mw

Antenna: 65mm 2.4ghz T Antenna x 2

Frequency range: 2400 MHz to 2480 MHz

Maximum receive refresh rate: 500Hz/F1000Hz

Minimum receive refresh rate: 25Hz

Working voltage: 5v

Weight: 4.6g (Including two antennas)

Firmware Version: ExpressLRS v3.0 pre-installed

FW Target: RP3 Diversity 2400 RX

Bus interface: CRSF

Optimized PCB design for better heat dissipation.

LNA for better reception range.

PA for better telemetry range.

Antenna diversity for improved signal stability and range.

Color: Black

Material: Plastic+Metal

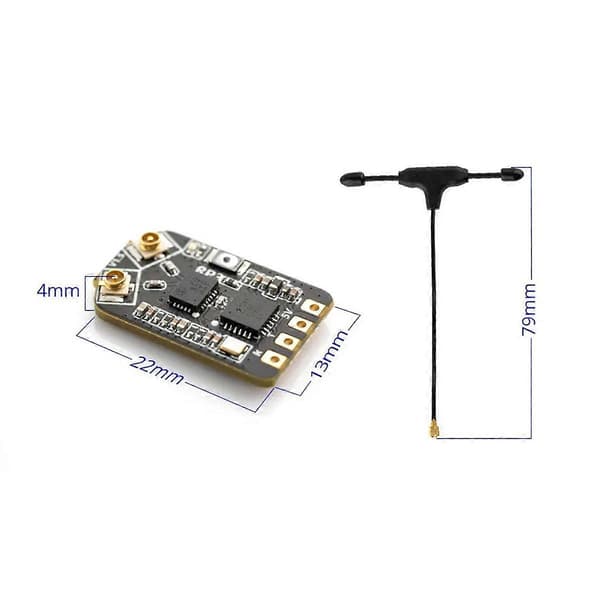

Size: 22mmx13mmx4mm

Package Contents:

1 * RP3 Dual Antenna Receiver

Only the above package content, other products are not included.
