1. A single-point ranging radar based on the ToF principle, using an 850nm infrared light source, ensures stable, accurate, and highly sensitive distance measurement. 2. Features multiple built-in adaptive algorithms for different application environments and targets, and opens up a variety of adjustable configurations and parameters. 3. Guarantees excellent ranging performance in complex environments and meets customer needs in complex application scenarios, efficient and practical. 4. Can be flexibly applied in varying circumstances, including but not limited to assisted focusing, elevator projection, intrusion detection, material level measurement, etc. 5. Enables a wide measurement range from 0.2 meters to 8 meters, compatible with for Pixhawk and for Raspberry Pi, and also features UART/I2C communication interfaces.

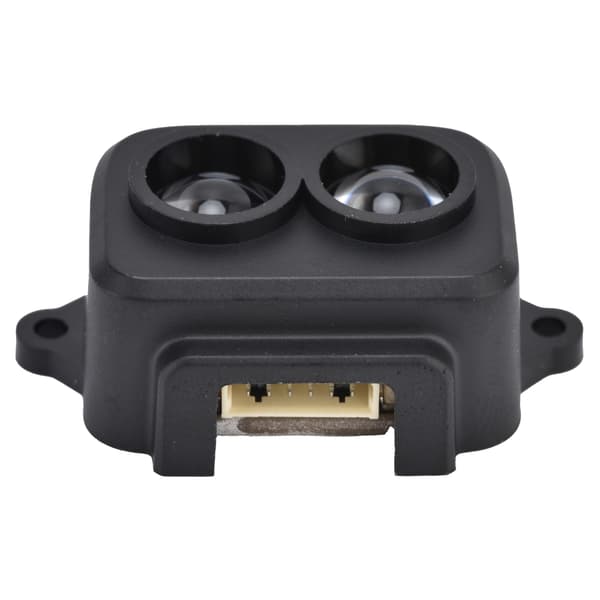

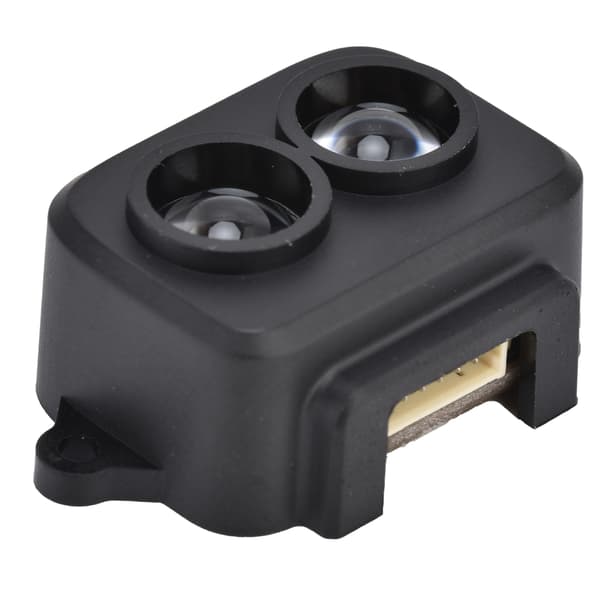

Item Type: Lidar Distance Sensor
Material: ABS + Printed Circuit Board
Function: Assisted focusing, elevator projection, intrusion detection, material level measurement.
Measuring Range: Approx. 0.2 ~ 8 meters / 0.7 ~ 26.2 feet (at 90% reflectivity)
Accuracy: Approx. ±6cm / 2.4in at (0.2 ~ 3 meters / 0.7 ~ 9.8 feet) ±2% at (3 ~ 8m / 9.8 ~ 26.2 feet)
Distance Resolution: Approx. 1cm / 0.4in
Frame Rate: 100Hz
Anti-Ambient Light Capability: 70Klx
Working Temperature: -10℃~60℃
Light Source: VCSEL
Center Wavelength: 850nm
Eye Safety: Class1 (IEC60825)
Field of View: 2 Degrees
Power Supply Voltage: 5V±0.1V
Average Current: ≤70mA
Power Consumption: ≤0.35W
Peak Current: 150mA
Communication Level: LVTTL (3.3V)
Communication Interface: UART / I2C
Size: Approx. 35 x 21.25 x 13.5mm / 1.4 x 0.8 x 0.5in
Storage Temperature: -20℃~75℃

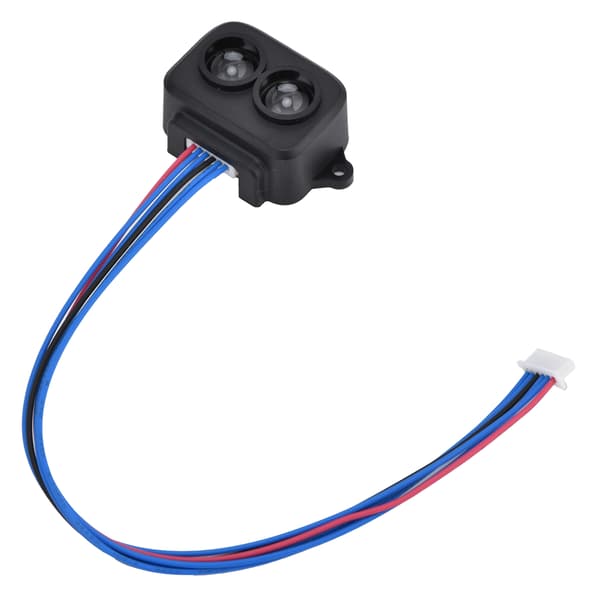

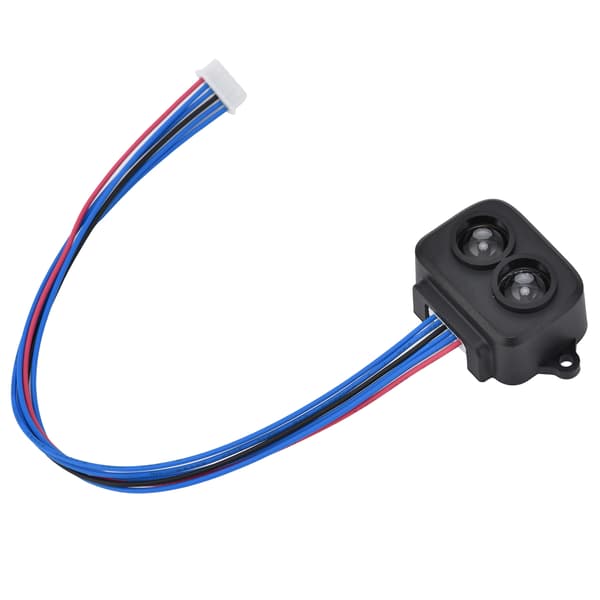

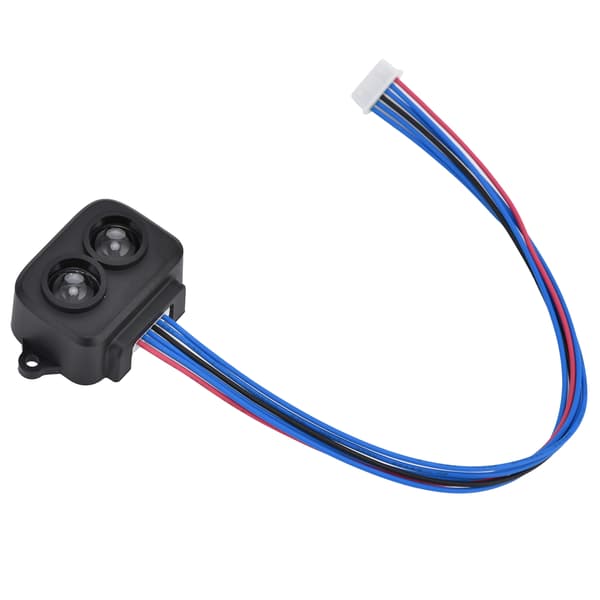

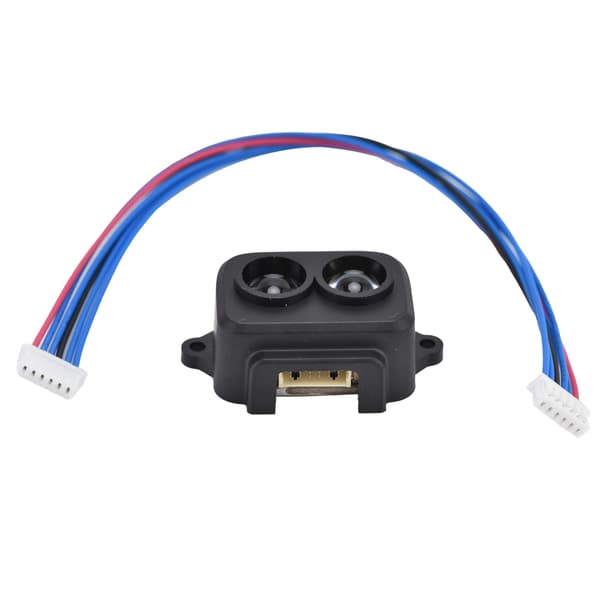

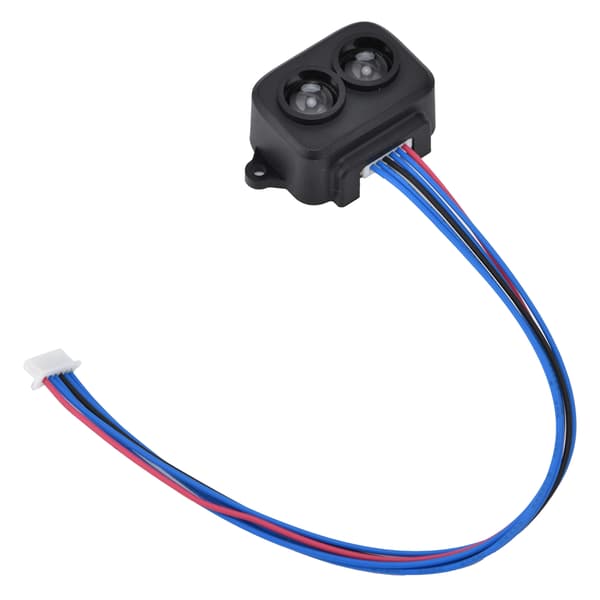

1 x Lidar Distance Sensor

1 x Connecting Cable
