Description
1. MULTIPLE MODES: This is a special motion control module for stepper motor and servo motor. This module has no programmable function, but has built-in a variety of fixed operating modes, the user can quickly select the appropriate track
2. CONFIGURABLE AND PRACTICAL: The stepper motor motion controller supports power-off save and setting distance, speed, delay, cycle times
3. VARIOUS USAGE METHODS: Can run independently as a module, can also cooperate with other systems, as a third-party module to compensate for the lack of motor output shaft
4. SCOPE OF APPLICATION: Widely used in industrial automation control, small mechanical equipment, automatic painting industry, indexing tool control industry
5. EXCELLENT PERFORMANCE: Made with fine workmanship, has a compact appearance and stable performance, can ensure durability and stability
Note:
The module has no programmable function
It is forbidden to use it in the following industries:
1: Medical equipment
2: Elevator, fire, boiler equipment, power generation equipment, mining equipment and other special industries or areas of vital importance

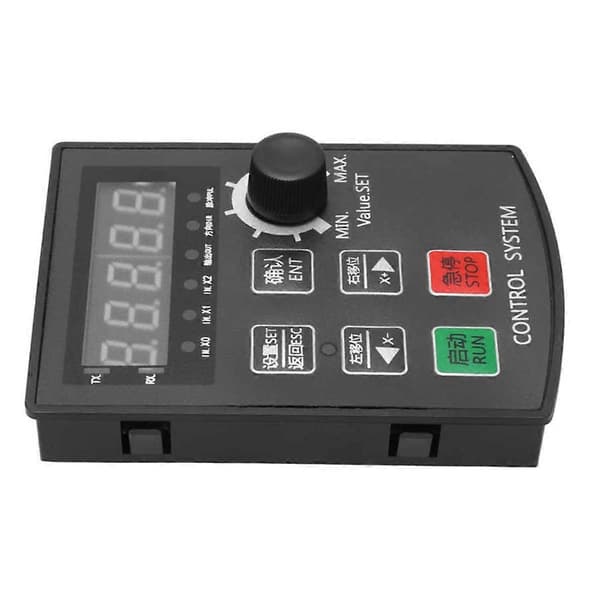

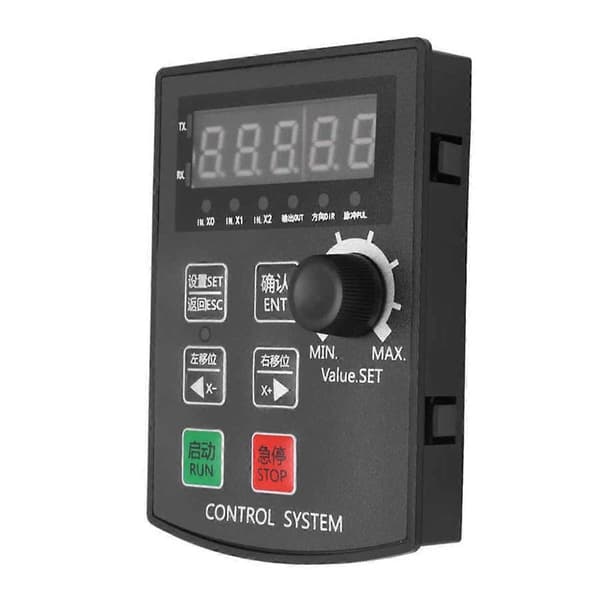

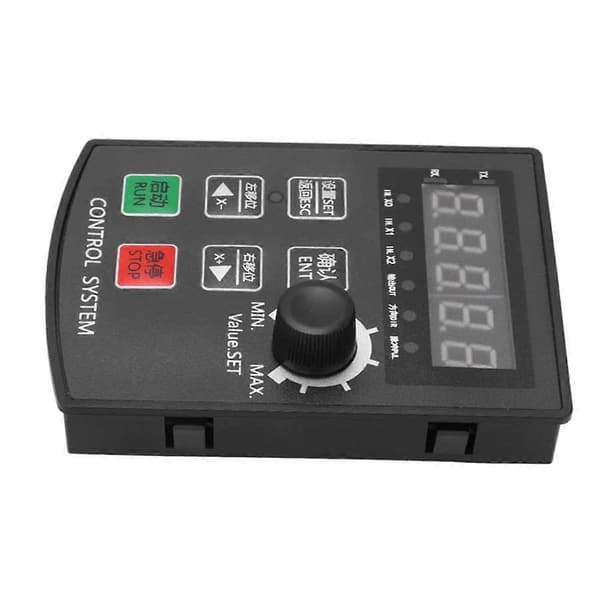

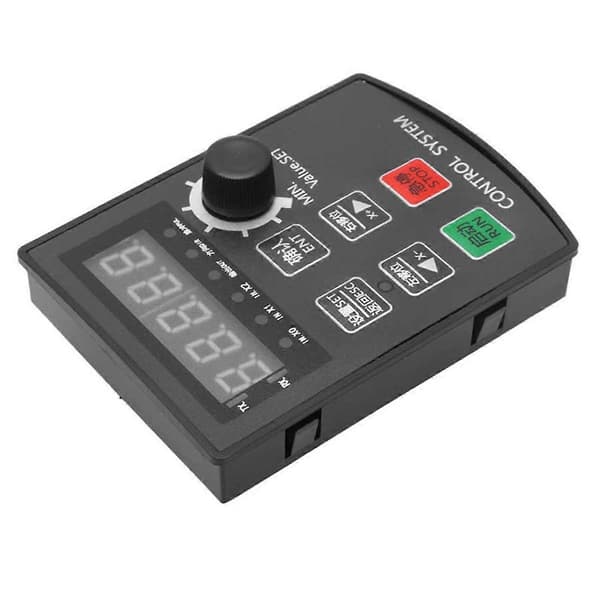

Item Type: Stepper Motor Motion Controller
Display Structure: 5 digits, high light digital tube
Operating Environment: -5℃-60℃ (no condensation)
Output: Output 2. Output voltage: 0V
Operating Voltage: DC DC12-24V Greater than 1A power supply
Motor Pulse Voltage: Collector 24V, can be directly connected to 5-24V driver
Motor Pulse Frequency: 85K HZ
Input: Enter 7. The input takes 0V as the valid signal
Type: Without RS485/With RS485
Color: Black
Material: Plastic
Size: Case size (LxWxH): Approx 99.7x72x17mm/3.93x2.83x0.67in; Opening size (LxW): Approx 92x69.8mm/3.62x2.75in

Package Contents:
1 * controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
