Welcome to our store!

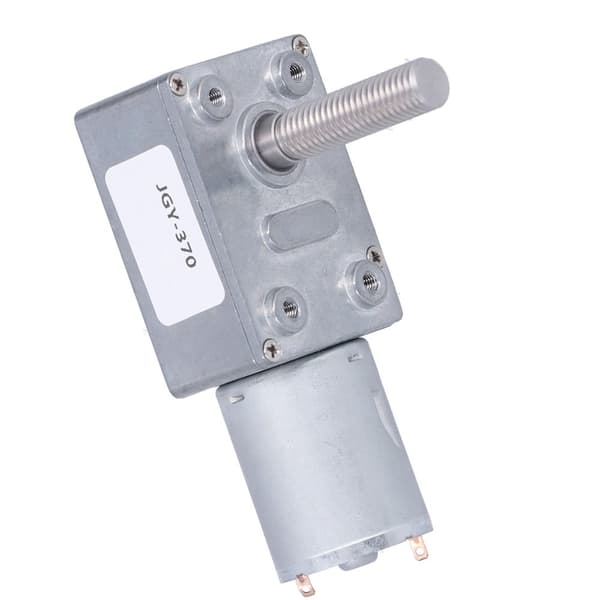

We are delighted to present our premium worm gear motor.

This motor is made of high-quality alloy material, ensuring it is wear-resistant, rust-proof, and non-corrosive. It also boasts better thermal conductivity, providing efficient performance.

With its heat-treated gear and lubricating oil, the motor operates quietly and smoothly. It effectively reduces vibrations thanks to its well-designed bearing.

The carbon brush structure ensures a long lifespan, low friction, and low power consumption. It replaces the traditional copper brush, offering superior performance.

The 8mm shaft guarantees stable and long-lasting operation without overheating, making it suitable for mini motor manufacturing and DIY models.

Here are the specifications for your reference:

- Item Type: Worm Gear Motor - Material: Zinc alloy, red copper, carbon, stainless steel - Purpose: Industrial drive device - Operating Voltage: DC 6V/DC 12V - Output Shaft Size (diameter x length): Approx. 8 x 33 mm / 0.31 x 1.29 inches - Shaft Type: M8 threaded shaft - Speed Adjustment: Adjustable speed - Forward and Reverse: Can be forward and reverse DC 6V Specifications:
- Reduction Ratio: 40, 65, 90, 150, 200, 260, 340, 600, 1000 - No-load Current: ≤100mA - No-load Speed: 150rpm, 90rpm, 66rpm, 40rpm, 30rpm, 23rpm, 18rpm, 10rpm, 6rpm - Rated Torque: 0.2kg.cm, 0.5kg.cm, 0.7kg.cm, 2kg.cm, 5.3kg.cm, 6.7kg.cm, 9kg.cm, 15.9kg.cm, 26.5kg.cm - Rated Speed: 120rpm, 70rpm, 51rpm, 30rpm, 22rpm, 18rpm, 15rpm, 7.5rpm, 4rpm - Rated Current: ≤0.6A - Maximum Torque: 0.9kg.cm, 1.6kg.cm, 2kg.cm, 7.5kg.cm, 10kg.cm, 13kg.cm, 18kg.cm, 30kg.cm, 45kg.cm - Stalled Current: 3.3A DC 12V Specifications:
- Reduction Ratio: 40, 65, 90, 150, 200, 260, 340, 600, 1000 - No-load Current: ≤60mA - No-load Speed: 150rpm, 90rpm, 66rpm, 40rpm, 30rpm, 23rpm, 18rpm, 10rpm, 6rpm - Rated Torque: 0.2kg.cm, 0.5kg.cm, 0.7kg.cm, 2kg.cm, 5.3kg.cm, 6.7kg.cm, 9kg.cm, 15.9kg.cm, 26.5kg.cm - Rated Speed: 120rpm, 70rpm, 51rpm, 30rpm, 22rpm, 18rpm, 15rpm, 7.5rpm, 4rpm - Rated Current: ≤0.6A - Maximum Torque: 0.9kg.cm, 1.6kg.cm, 2kg.cm, 7.5kg.cm, 10kg.cm, 13kg.cm, 18kg.cm, 30kg.cm, 45kg.cm - Stalled Current: 1.7A 100% Satisfaction: Our customers are our top priority. If you encounter any product issues after receiving the item, such as damage or incorrect quantity of goods, please contact the seller immediately. We will do our best to provide you with satisfactory after-sales service.

Thank you for choosing our worm gear motor. Happy shopping!
