Feature:
1. Standard Design: The input is DC 3-32V, the output is DC 12-220V, and the 60A solid state relay is compatible with TTL, DTL, and HTL logic circuits.
2. Wide Application: Widely used in automatic control systems such as heating and constant temperature systems, packaging equipment, plastic machinery, etc.
3. Safer Operation: A contactless relay with semiconductors and good sealing, which can directly drive large current loads with small control signals.
4. Better Material: The SSR relay module is made of flame-retardant PC material and has high impact resistance, is also highly insulating and durable.
5. Easy to Install: Comes with a compact size and light weight, which makes the single phase solid state relay very convenient to install in minutes.
Specification:
Item Type: Solid State Relay

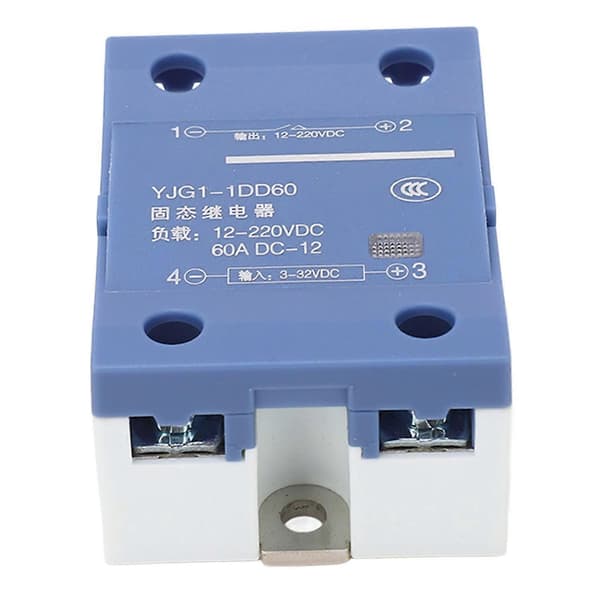

Model: YJG1-1DD60
Control: DC to DC
Input Control Voltage: DC 3-32V
Output Load Voltage: DC 12-220V
Load Current: 60A
Input Control Current: 5-30mA
Off-state Leakage Current: ≤ 5mA
On-state Voltage Drop: ≤ 1.6V
Working Current Safety Factor: Resistive load: 50%. Inductive load: 15%
Rated Insulation Voltage Ui: 500V
Rated Impulse Withstand Voltage Uimp: 2.5kV
Working Temperature: -25~70 ℃.
Package List:
1 x
Solid State Relay
