Description

Wide Time Range: Digital Cycle Timer Relay Module, Time Range From 1 Second To 999 Hours

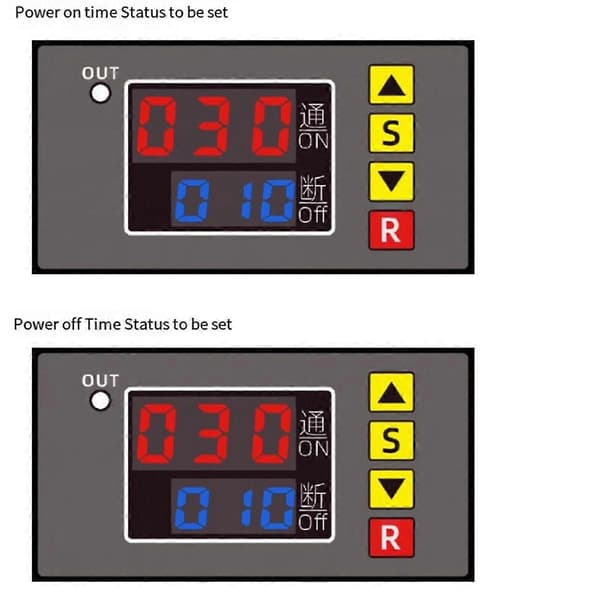

Dual LED Display: Red And Blue Dual LED Display Module And Touch Buttons, Easy To Set Delay Time And Working Mode

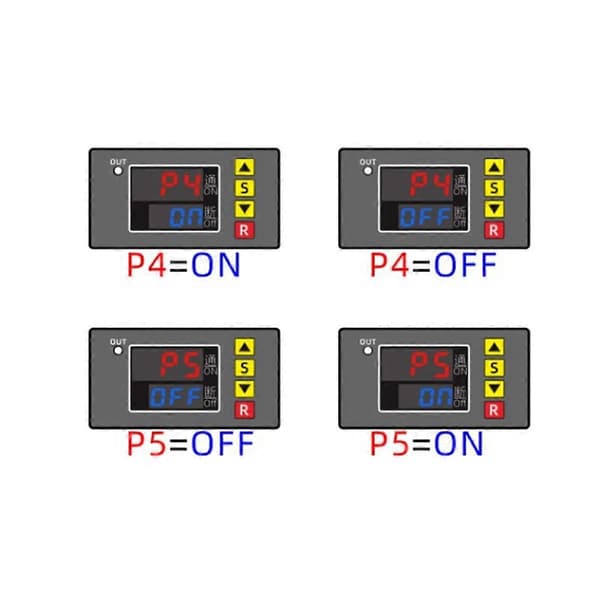

Supports Multiple Working Modes, Including Timer, Cycle And Period Working Modes, Meeting Most Of Your Needs

Direct Output, Input=Output, 9 Combinations Of Time Units, Supports Manual Trigger

Embedded Installation, Suitable For A Variety Of Application Scenarios

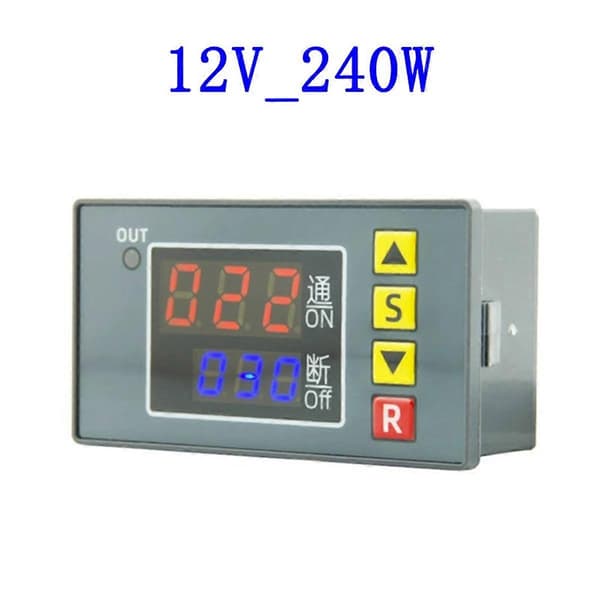

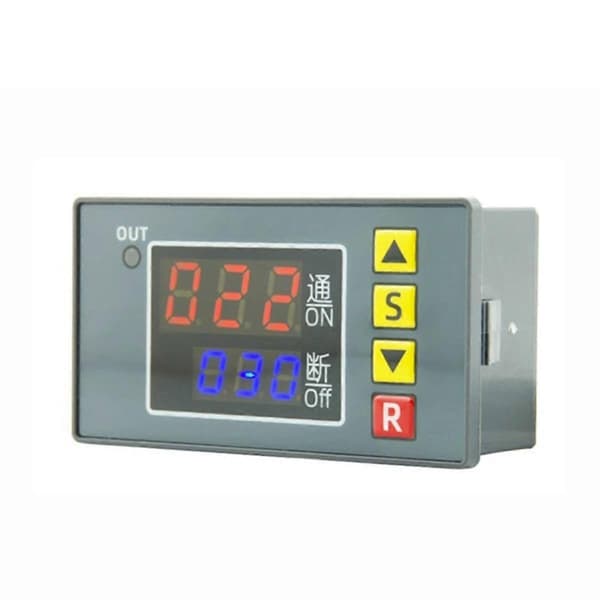

Product Name: T3231 Controller

Output Type: Active Output, Short Circuit Forbidden, Pay Attention To Safety

Relay Type: 1-Way Normally Open Relay

Time Unit: Seconds/Minutes/Hours

Time Range: 0-999, Minimum Measurement Unit: 1 Second

Support: Cycle Switch, Delayed Start, Delayed Shutdown, Infinite Loop

Save After Power Failure: Supported, Only Save Settings, Reset After Power On And Restart

Buzzer Alarm: None

Limited Cycle: 1-999 Times Adjustable Cycle

Trigger Mode: Automatic Trigger/Manual Trigger

External Trigger: An External Trigger Port Is Reserved, And A Trigger Device Must Be Installed By Yourself.

Note: Different Batches May Have Differences In Product Appearance, Color, And Printed Characters, Which Does Not Affect Use

Type: A:12V_240W/B:110-220V_1500W/C:110-220V_2200W

Color: As Shown

Material: Plastic



Package Contents:

1 * Controller

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
