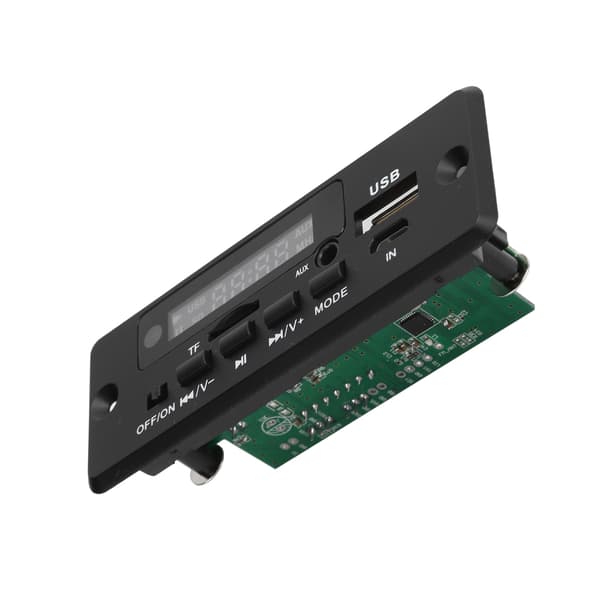

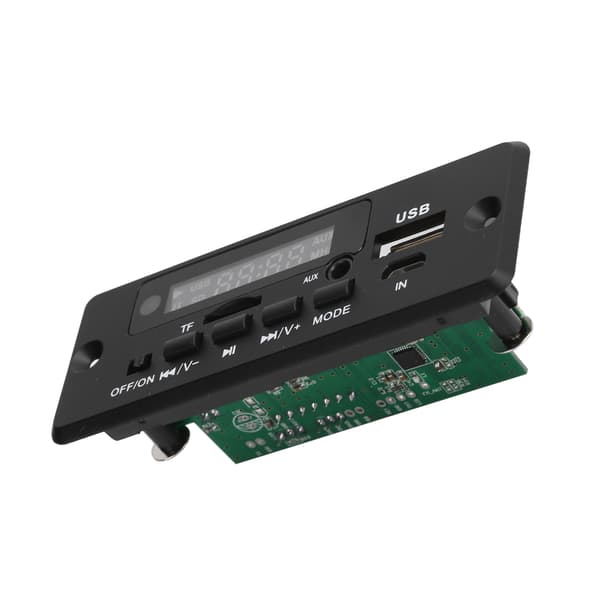

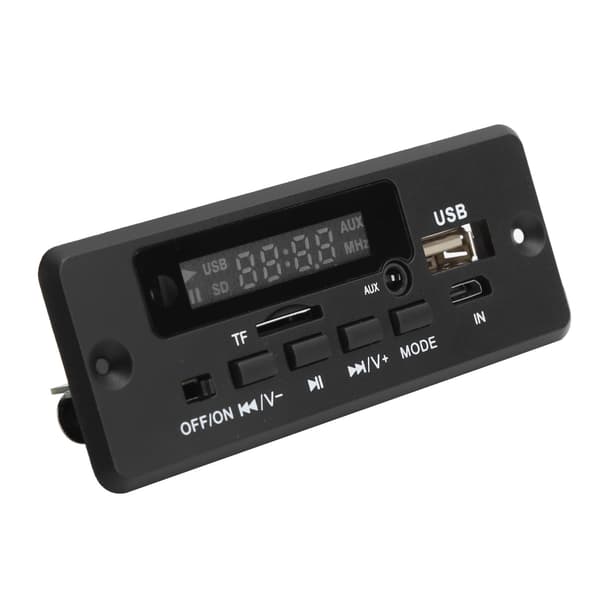

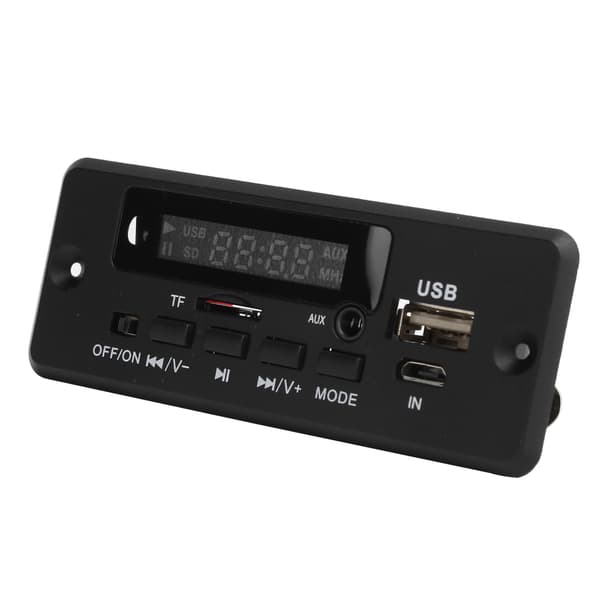

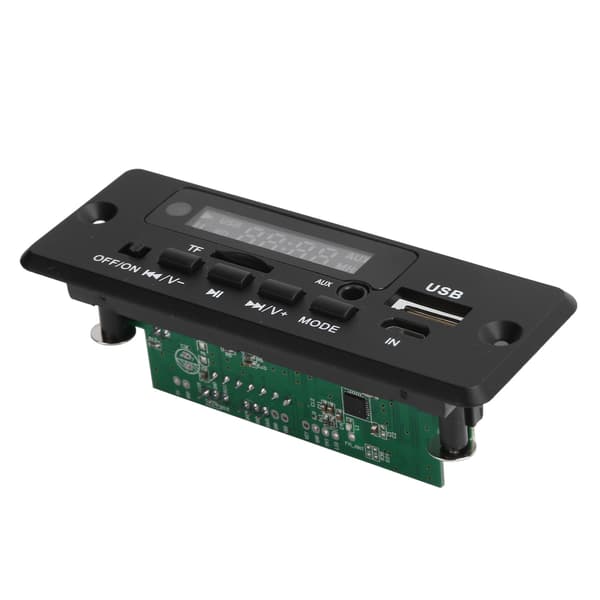

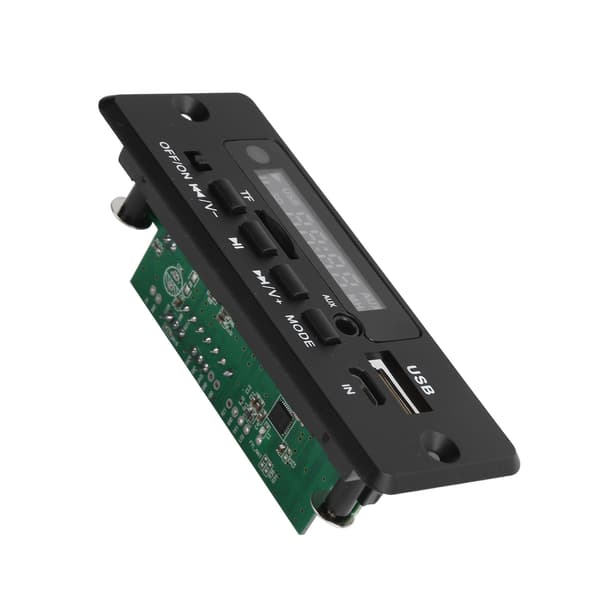

1. The decoder has 4 buttons with a power switch and has the functions of USB/memory card reading, FM radio, and AUX. 2. It supports USB/SD/FM/LINE/automatic switching and includes MP3/WMA/lossless WAV song decoding chip. 3. The decoder supports folder playback (convenient for selecting and playing different music categories: in playback mode, long press the MODE button on the remote control, the screen will display F01 and F02 simultaneously. 4. Supports 2.0USB/SD card switching, previous song, next song, volume adjustment, EQ, play/pause, single/full song/random/folder repeat, mute, shutdown, direct song selection. Supports FAT file system. 5. The MP3 decoder board supports MP1Layer3, MP2Layer3, MP3Layer3 versions of songs. MP3 songs 32‑320kbps songs. Lossless WAV is below 1411kbps for two channels. 6. Supports power-off memory function, which can memorize the songs and volume played before power-off. 7. Supports loop playback mode (long press the player): single loop (ONE)/folder loop (FOL)/full loop (ALL); if pressed to (FOL) in the current folder, only the entire song in this folder will be played in a loop. 8. Suitable for 2.0, 2.1 or 5.1 speaker amplifier boards. Turn on AUX audio input status, if there is a card on the product or if the U disk is powered on, it will play music directly.

Item Type: Decoder
Material: PCB
Working Voltage: DC 5V/12V (only one can be selected, and two sets of power supplies cannot be connected at the same time)
Working Current: 600mA-800mA
Output Amplitude: >700mV
Panel Size: Approx. 92x35x31mm / 3.6x1.4x1.2in
Hole Size: Approx. 75x27x31mm / 3.0x1.1x1.2in
Distance between mounting screw holes: Approx. 80mm/3.15in
Battery: 1 x CR2025

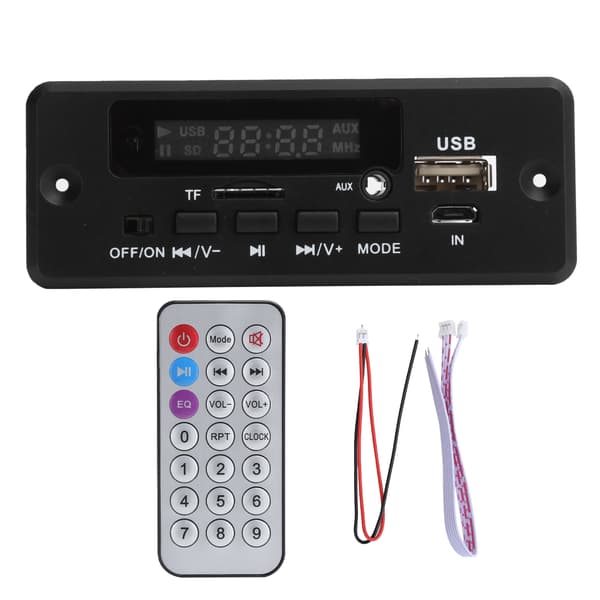

1 x Decoder

1 x Power Cable

1 x Connection Cable
