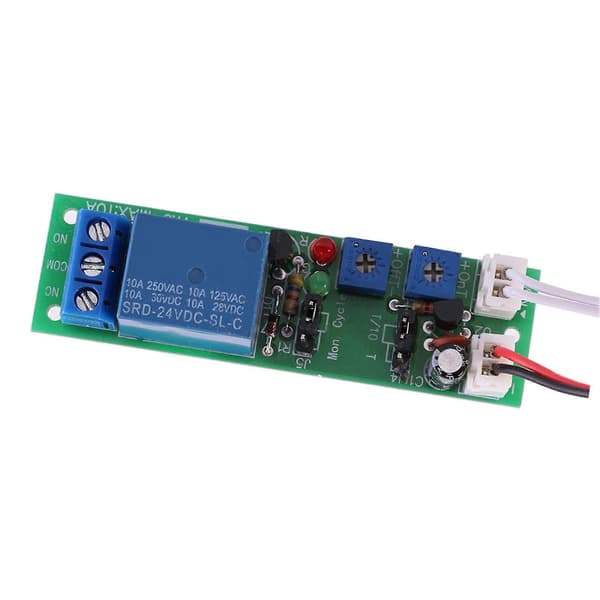

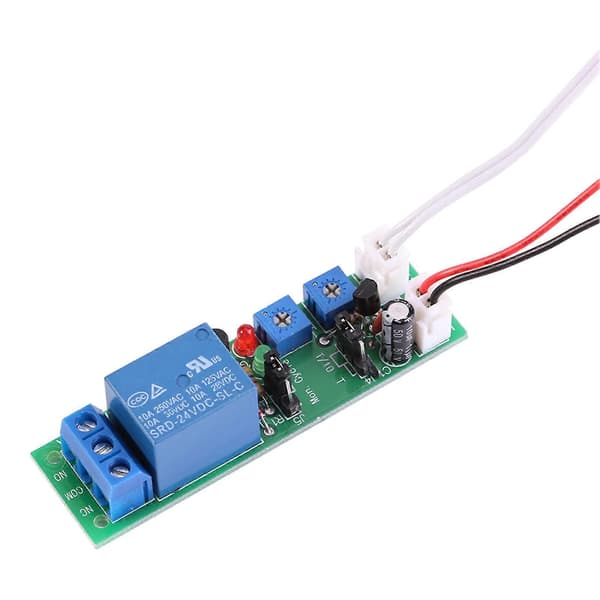

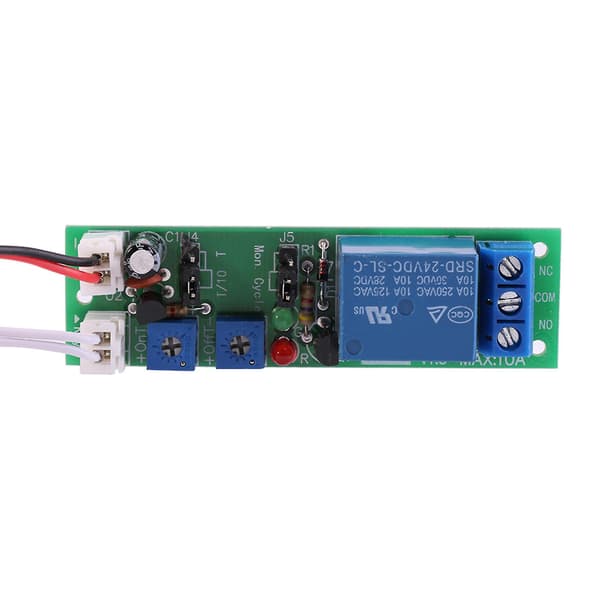

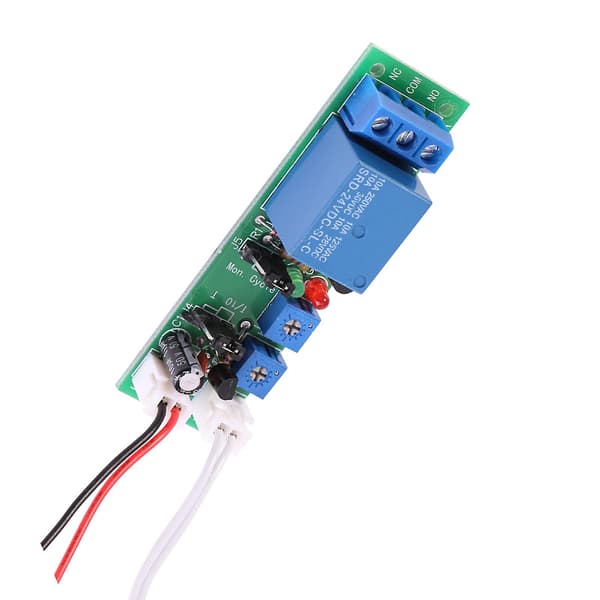

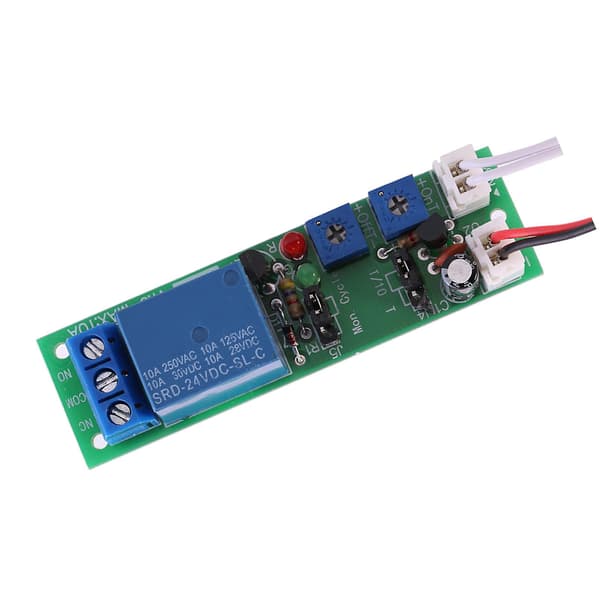

Features
There are many voltage and time ranges to choose from, both the power-on time and power-off time are adjustable
It is a high-precision timer relay module with stable and reliable performance
Widely used in timer-controlled equipment, machine recurring test circuits, intermittent pumps for aquariums, etc.
Supports 2 modes, the mono mode (once) and the cycle mode, and you can easily switch modes by adjusting the jumper
Connect 2 wires of \"Key\" if the module is to work repeatedly after power-on
Specifications: Type: DC5V,0-30min/DC12V,0-120min/DC12V,0-24h/DC24V,0-15min/DC24V,0-30min (Optional) Standby current: <10 mA.
Dynamic current: 45mA at 12V; 90mA at 5V; 30mA at 24V Contact: 1 group NO+NC.
Load capacity: 10 A (AC0-250V, DC0-30V).
Size: 70 x 20 x 18 mm/2.75 x 0.78 x 0.7 in.
Time accuracy: maximum value x 0.001.
Mon. Mode:
1. The module is powered on, when triggered, the relay is turned on, timer delay off.
2. If the delay process is triggered and triggered again, the delay is immediately interrupted.
Cycle Mode:
1. The module is powered on, when triggered, the relay is turned on, (T1) timer delay off. (T2) Time delay
On Such cycle. T1 and T2 are each set with two adjustable resistors.
2. If the delay process is triggered and triggered again, the delay is immediately interrupted.
Package includes: 1 x Timer Relay Module
