【Note】: 2-way touch switch. No common power, no WIFI function, not compatible with Alexa. You don't need a neutral wire. When installing, please distinguish between the front and back of the iron plate. Make sure the power is off before installing the panel.
【2-way touch switch】: Compatible bulb (Min 5W-Max 800W): Incandescent bulbs, fluorescent lamps, ordinary LED lamps, energy-saving lamps.
【Wiring instructions】: 1-way connects terminal L 1, 2-way connects terminal L 2, 3-way connects terminal L 3. Placed at positions L1, L2 and L3 refers to controlling the light bulb. 2-way can control a lamp in two different places in your home. It is often used at the top and bottom of stairs, at the bedroom door and at the headboard, etc.

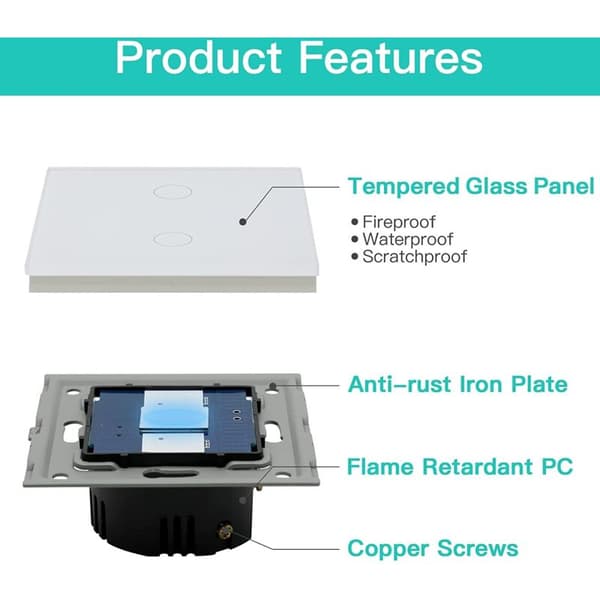

【High safety】: The high-quality tempered glass panel not only provides excellent scratch resistance and touch sensitivity, but also fire and water resistance, protecting your and your family's safety.

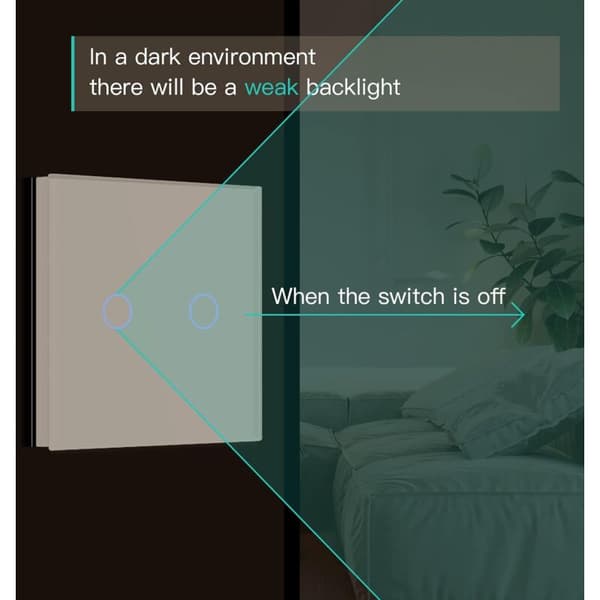

【Humanized design】: It automatically remains closed after a power outage. There will be a faint blue light when the switch is off, so you can find the switch even in the dark.
Product name: Touch switch.
Control mode: Single wire control
Input voltage: 100-240Vac 50/60Hz
Output power: 5-300 W/single output
How it works: Manual touch
Touch life: 100,000 times
Working environment temperature: 55 degrees, relatively stable at 95%
Wonderful effect: 0.5 watts
Indicator color: On - red, Off - blue
Panel material: Tempered glass panel
Box material: PC bottom + flame retardant ABS
Panel color: White
Installation of lamps: wattmeter 5W or smart lamps to install
: Bubble lamps, incandescent lamps, LED lamps, incandescent lamps, energy-saving lamps, etc.

Power: 0.5
Material: Glass
Color: White, Red
Warranty: 2.0
Type of electrical connection: Red
Type of switch: Automatic
NF certification: NF240
