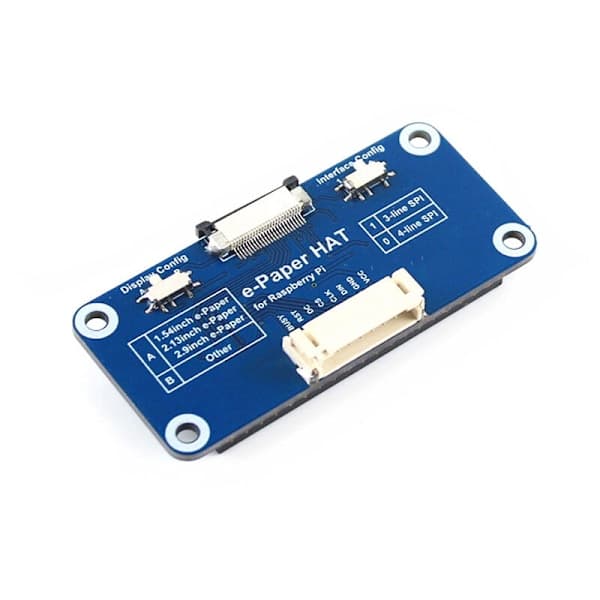

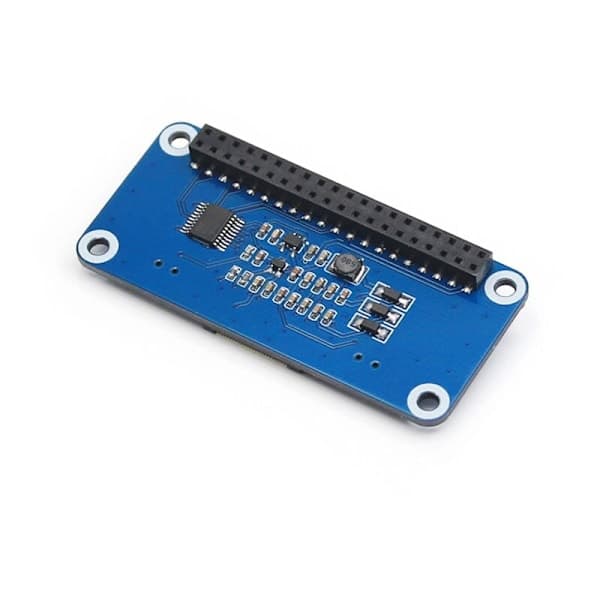

[Product Features]: Based on the standard interface design of Raspberry Pi, compatible and can be directly inserted into Raspberry Pi 2 generation B / 3 generation B / Zero / Zero W
Introduce SPI control interface, can connect Raspberry / Arduino / Nucleo and other main control boards
Provides complete support information manual (example programs such as Raspberry / Arduino / STM32)

[Product Parameters]
Operating voltage: 3.3 V
Communication interface: 3-wire SPI, 4-wire SPI
[Interface Description]
VCC: 3.3 V
GND: GND
DIN: SPI communication MOSI pin
CLK: SPI communication SCK pin
CS: SPI chip select pin (active low)
DC: Data control pin / command (high level means data, low level means command)
RST: external reset pin (low reset)
BUSY: busy status output pin (low level means busy)
Color: blue
Material: ABS
Size: 55x21x15mm

Package Contents:

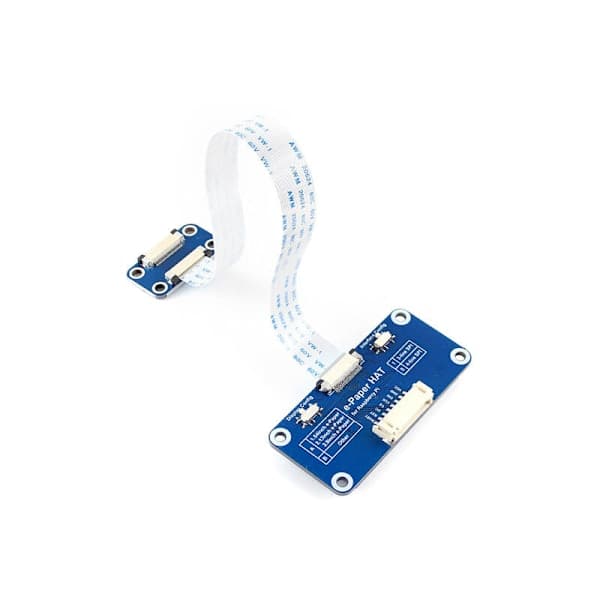

1 x E-Paper Driver Board Module

Only the above package content, other products are not included.
