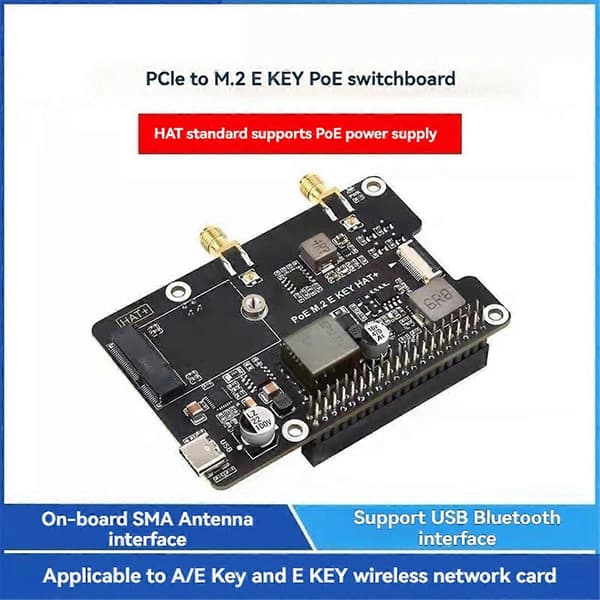

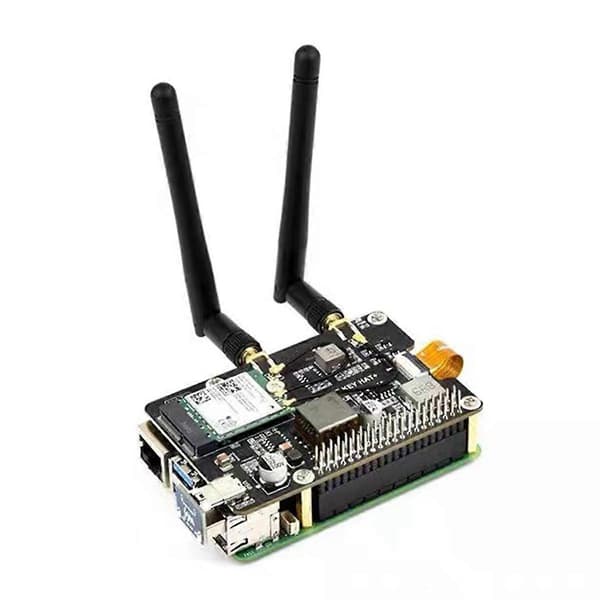

Built-in SMA internal antenna interface, supports USB Bluetooth connection and can input Bluetooth signals to Raspberry Pi via USB adapter card (USB Bluetooth connection function is limited to use after connecting to wireless network card module)

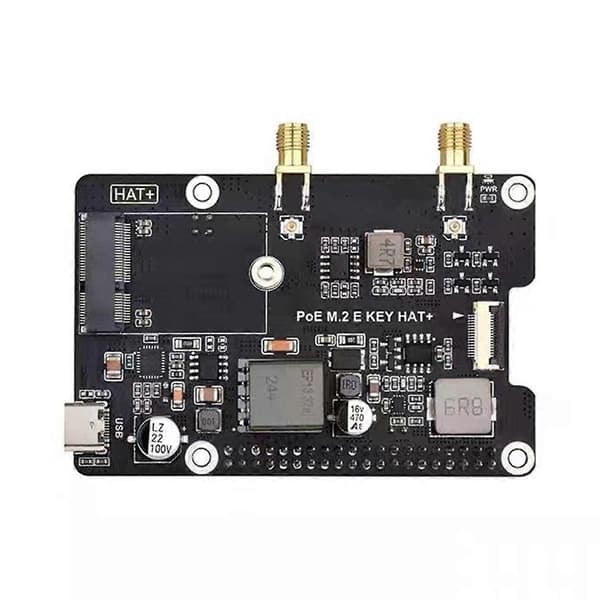

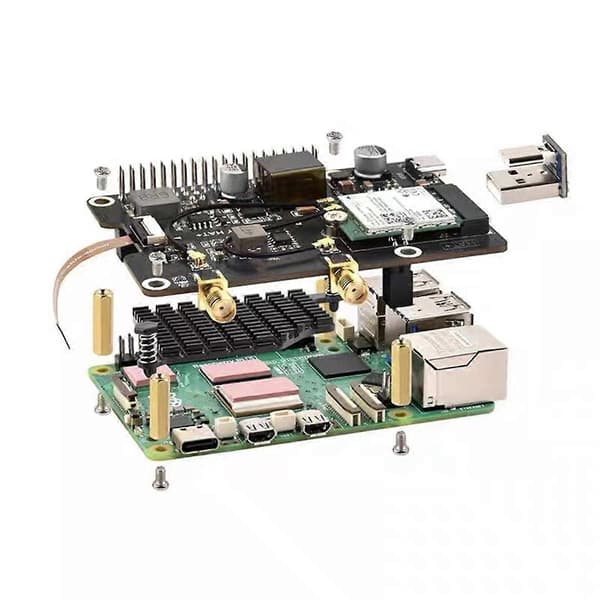

Suitable for Raspberry Pi5, can be connected to PI5 via 16PIN cable, based on Raspberry Pi40PIN GPIO interface design, top pin, convenient to connect to other Raspberry Pi expansion boards

Supports PoE Ethernet power supply, only needs a network cable to connect to PoE device to make Raspberry Pi realize network and power supply

Built-in multiple power supply interfaces, built-in 5V and 12V pin power supply interfaces, 5V interface total power up to 4.5A (12V and 5V output total does not exceed 25W), meets the power supply for Raspberry Pi and other devices

Suitable for Raspberry Pi 5, supports NGFF (M.2 EKey) wireless network card



for Waveshare

PoE power input: 37V-57V DC input

Power output: GPIO pin header: 5V 4.5A (MAX)

2P pin header: 12V 2A (MAX)

Network standard: Supports IEEE 802.3af/at PoE

PCle interface type: M.2 E Key

The appearance and printed words of the product may vary depending on the batch, but this does not affect the use

Color: Black

Material: PCB

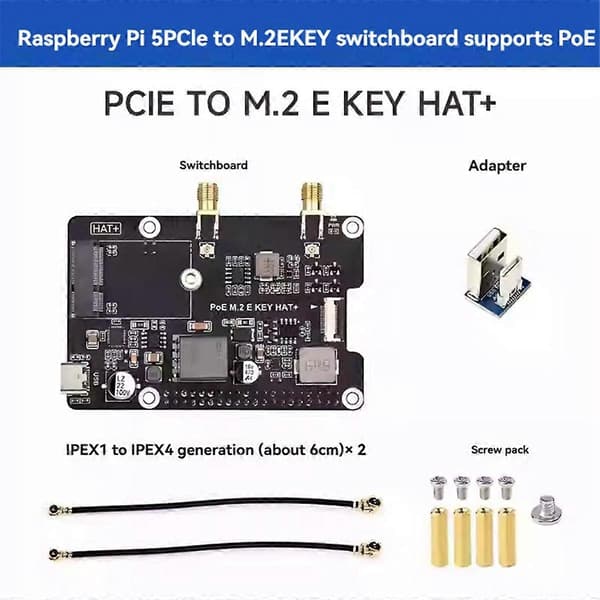

Package contents:

1 x PoE M.2 E KEY HAT+

1 x USB Type-C Adapter (E)

2 x IPEX1 to IPEX 4

1 x 16P cable-40mm

1 x Screw pack



Only the above package content, other products are not included.
