General Description

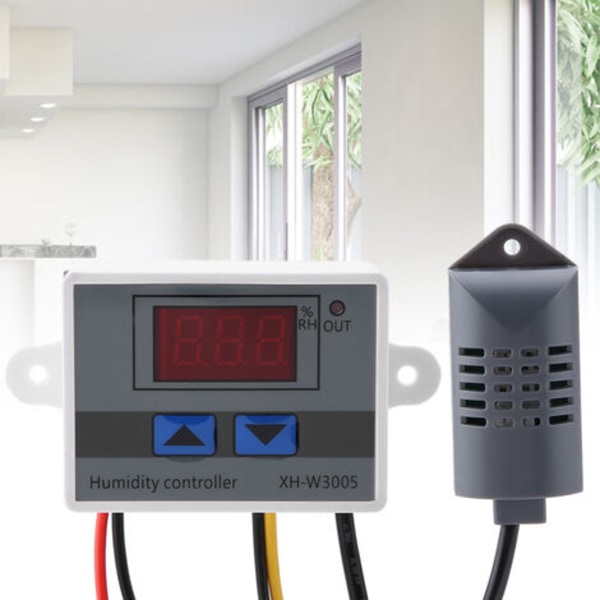

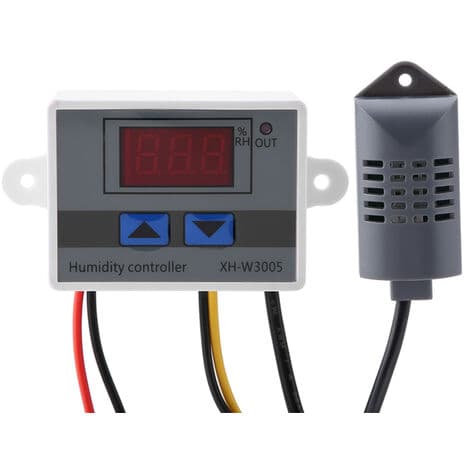

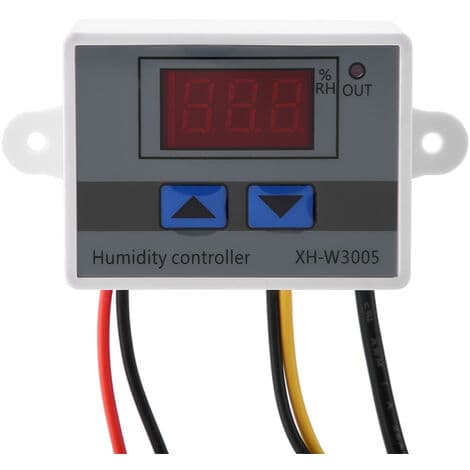

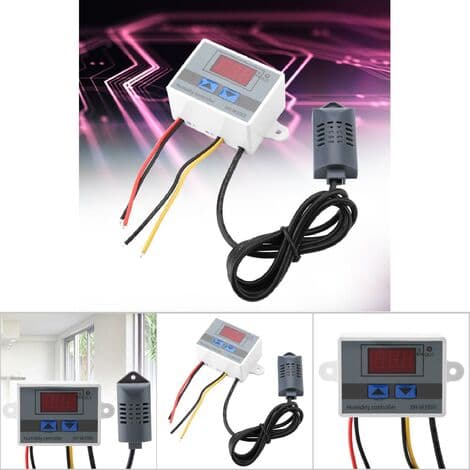

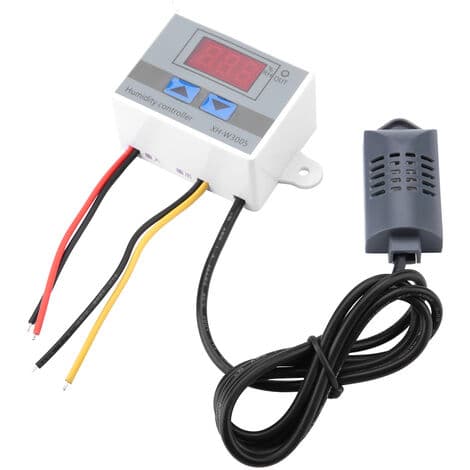

The XH-W3005 digital humidity controller is a high-quality, durable, and easy-to-use device. It features a simple control panel with two buttons for intuitive operation. With a measurement accuracy of 0.1%, it offers a wide humidity measurement range from 0% to 99% RH, making it suitable for a variety of applications. This model also offers multi-voltage selection, allowing you to choose between 12V, 24V, and 220V as needed.

Technical Specifications

Model: XH-W3005

Weight: 68g / 2.4oz

Input Voltage: 12V, 24V, 220V (optional)

Humidity Range: 0% ~ 99% RH

Humidity Control Accuracy: 0.1% RH

Load Power: 120W / 240W / 1500W

Output Type: Direct Output

Mounting Hole Distance: 73mm / 2.9in

Size: 60 x 45 x 31mm / 2.4 x 1.8 x 1.2in

Installation

To install the controller, connect it to the circuit and power supply. The digital display will show the starting temperature for the current humidity setting.

Usage

To set the humidity, press the \"up\" button to display the starting temperature. Press and hold the \"up\" button for about 3 seconds to make the starting humidity number flash, which you can adjust with the up and down buttons. To set the stop humidity, press and hold the \"down\" button for 3 seconds to stop the flashing number. To restore factory settings, press and hold the up and down buttons simultaneously while the device is powered on until the digital display shows 888.

Other Information

Package List: 1 x Digital Humidity Controller

Note: Do not power on if the output end is not properly connected to avoid unnecessary problems.
