Voltage: 36V
Rated power: 1000W
Compatible for: 700-1000W motor
Color: Silver
Material: metal

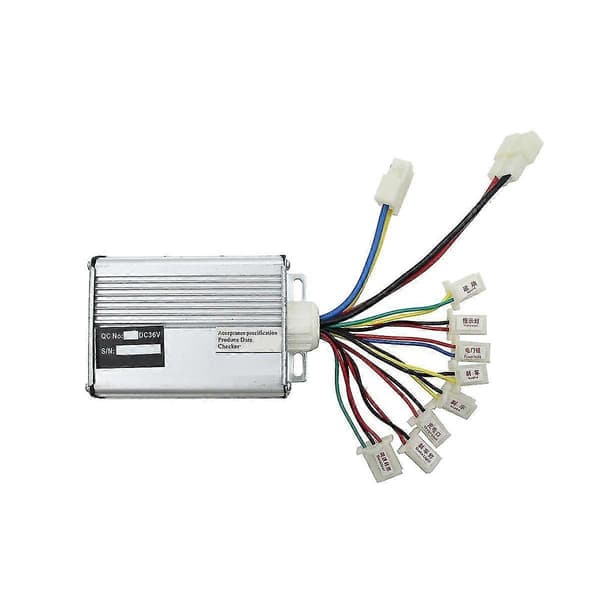

Controller wiring instructions
1. For the motor to operate, you must first connect the first four connectors, the first controller on the two thicker blue and white lines connected to the motor, where the blue line on the red motor, white line to the motor's black line.
2. Next, the controller's two red and black lines are connected to the battery, then the battery's cathode, black line connected to the negative. The third re-connected to the speed control to the joints, (speed control turn to have three lines, be on it, black line on the black line phase). connected to the electric lock, open the door locks, twisting the motor can run.
Note: Do not take the wrong power cord, otherwise it will burn.
Different batches may cause differences in product appearance, text, and color, which does not affect use
Package Contents:

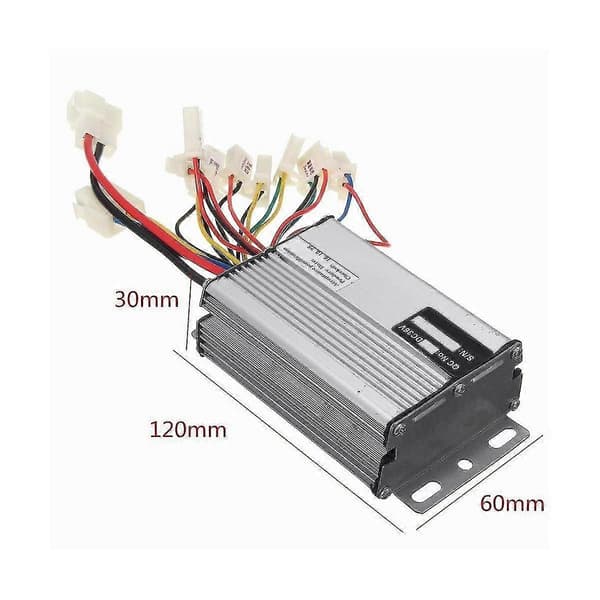

1 x Brushed Controller
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
