General Description

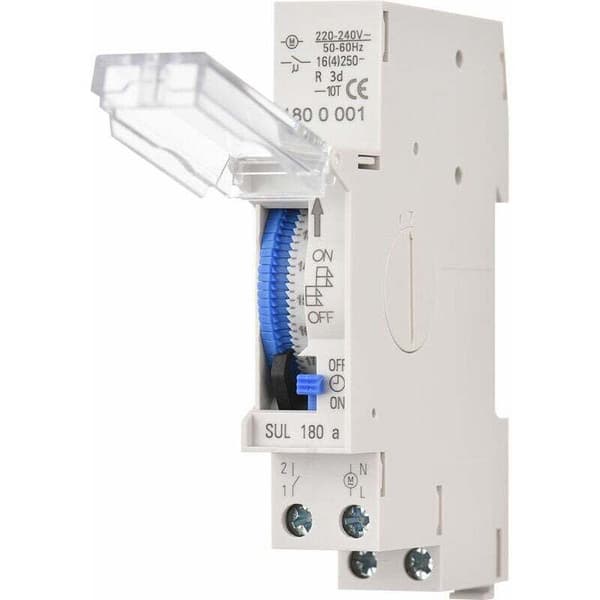

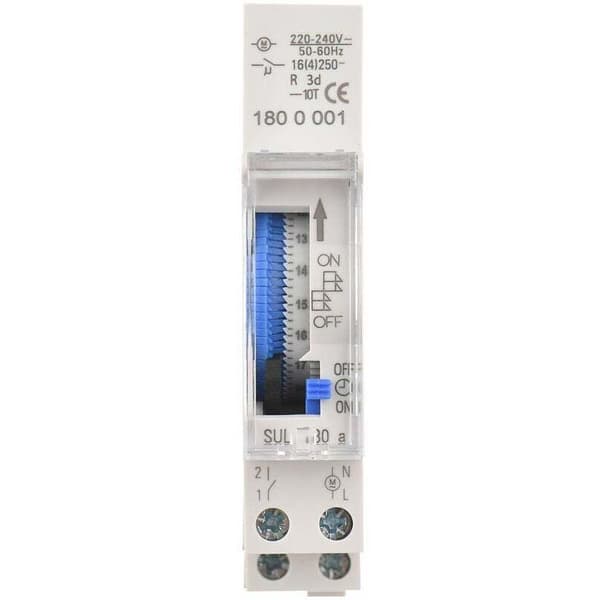

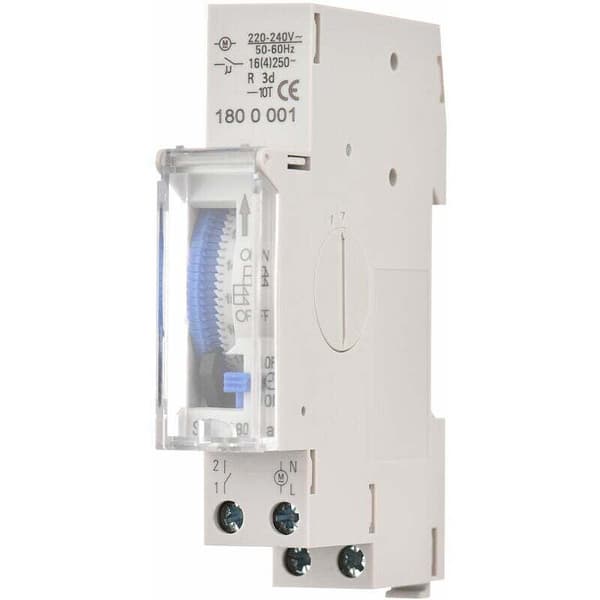

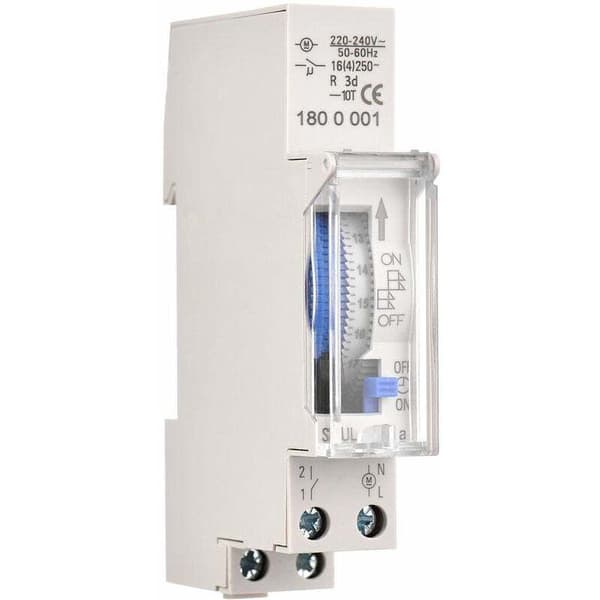

The programmable mechanical timer is designed to make your life smarter and more convenient. It is easily mounted on a DIN rail and offers great flexibility in use.

Technical Specifications

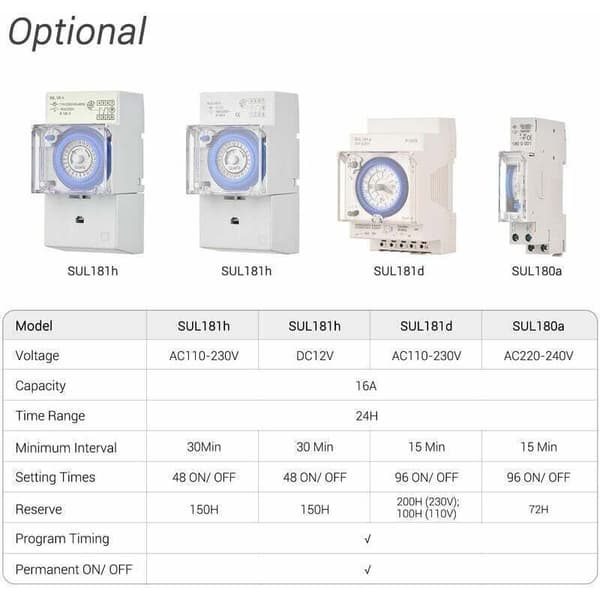

Model: SUL181h, SUL181d, SUL180a

Voltage: AC110-230V, DC12V, AC220-240V

Material: ABS

Built-in battery: Ni-MH 1.2V 40mAh

Contact capacity: 16A

Power: 1W to 2W depending on model

Frequency: 45-60Hz (AC110-230V), 50-60Hz (AC220-240V)

Time interval: 24H

Minimum interval: 15 to 30 min depending on the model

Reserve time: 72 to 200 hours depending on the model

Item size: 54 * 65/68 * 90/110 mm

Package weight: 85 to 192 g

Compatibility and Accessories

Compatible with various devices such as street lights, ventilation systems, fountains, and diffusers.

For indoor use only in dry locations.

Installation

DIN rail mounting, to be performed by a qualified electrician.

User manual included for detailed instructions.

Operation

Mechanical timer with manual switch.

Operates 24 hours a day with synchronization and permanent on/off functions.

Ideal for automating lighting and other equipment according to a set schedule.

Other Information

Dust cover to extend lifespan.

Size and color may vary slightly due to manual measurement and lighting conditions.
