Specification







Size (approx.): 35x20.8x14.8mm (L*W*H)



Cable length (approx.): 150mm AWG#18



Brand: NK



Model: NK-301F



Voltage range: AC 80V~277V



Rated voltage: AC 120V/220V



Rated power: 200W/400W



Rated frequency: 50/60Hz



Power consumption: 0.5 Max



Sensitivity: 10-20LUX On / 40-70LUX Off



Anti-jamming Delay: About 12 Seconds



Ambient temperature: -25 ~ +70



Relative Humidity: 99% RH



Inductive Head Rainproof Class: IP65



Lifespan: More Than 5000 Times

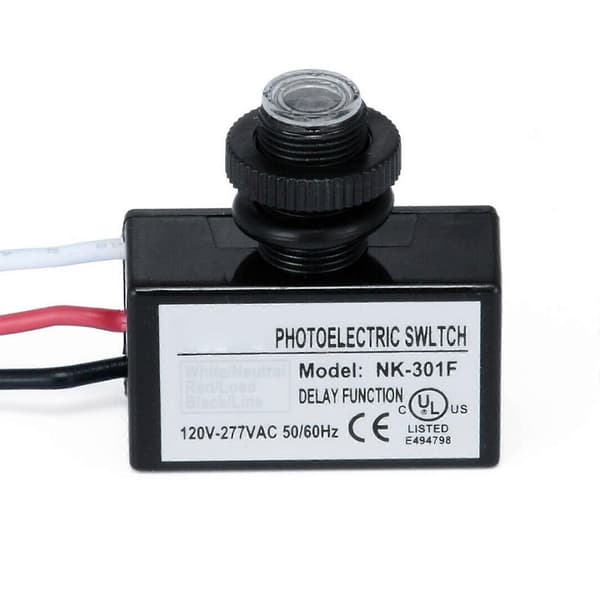

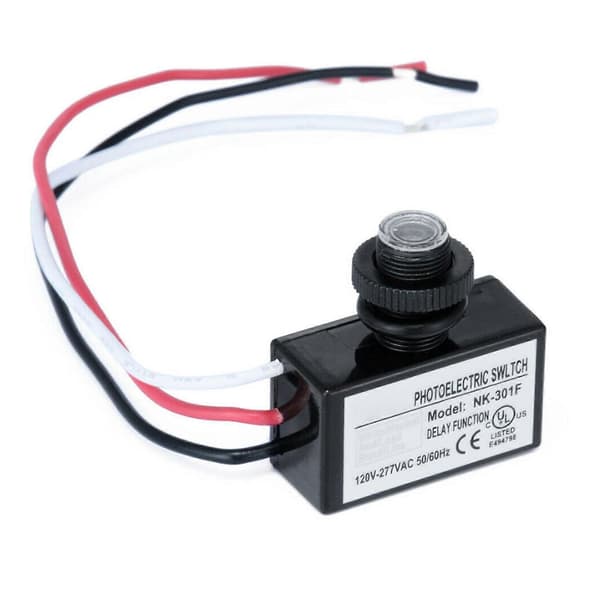

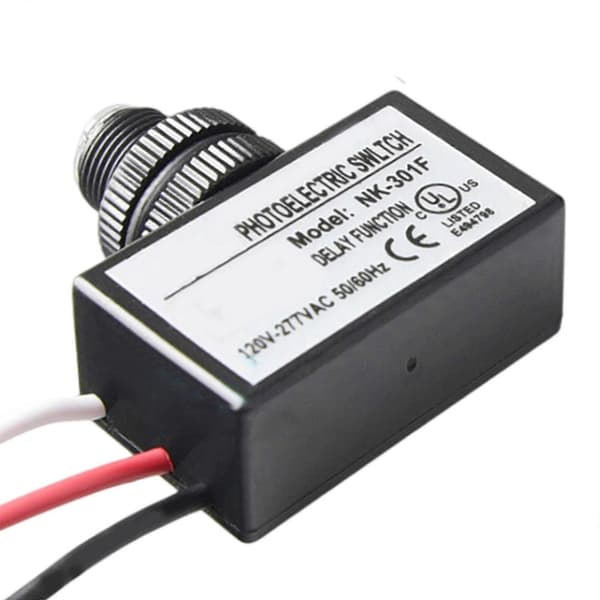

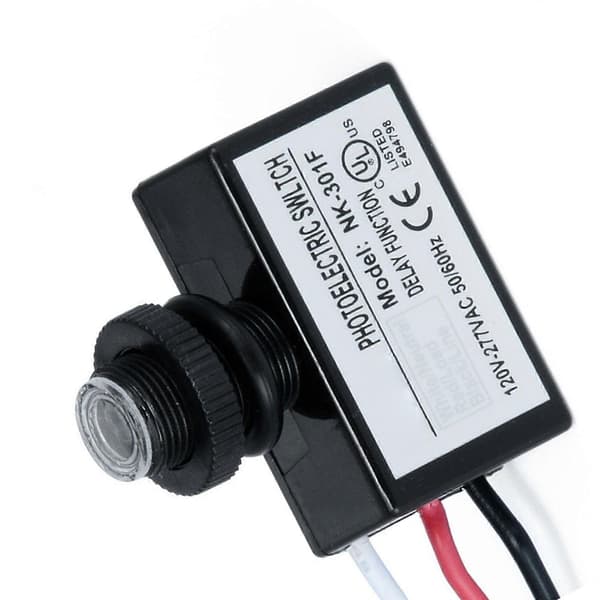

NK-301F AC80~277V Photocell Switch Photocell Recessed Button Photocontrol Waterproof UL



CE certification, UL certification.



Small volume light controller is easy to install.



Save energy, safe and reliable, long lifespan.



This photocell sensor is perfect for street lights, wall fixtures, barn lights and other outdoor fixtures that you need to have a dusk-to-dawn function.



Internal IC import components, program control circuit anti-interference design, the same outdoor light conditions, synchronous opening of multiple sensors, induction precision, high sensitivity.



Wiring method:



White Line + Black Line Connection (Input)



White Line + Red Line Connection (Output)



The White Line is the common line





Tips:

Please allow 1-3cm error in measurement.

Photo color might be a little different from the actual product due to color display of different monitors.



Product Includes:

1x Photocell Switch
