1, Test Cable: The network cable tester is suitable for RJ45, RJ12, RJ11 cables, and has good practicality. 2、Automatic Scanning: Adopts automatic scanning mode, with sensitive response and fast testing, which is safe and reliable. 3、Durable Material: The shell is made of ABS material, which is anti-drop and non-slip, and can be used for a long time. 4、Battery Powered: Uses DC 9V laminated battery power supply (not included), with convenient power supply, suitable for various use scenarios. 5、Compact Size: The streamlined shape conforms to the ergonomic design, compact and portable, convenient to carry.

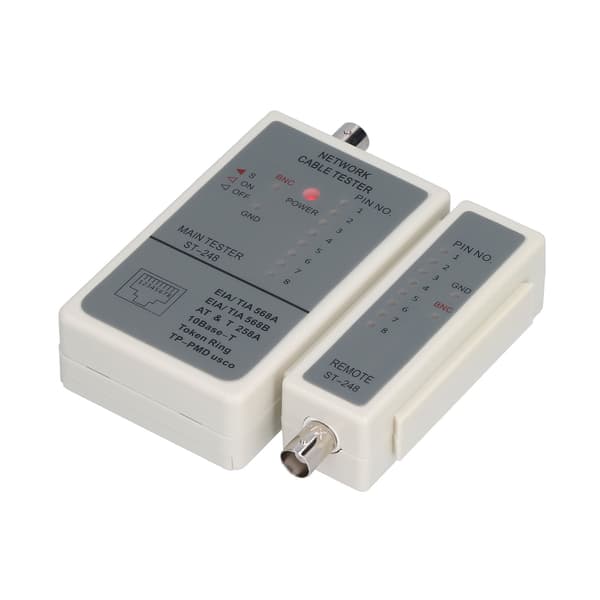

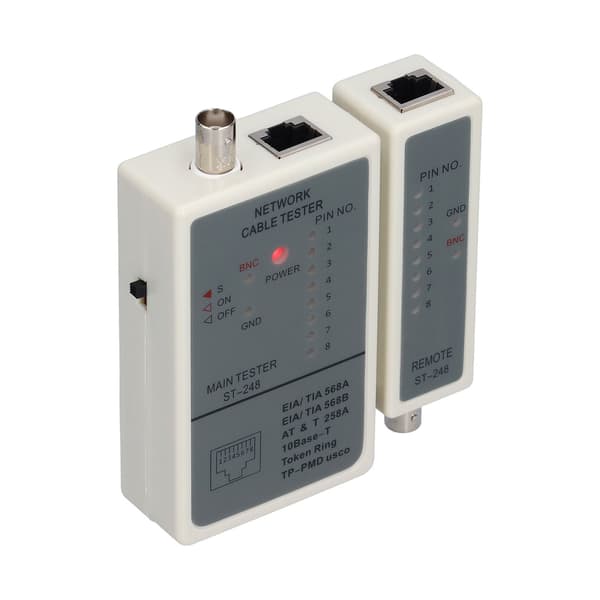

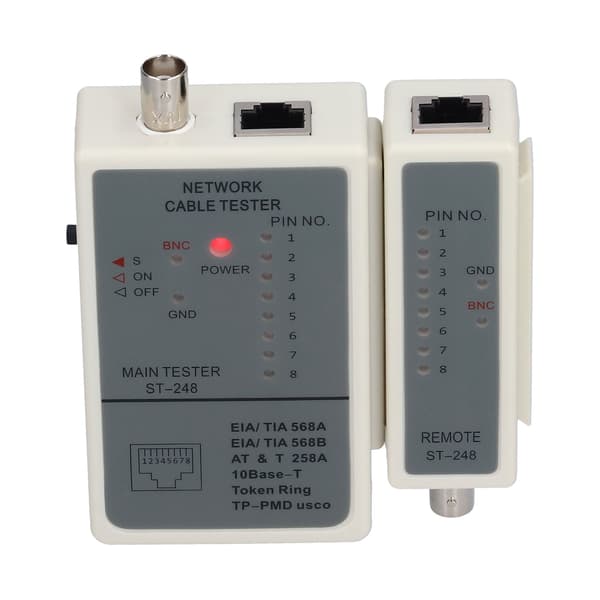

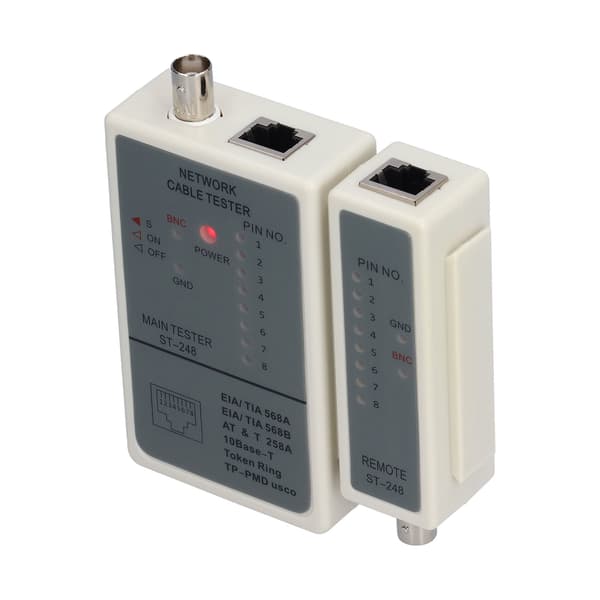

Item Type: Cable Tester
Material: ABS Shell
Model: 248
Test Cable: RJ45, RJ12, RJ11
Power Supply: DC 9V laminated battery (delivery without battery)
Power Consumption: 25MA

Test Methods:
1. Test the twisted pairs 1, 2, 3, 4, 5, 6, 7, 8, g one by one (pair) to determine which (pair) is wrong, short circuit or open circuit.
2. The switch is closed, ON is the normal test speed, S is the slow test speed.
3. Twisted pair test: Turn on the power, plug the network cable into the main tester and the remote tester, and the host indicator lights will flash from 1 to g one by one, as shown in the figure below:
Main Tester: 1-2-3-4-5-6-8 - G
Remote Tester: 1-2-3-5-6-7-8-G (RJ45), 1-2-3-4 (RJ11)
If the wiring is not normal, the following will be displayed:
a. When there is a network cable, e.g. Line 3 is broken, the lights of the main test and remote terminal No. 3.
b. When multiple lines are not available, multiple lines will not light up. When the network cable is less than 2 lines connected, the light will not light up.
C. When the two ends of the network cables are out of order, for example, 2, 4 cables are out of order, the display looks like this:
The main tester remains unchanged: 1-2-3-4-5-6-8 - G
The remote terminal is: 1-4-3-2-5-6-8 - G
d. When the network cable has 2 short circuits, the main tester does not light up, and the two wires of the remote terminal show that the short circuit lights are dimly lit. If there are more than 3 wires (including 3 wires), all short circuits will be short-circuited. The lights of multiple line numbers go out.
4. To test the distribution frame and wall-mounted module, two matching jumpers (such as 110p4-RJ45) are required to lead to the tester.

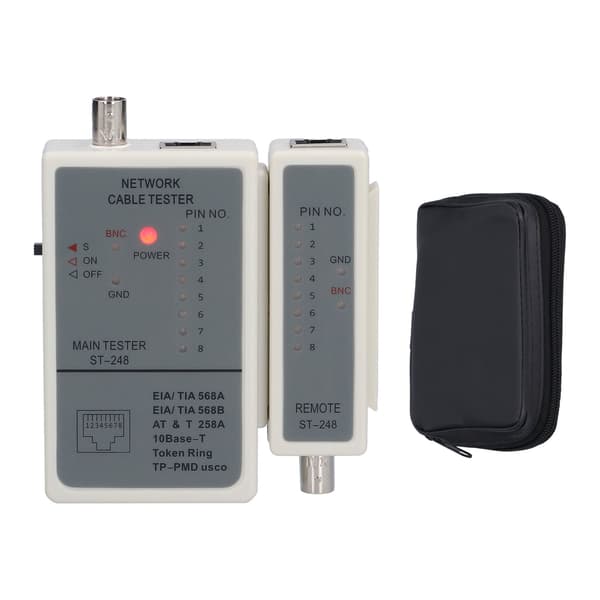

1 x Cable Tester

1 x Leather Case

1 x English User Manual
