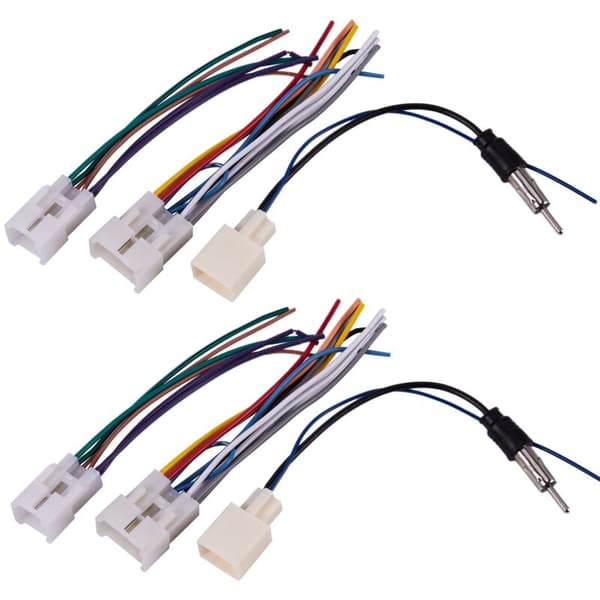

Wiring harness with antenna cable adapter for
For installation of car stereo / radio / CD / DVD player
Compatible with most TOYOTOA car stereos / stereos / CD / DVD players.

CONNECTION PINS:

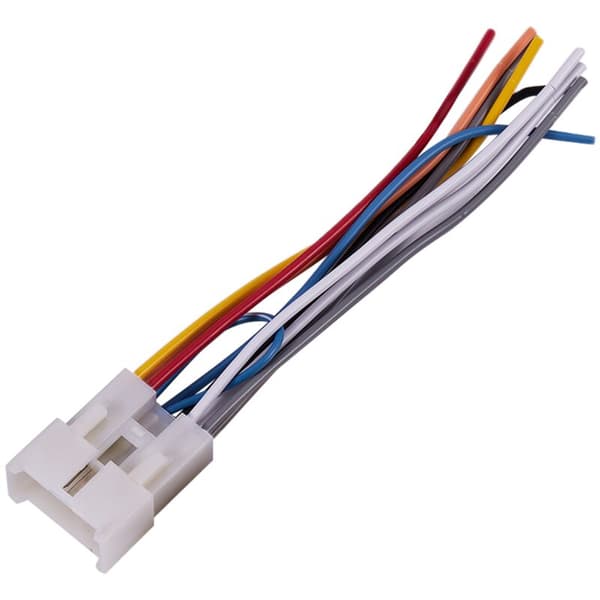

Power cables:
(1) Yellow: 12V constant
(2) Red: 12V accessory
(3) Black: Ground
Control cables:
(1) Orange - Dimmer/Instrument lighting
(2) Blue - Automatic antenna control or Subwoofer/amplifier control

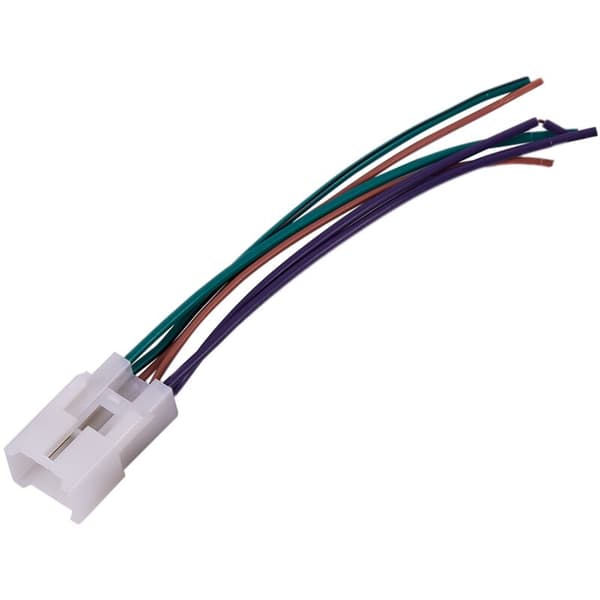

Speaker cables:
(1) Green - Left rear speaker (+)
(2) Green with black stripe - Left rear speaker (-)
(3) White - Right speaker (+)
(4) White with black stripe - Right speaker (-)
(5) Purple - Right rear speaker (+)
(6) Purple with black stripe - Right rear speaker (- )
(7) Gray - Left speaker (+)
(8) Gray with black stripe - Left speaker (-)
3. Additional notes:
The harness may not contain all cable colors listed above.
The harness does not include cables for steering wheel control. You must find your car's steering wheel control cables and then connect them to the steering wheel control cables that came with your radio/stereo.
Color: Mixed color
Material: plastic housing % metal core

Package content:
4 x Wiring harness
2 x Antenna cable adapter

Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3 cm.
