1. Measurement content: Coating thickness gauge for measuring the thickness of metal plating and coatings, such as paint on steel, paint on aluminum or copper, and anodic oxide coatings. Automatically detects the properties of the substrate. 2. Easy-to-read display: The thickness gauge has a large display that shows metal type and operating mode, quantity, cell status, and readings in µm or mil. 3. Check the thickness: When buying a car from a dealer, check the car's paint with the thickness gauge to ensure that the paint thickness is approximately the same on each panel. 4. Light weight: The total weight of our small coating thickness gauge is light and very portable, you can always take it with you. 5. Wide range of applications: The coating thickness gauge is widely used in manufacturing, metal processing industry, chemical industry, etc. It can also work stably in laboratories, workshops, and outdoors. Bathroom accessories, furniture, cabinets and cupboards, computers, appliances, and toys.

Item Type: Thickness Gauge
Material: ABS
Batteries: AAA batteries x 2 (supplied without batteries)
Battery power indication: Yes
Automatic shutdown function: Yes
Measurement range: 0-2000um
Measurement accuracy: ± (3% + 1um)
Minimum convex arc: Approx. 5mm / 0.2 inches
Minimum concave arc: Approx. 25mm / 1 inch
Minimum measuring area: Approx. 20mm / 0.8 inches
Maximum measurement speed: 2 readings per second
For FE or NFE

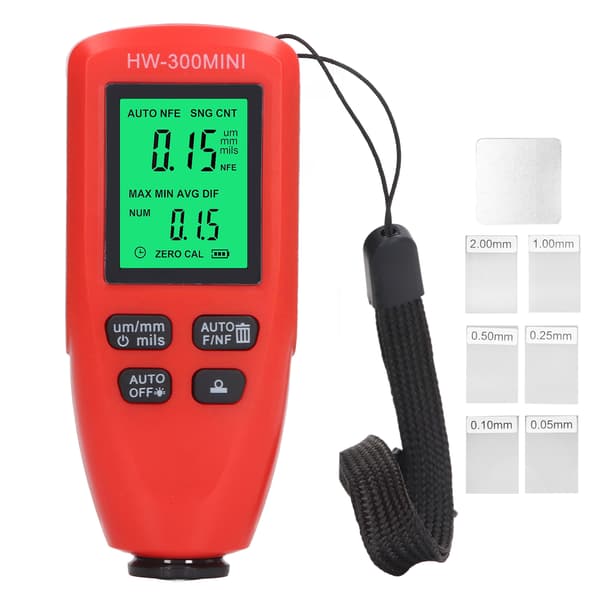

1 x Coating Thickness Gauge

1 x Substrate (iron or aluminum)

6 x Calibration sheets

1 x Instruction manual
