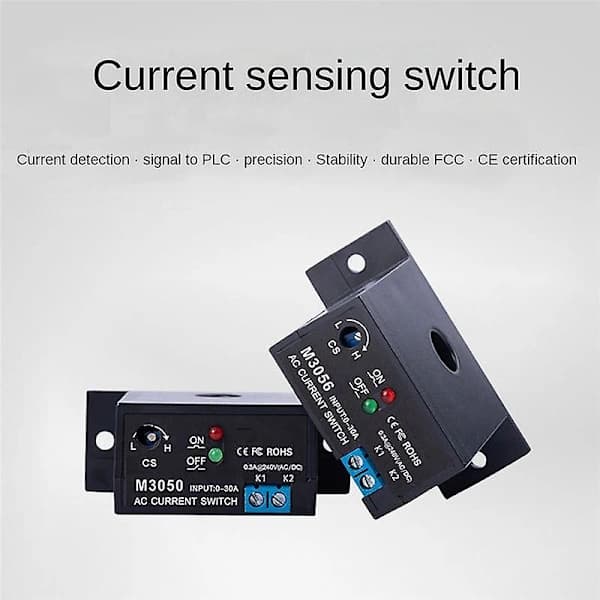

Mutual inductance current monitoring, safety isolation of input and output, self

The monitored current range is up to 30A; the monitoring threshold is adjustable within 0.2-30A.

The hysteresis is less than 1%. It can be used in strong magnetic environment.

Contactless electronic switch with fast reaction and unlimited number of on-off operations.

The housing is made of environmentally friendly flame retardant PC material.



Monitoring current: 0.2-30A AC

Contact capacity: 0.3A@240V AC/DC

Diameter of perforation line: 10MM

Dimensions: 65x25x47MM

Maximum leakage value: 0.1MA

Maximum overload capacity: 100%

Operating temperature: -20-55Celsius

Hysteresis: less than 1%

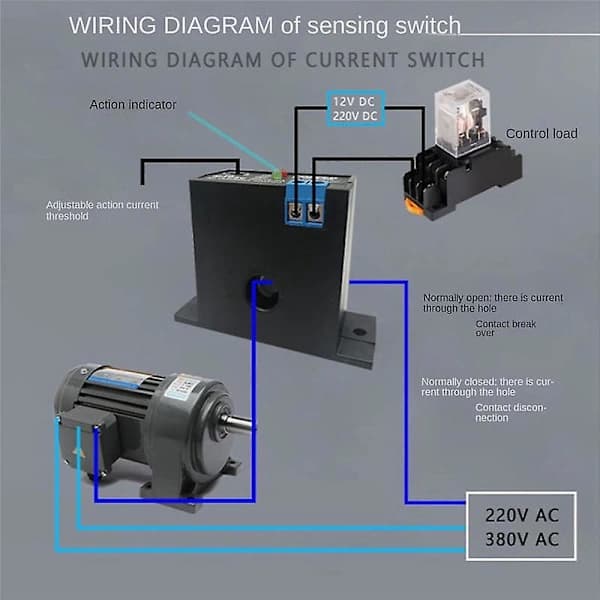

Working principle:

Normally open: M3050

When the current in the perforation line exceeds the set value, the red light turns on and the output signal closes; when the current is below the set value, the green light turns on and the switch opens.

Color:As shown

Material:plastic



Package Contents:

1 x Current Detection Relay Induction Relay



Only the above package content, other products are not included.
