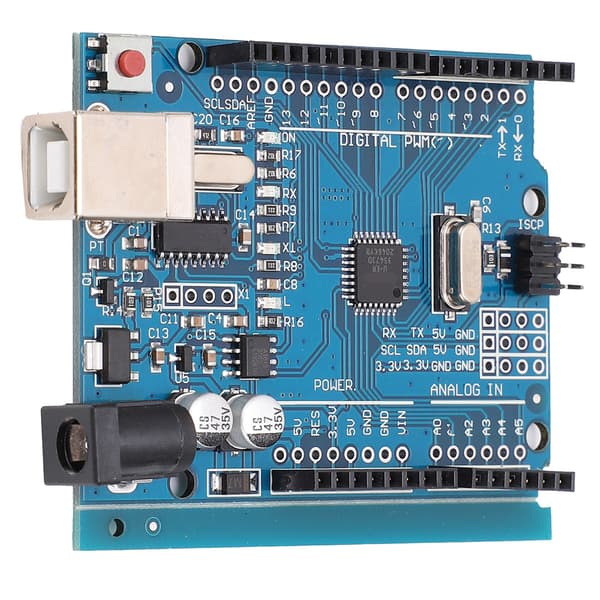

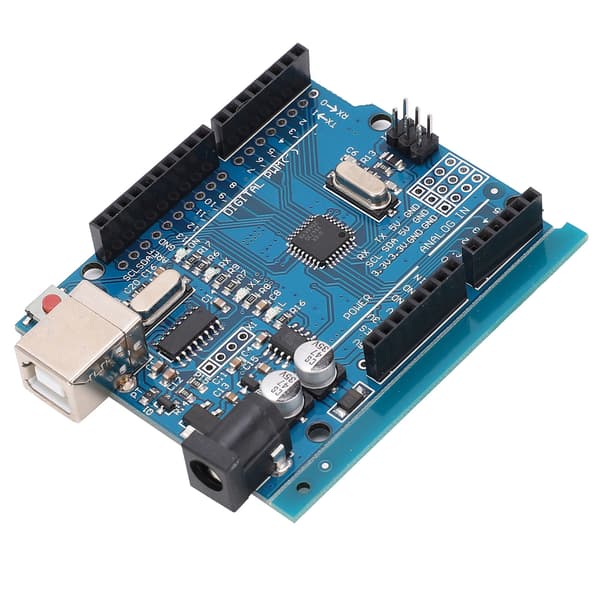

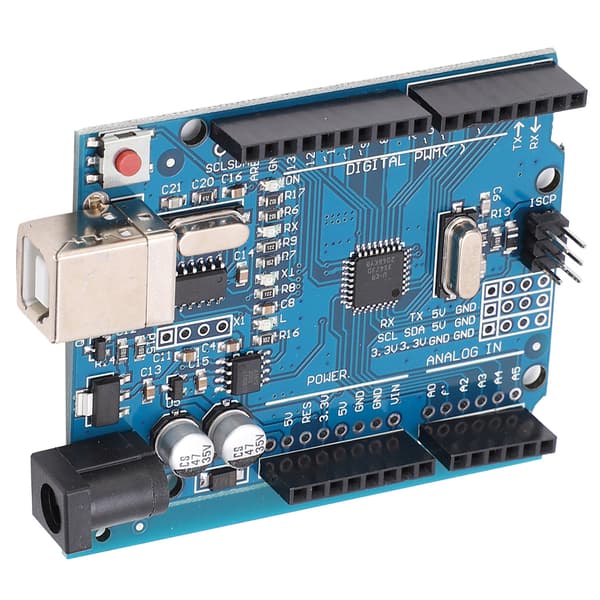

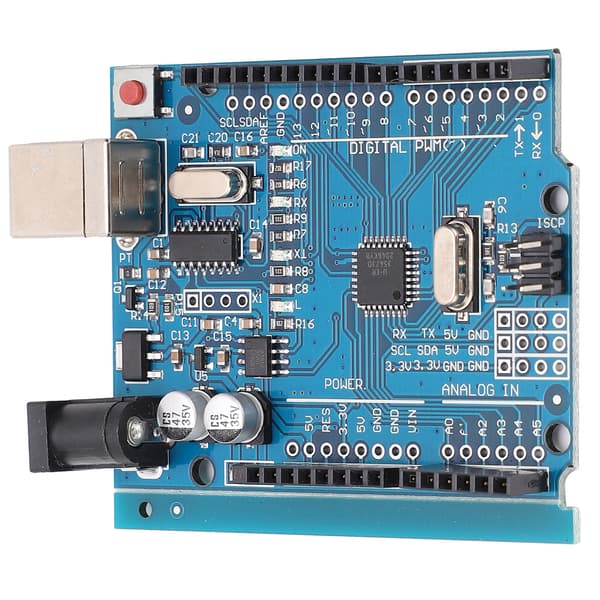

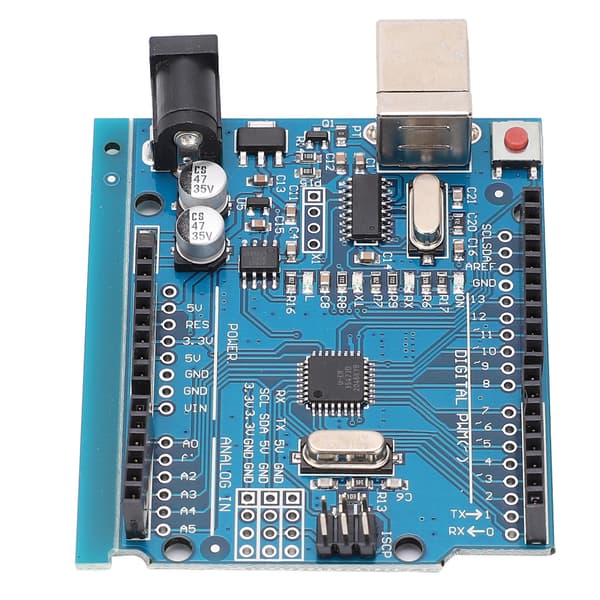

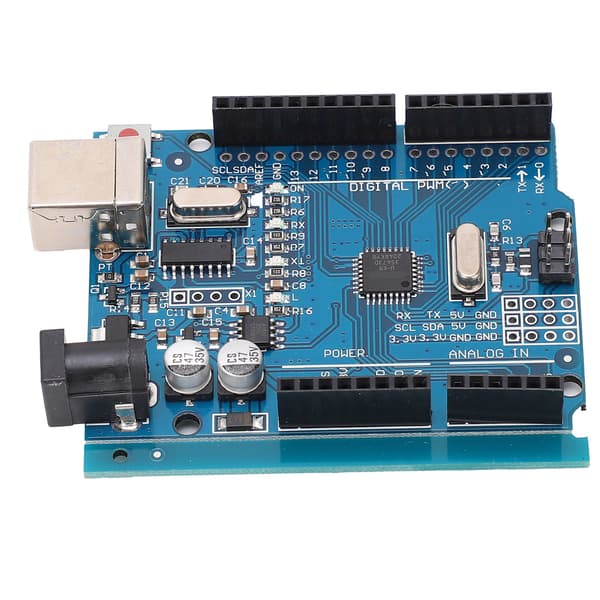

Development Board Module with Microprocessor Controller for R3

Development Board Module with Microprocessor Controller for R3

Name: Development Board Module with Microprocessor Controller for R3
SKU: HY-SY-082715328
Price: 200 SEK
Availability: InStock

200 kr

I lager

Ons, 9 sep - tis, 15 sep

30 dagars öppet köp

Inga avgifter tillkommer efter köpet

Betala direkt eller på faktura med Qliro

Produktbeskrivning

Welcome to our store!

1. Open the circuit diagram of the original design, the development software interface is free to download, or you can modify it yourself according to your needs, the download program is simple and convenient. 2. You can easily use sensors and various electronic components to connect (such as: LED lights, buzzers, buttons, photoresistors, etc.) to create a variety of interesting works. 3. With a high-speed microprocessor controller, the development interface and environment are very simple and easy to understand, which is very suitable for beginners to learn. 4. High-quality PCB material can ensure the durability and stability of the product. 5. Support ISP download function, no external power supply is required when connected to the computer's USB, external power supply is 5V~9V DC voltage input.

Item Type: Development Board Module for R3
Material: PCB
Performance
Digital I/O Digital input/output terminals are 0~13 in total.
Analog I/O Analog input/output terminals are 0~5 in total.
Support ISP download function
Input voltage: No external power supply is required when connected to the computer's USB, external power supply is 5V~9V DC voltage input.
Output voltage: DC 5V DC voltage output and 3.3V DC voltage output.
Uses for Atmel microcontroller
This version is optimized from the original version. It is mainly designed for foreign customers with high requirements for product quality and function. It not only ensures complete compatibility with the original version, but also makes it easy for everyone to use.
Advantage:
1 Thoroughly solves the incompatibility and instability of traditional boards on for win7/win8 systems
2. The pin header is added, which is convenient for everyone to use jumper cable
3. Replaced for 16u2, halved the cost, and consumers get the greatest benefit
How to use:
1. Download
2. Connect the development board, the driver will be installed automatically
3. Select the board in the die
4. Select the COM port, this can be searched in my computer, the port in the development board at this time
5. It is best to select first, and burn the built-in routine program into it

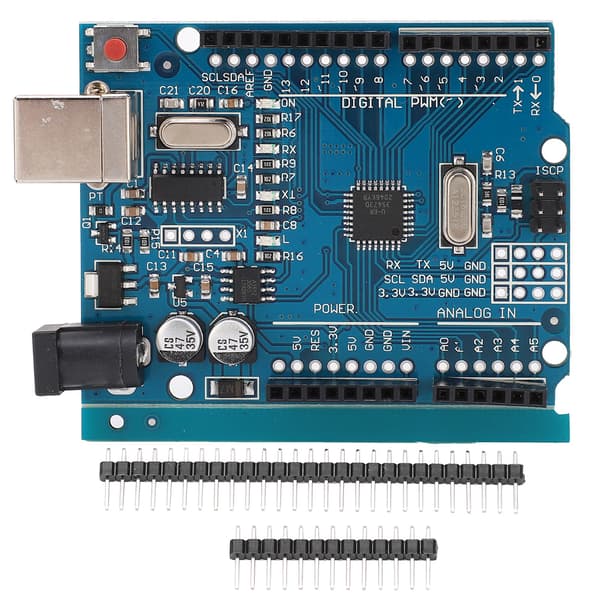

1 x Development Board Module
1 x Pin Header
