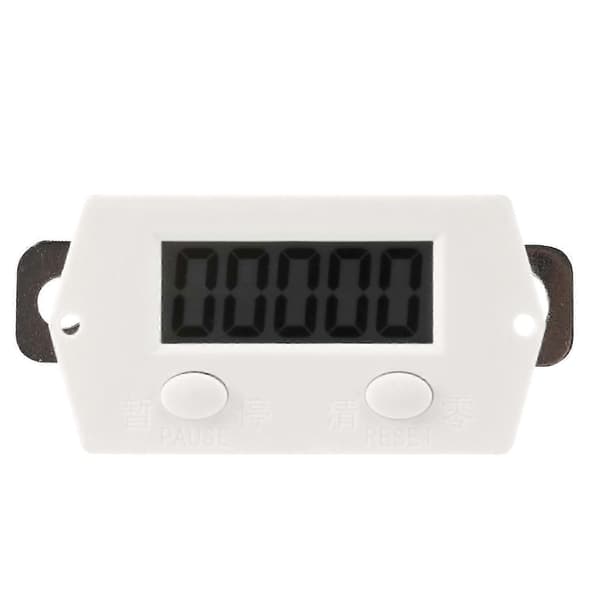

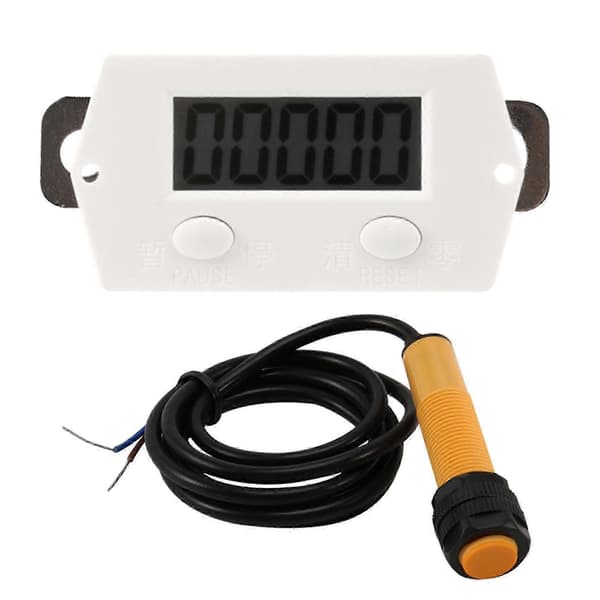

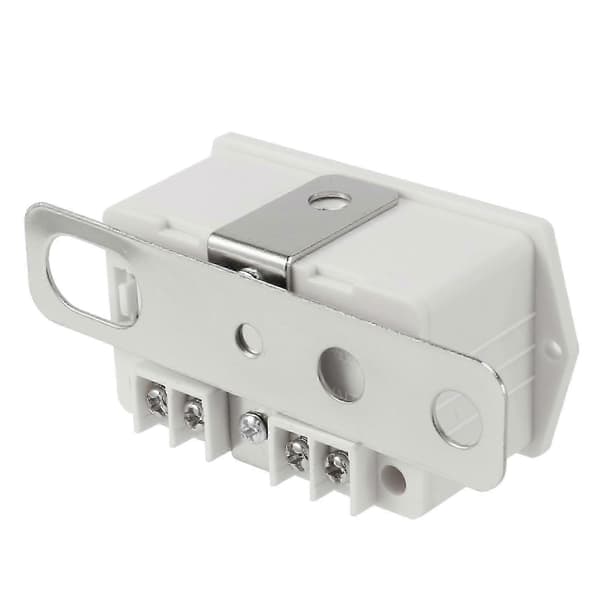

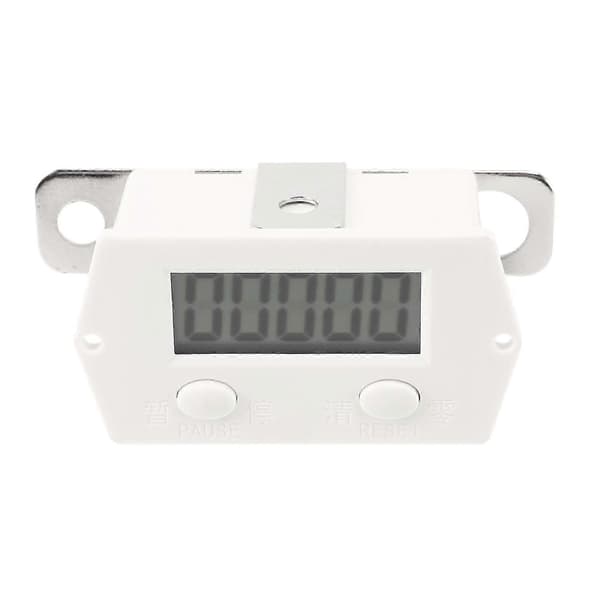

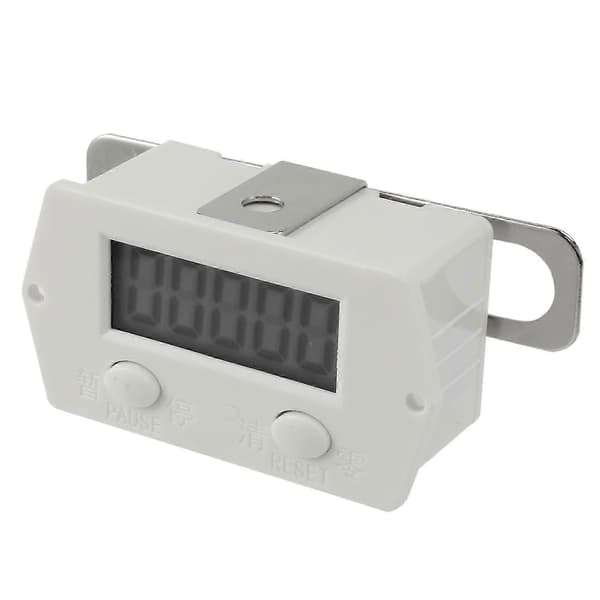

5-digit LCD accurate digital counter, comes with proximity sensor and magnet.

Power supply: AA 1.5V battery. Easy to install.

Measuring range: 0-99999, counting frequency: 20HZ

Built-in RESET button and PAUSE on the panel.

Widely used in automatic conveyor belt systems, winding machines, packaging machines, textile machines, milling machines.



5-digit large LCD screen, large and clear display

Uses standard AA 1.5V batteries, without external power supply, and battery replacement is convenient

PAUSE button, counting pause, then press the PAUSE button and resume counting

Input with standard contact signal, the choice of sensor is simple and convenient, accurate and reliable counting

Resettable zero: panel / external dual use

Seismic design, effectively prevents data loss

No mechanical wear, reliable work, long service life

Power: 1.5V AA cell (battery included)

Range: 0----99999

Reset minimum pulse width: 0.1s

Reset method: manual panel/external

Count maximum frequency: 20hz, or 20 times/s

Working temperature: -5--40C

Count minimum pulse width: 10ms

Proximity sensor: 2 wires, Length: 110mm, comes with magnet

Detection distance: 3-10mm

Maximum resistance when connection point is on: less than or equal to 10K

Minimum resistance when connection point is off: equal to 500K

Color: white

Material: Metal + plastic

Size: Panel: 72 * 38 * 31mm

Hole size: 63*35mm



Package contents:

1 * Digital 5-digit LCD punch counter

1 * bracket

1 * proximity sensor

1 * strong magnet



Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture to be slightly different from the real thing. The allowed measurement error is +/- 1-3 cm.
