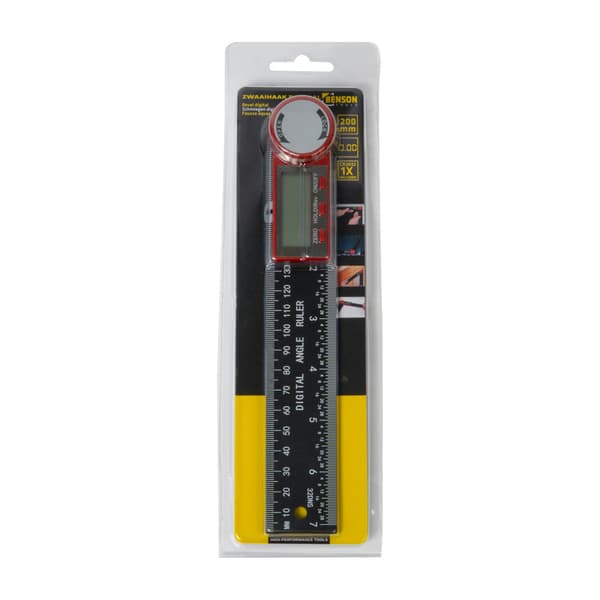

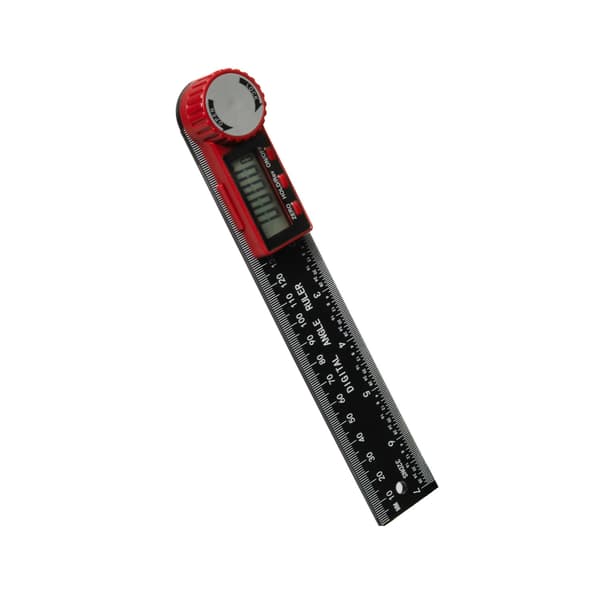

For accurate and easy transfer of corners._x000D_
Length 200 mm._x000D_
Measuring range 0 ° - 360 °._x000D_
Precision adjustment in steps of 0.1 °._x000D_
Accuracy of the electronic measurement ± 0.5 °._x000D_
Metric and inch graduation on both hooks._x000D_
Incl. battery CR2032._x000D_
_x000D_
Instructions for use:_x000D_
Insert the CR2032 battery._x000D_
Close both rulers completely and press the on/off/zero button until zero is displayed._x000D_

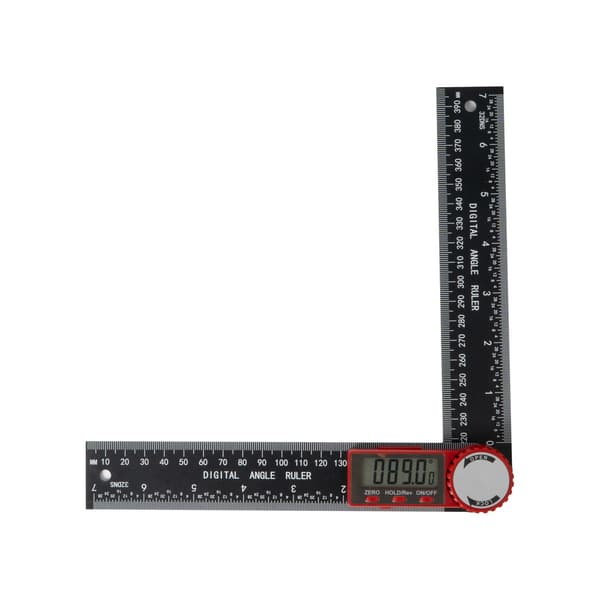

Hold the lower ruler while opening the upper ruler to measure the desired angle._x000D_
The angle measuring rulers can be locked by turning the large red knob. Always remove the lock before taking the next measurement._x000D_
Press the D / M button to change the decimal degrees (D °) on the display to degrees and minutes (M). 360 degrees = 60 minutes._x000D_
By pressing the HOLD button, the last measurement is saved on the LED display. Press the button again to cancel._x000D_
Briefly press the on/off/zero button to zero the display._x000D_
A long press of the on/off/zero button switches off the digital angle meter.
