The timer is suitable for all installations or devices with 12 V DC power supply.

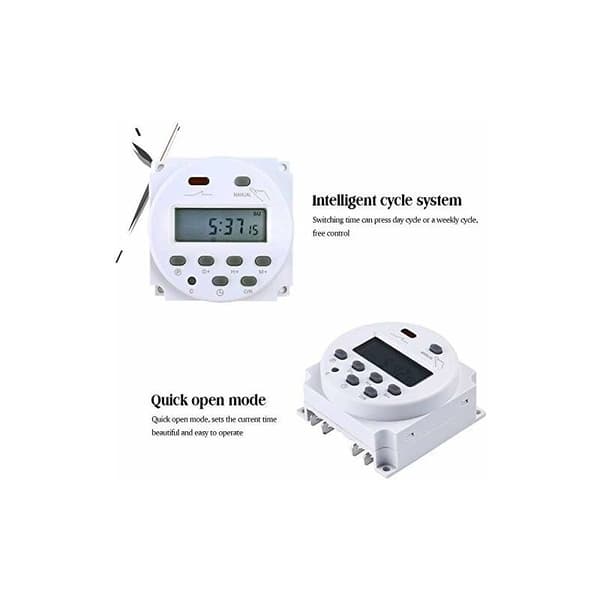

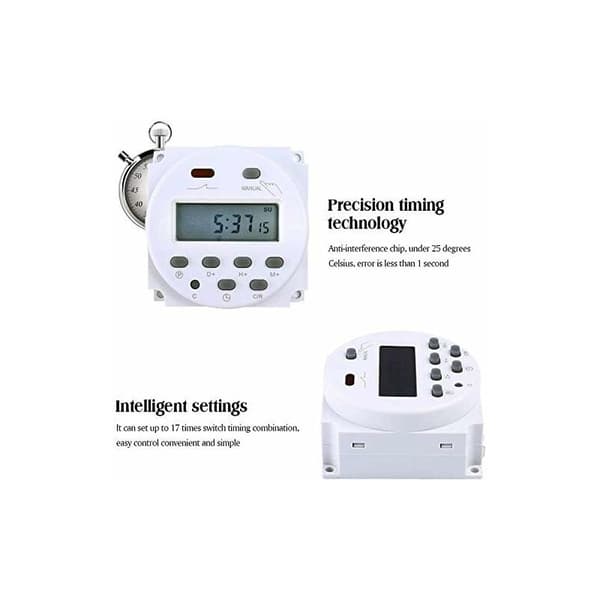

Advanced setting with a week in advance, digital electronic timer with daily and weekly programs, 15 program combinations daily schedule to choose from.

Repeat program with on/off setting 17

Favorable electronic timer.

Technical data:

voltage: 12V DC.

Amperage: 16 A.

Power consumption: less than 1 W.

Internal battery: 1.2 V/40 mA (rechargeable battery).

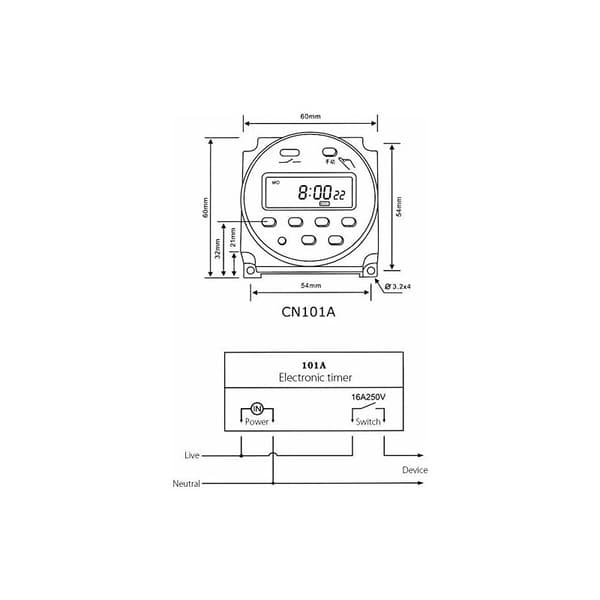

dimensions: 60 x 60 x 32mm.

Memory loss in case of power failure: 60 days.

Operating temperature: -10 to 40°C.

shorter switching. : 1 minute.

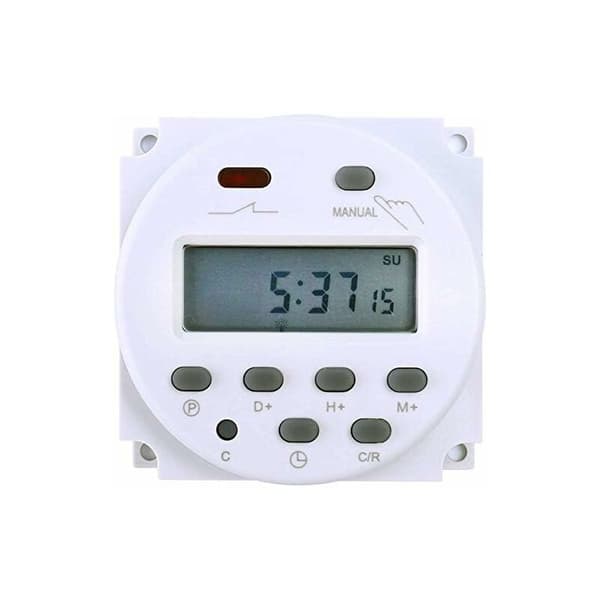

Push button: clock, stopwatch, day, H+ (hour), M+ (minute), manual control, reset.

Functions: With the digital timer, you can control the operation of your electrical appliances such as lamps, water heaters, boilers, sprayers, agricultural facilities, radio equipment, household appliances and much more.

voltage or be stolen.

Advanced setting with a week in advance, digital electronic timer with daily and weekly programs.

15. combinations of daily programs to choose from.

Repeat program with on/off setting 17.

Scope of delivery:

1 switching relay.

1 instruction manual (English language guarantee not guaranteed).
