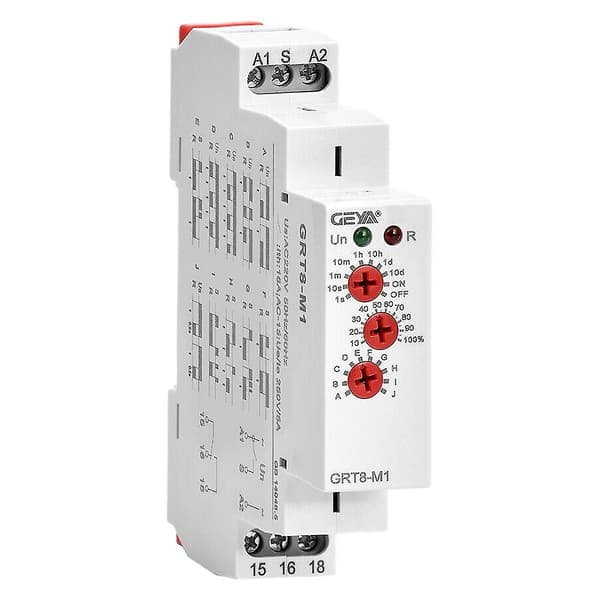

Applications: Multifunctional time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage).

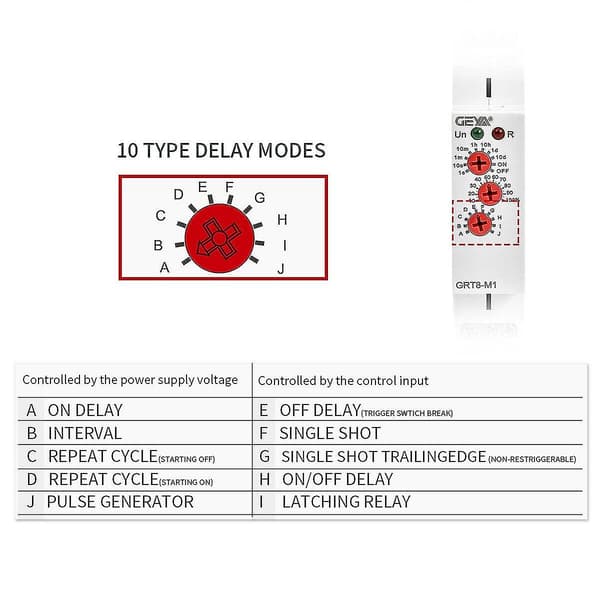

10 functions:

5 time functions controlled by supply voltage

4 time functions controlled by control input

1 latching relay function

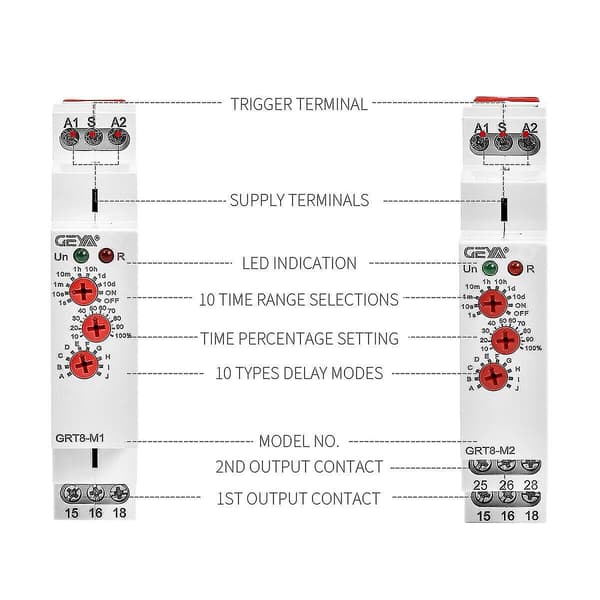

Convenient and well-organized function and time range setting with rotary switches.

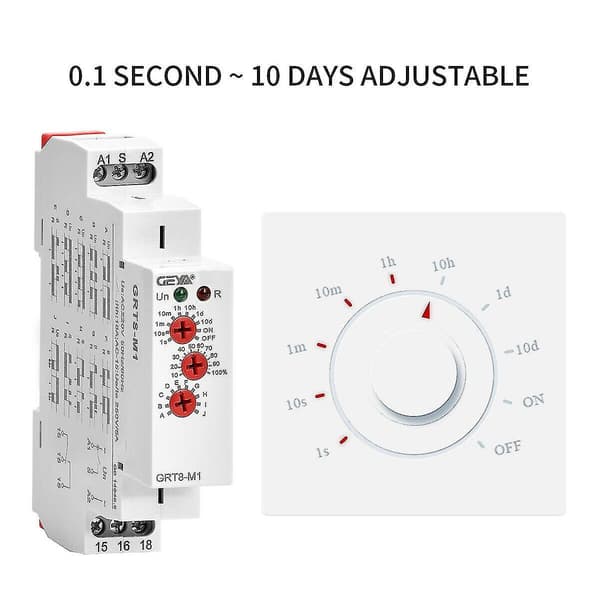

Time scale: 0.1s - 10 days divided into 10 ranges.

0.1-1s, 1-10s, 6-60s, 1-10min, 6-60min, 1-10hr, 0.1-1day, 1-10days, ON only, OFF only

Relay status is indicated by LED.

1-MODULE, DIN rail mounting.

color: White

Material: ABS

Package contents:

1 * Timer Relay

1 * DIN rail mounting

Only the above package content, other products are not included.

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
