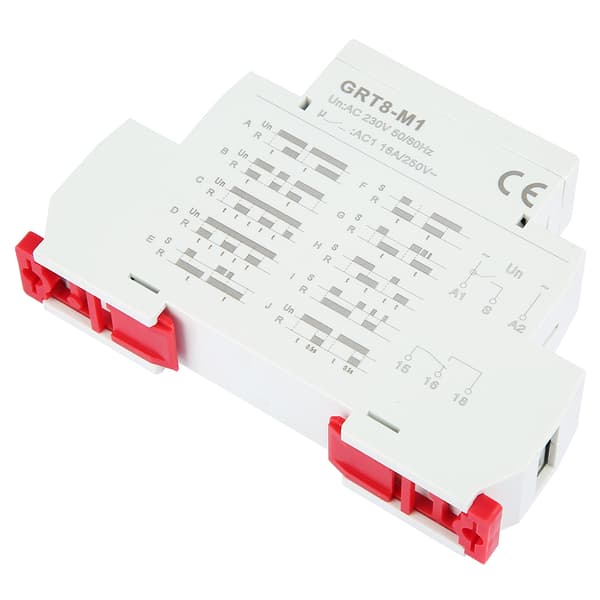

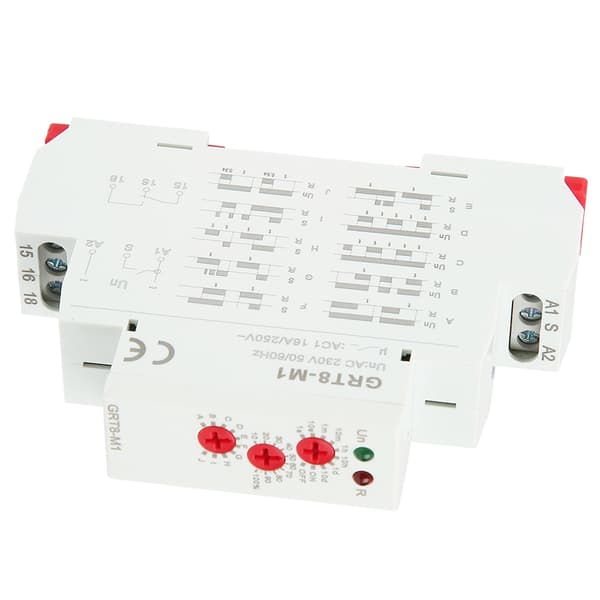

1. This is a multifunctional time relay and the time delay can be set by the panel knob.
2. With 10 types of delay functions including delay on, delay off, cycle delay and so on.
3. Super wide time delay range of 0.1s - 10 days.
4. The working status of the relay is indicated by LED indicators.
5. With super small volume, this relay can be mounted on a 35mm DIN rail.
Features:

1. This is a multifunctional time relay and the time delay can be set by the panel knob.

2. With 10 types of delay functions including delay on, delay off, cycle delay and so on.

3. Super wide time delay range of 0.1s - 10 days.

4. The working status of the relay is indicated by LED indicators.

5. With super small volume, this relay can be mounted on a 35mm DIN rail.

6. This time relay can be used for industrial equipment, lighting control, heating element control, motor, fan control and more.

Specification:

Rated voltage: AC 230V (50-60Hz)

Power terminal: A1-A2

Power consumption: AC Max 6VA/1.3W

Setting method: knob

Setting accuracy: 10%

Power indicator: Green LED

Delay range: 0.1s-10 days, normally open, normally closed

Repeat accuracy: 0.2%

Temperature fluctuation error: 0.05%/℃, at = 20

Output contact: 1 x SPDT, 250VAC/24VDC

Minimum switching current: 500mW

Output relay indication: red LED

Mechanical life: 1x107

Reset time: Max 200ms

Working temperature: -20℃~55℃

Mounting method: 35 mm DIN rail

Mounting height: ≤2000m

Weight: Approx. 75g/2.6oz

Package list:

1 x Multifunctional time relay
