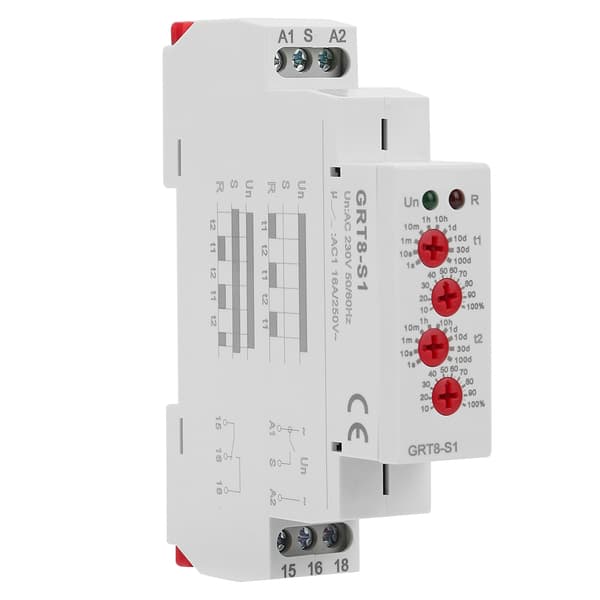

This cycle time relay offers precise and flexible timing control for a wide range of applications. The ON and OFF delay times are independent, allowing you to configure different delay times for each function. With an exceptionally wide delay range from 0.1 seconds to 100 days, selectable across 10 positions, you can customize the relay to suit various timing requirements. Switching between different operating modes is easily achieved by short-circuiting the S-A1 terminal. The relay's operating status is clearly indicated by LED indicators, with a green LED for power and a red LED for output relay status. Its compact design allows for convenient mounting on a standard 35mm DIN rail.

Features:

1. The time setting for delay ON and OFF is separated so you can set different delay times.

2. Super wide delay time range, 0.1 second - 100 days adjustable (10 selections).

3. Switch different working modes by shorting S-A1.

4. The relay's working status is indicated by LED indicators.

5. With small volume, this relay can be mounted on a 35mm DIN rail.

6. It is used for cycle delay control, providing periodic energization, lighting control, and heating control for electrical circuits.

Specification:

Model: GRT8-S1

Rated supply voltage: AC 230V (50-60Hz)

Power consumption: AC max. 6VA/1.3W

Delay time range: 0.1s-100days, NO, NC

Setting method: knob

Setting accuracy: 10%

Repeat accuracy: 0.2%

Temperature fluctuation error: 0.05%/℃, at = 20℃

Output contact: 1 x SPDT, 16A/AC1

Minimum switching power: 500mW

Power indicator: Green LED

Output relay indication: Red LED

Mechanical life: 1x10^7

Electrical life: 1x10^6

Reset time: Max 200ms

Working temperature: -20℃~55℃

Storage temperature: -35℃~75℃

Mounting method: 35mm DIN rail

Protection class: IP20

Cable capacity: 1x2.5mm^2 / 2x1.5mm^2

Dimensions: 90*18*64mm / 3.54*0.71*2.52in

Package weight: Approx. 75g/2.6oz

Package list:

1 * Cycle time relay
