Name: HC-12 SI4463 Wireless Serial Port Module 1000m with Spring Antenna 433.4—473.0MHz
SKU: HY-SY-082713682
Price: 230 SEK
Availability: InStock

230 kr

I lager

Ons, 9 sep - tis, 15 sep

30 dagars öppet köp

Inga avgifter tillkommer efter köpet

Betala direkt eller på faktura med Qliro

Produktbeskrivning

Welcome to our store!

1. Built-in program, no need to pay attention to serial protocol automatic network connection. 2. Supports one-to-many interconnections and transparent transmission. 3. Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power. 4. The module supports one-to-one, one-to-many, many-to-one, many-to-many connections. Four transparent transmission modes to suit different applications. 5. Built-in MCU, programming-free, communication with external devices via serial port.
Features:
r
r

r
Built-in program, no need to pay attention to serial protocol automatic network connection. r

r
Supports one-to-many interconnections and transparent transmission. r

r
The transmission distance in open environment is 1KM. r

r

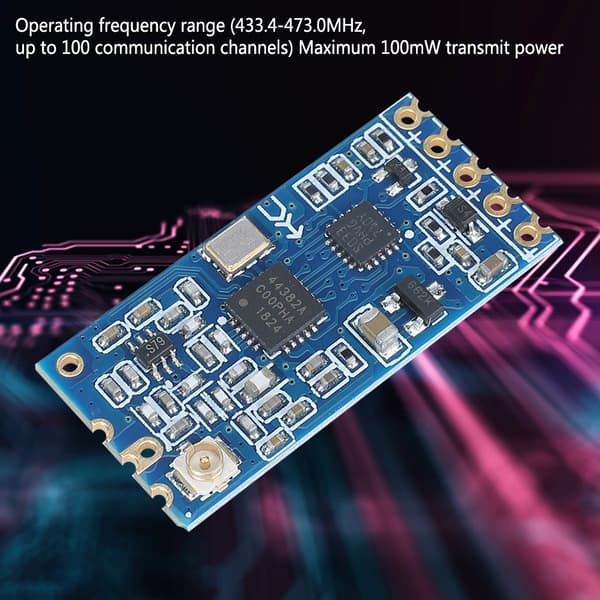

Operating frequency range (433.4-473.0MHz, up to 100 communication channels) Maximum 100mW transmit power. r

r
The module supports one-to-one, one-to-many, many-to-one, many-to-many connections. Four transparent transmission modes to suit different applications. r

r
Built-in MCU, programming-free, communication with external devices via serial port. r

r
Not limited to the number of bytes sent in a single transmission (FU1/FU3 mode). r

r
Standard factory setting: working mode FU3, baud rate 9600bps, communication channel CH001 (433.4M). r

r
r

r
Specification:
r
Voltage: 3.2~5.5V (If the module is to be in transmit state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid overheating of the module's built-in LDO.)
r
Distance: 600m (The maximum communication distance can be adjusted to 1000m and the air speed is 5000bps)
r
Standard standby current: 16mA (The module's operating current differs in different operating modes)
r
Size: 27.8 * 14.4 * 4mm / 1.09 * 0.57 * 0.16in
r
Operating frequency: 433.4~473.0MHz
r
Maximum transmit power: 100mW
r

r
Package List:
r
1*Module
r

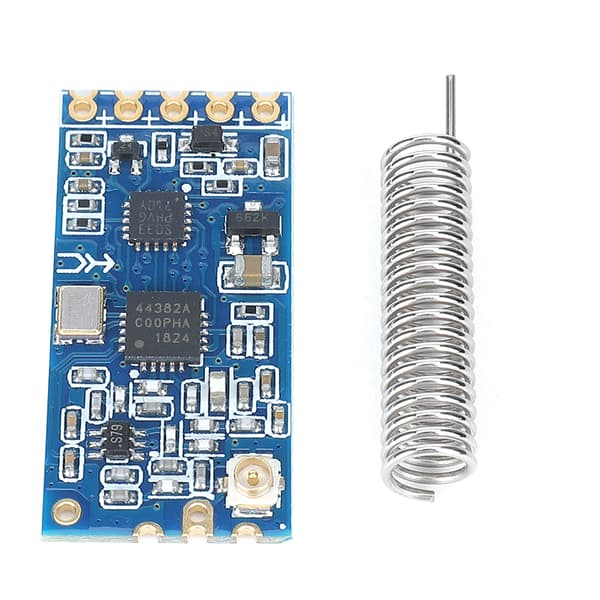

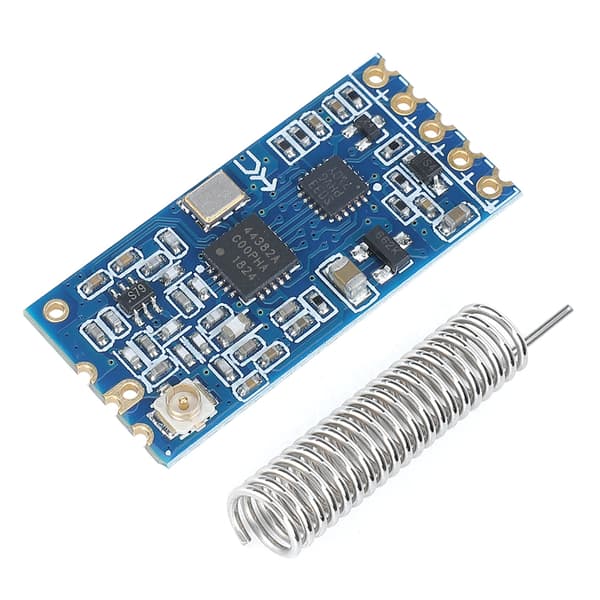

1*Spring antenna
r
