Features
1. LONG TRANSMISSION DISTANCE: The HD Multimedia Interface extender transmits signals up to 120m over CAT6 CAT7 cables. Remotely control your mouse and keyboard with KVM extensions. Supports HD Multimedia Interface 2.0, 1.4, 1.3b, HDCP 1.2, 3D.
2. 4K AT 30 HZ FHD: The HD Multimedia Interface KVM extender supports 4K at 30 Hz FHD. Lossless audio and video transmission, sending HD Multimedia Interface signals to remote monitors as smoothly as if they were direct connections.
3. EASY TO USE: The 4K HD Multimedia Interface extender supports 3D and LPCM, for Dolby AC3, DTS7.1, for DSD for Dolby for DTS HD master sound. Just connect the power adapter to the transmitter and it will power up the device.
4. COMPATIBLE DEVICES: Single channel network extender is compatible with HD Multimedia Interface devices such as PC, TV, for Fire TV, Ultra Projector, for Xbox, HD Multimedia Interface LCD displays, cable boxes, DVD players, STBs and more.
5. APPLICABLE SCOPE: The 4K HD Multimedia Interface KVM extender is mostly used in audiovisual conferences, command and control centers, ticketing platforms, home theater systems, multimedia teaching, conference systems, etc.
SpecificationItem Type: HD Multimedia Interface Extender
Material: Aluminum Alloy
Plug Voltage: 100-240V
HD Multimedia Interface Input: 4K 1080p 1080i 720p 576p 576i 480p 480i
HD Multimedia Interface Output: 4K 1080p 1080i 720p 576p 576i 480p 480i
HD Multimedia Interface Cable Distance Input: 10m AWG26 HD Multimedia Interface standard cable
HD Multimedia Interface Cable Distance Output: 10m AWG26 HD Multimedia Interface standard cable
Video Input Signal: 0.5-1.5 volts Pp
Output DDC Signal: 5 volts Pp (TTL)
Maximum Transmission Bandwidth: 340 mhz
Maximum Transmission Rate: 3x3.4 Gbps
Maximum Operating Current: 300 mA

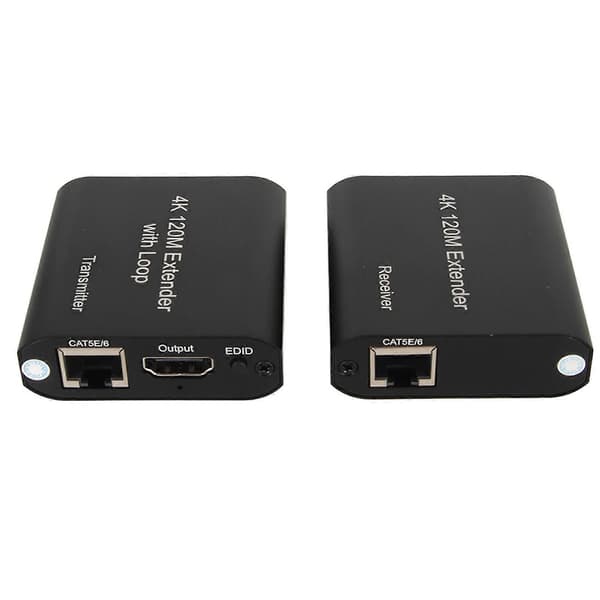

Package List
1 x Receiver
1 x Transmitter
2 x Power Adapter
1 x User Manual
